Omron CJ1W-OD232

Overview

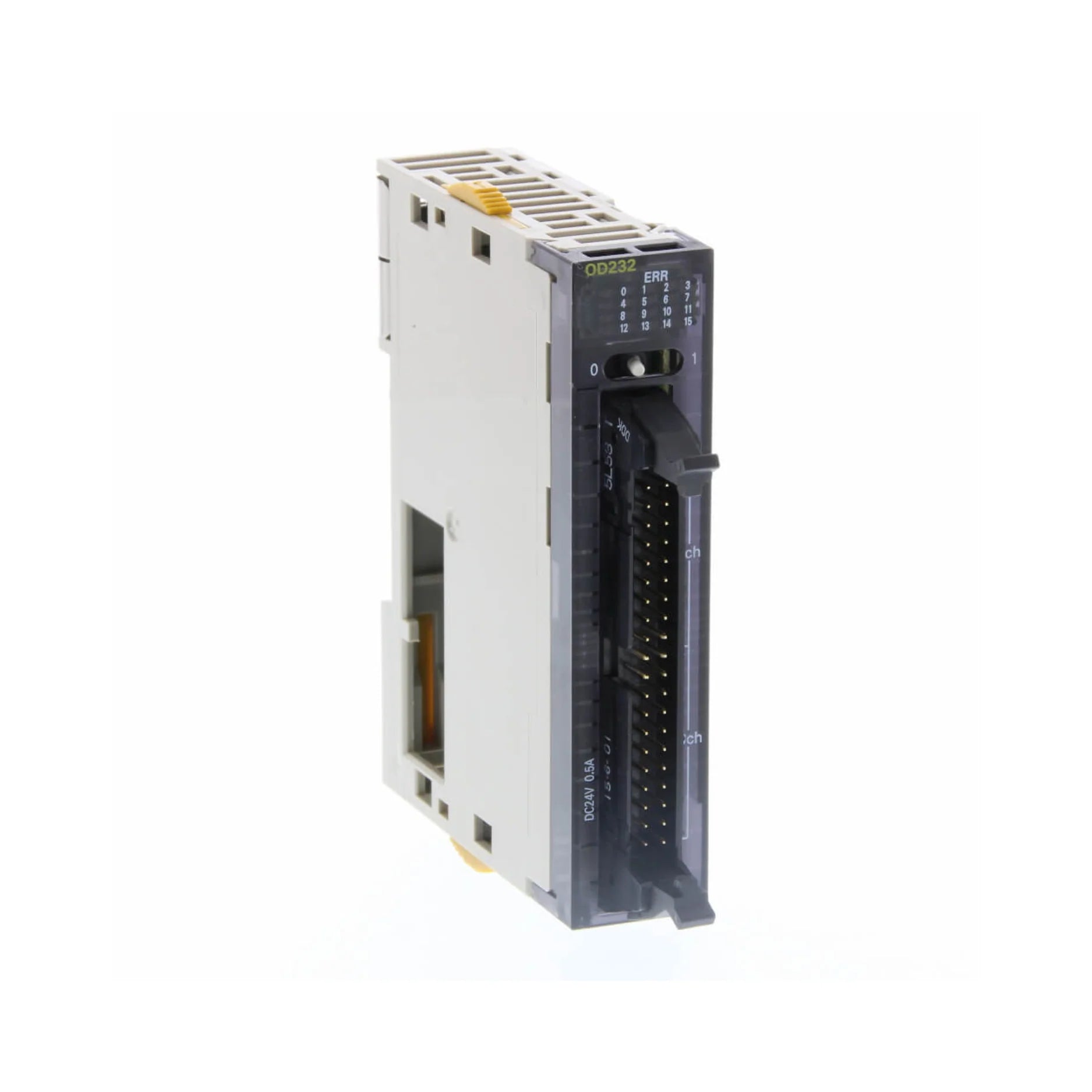

Elevate your industrial automation capabilities with the Omron CJ1W-OD232, a high-density NPN digital output unit meticulously engineered for seamless integration with the Omron CJ-series PLC platform. This robust unit provides 32 NPN transistor (sinking) outputs, making it an indispensable component for applications requiring precise and rapid control of various external devices. From solenoids and lamps to motors and buzzers, the CJ1W-OD232 delivers reliable performance and exceptional versatility. Its compact design is a significant advantage, optimizing panel space in control cabinets where every inch counts, while its high-speed switching capabilities ensure real-time response for critical control signals. Engineered for efficiency and built for endurance, this module simplifies complex wiring and enhances the overall reliability of your automated systems.

Key Features

• Output Type: NPN transistor (sinking) for versatile device compatibility.
• Number of Outputs: 32 points, offering high-density control for numerous devices.
• Voltage Range: Supports 12–24 VDC, suitable for a wide array of industrial applications.
• Max Output Current: 0.3 A per point and 4 A per common, ensuring robust power delivery.
• High-Speed Switching: Enables swift and precise control signals, ideal for dynamic processes.
• Built-in Indicators: Individual LED for each output channel to facilitate quick diagnostics and status monitoring.
• Terminal Block: Detachable design for simplified installation, wiring, and maintenance procedures.
• Compact Width: Maximizes space utilization within crowded control cabinets and enclosures.
• Compatibility: Fully compatible with Omron CJ1, CJ2, and CPU units supporting expansion I/O, ensuring effortless system expansion.

Technical Specifications

• Model: CJ1W-OD232
• Output Type: NPN (open collector)
• Output Voltage: 12–24 VDC
• Rated Current: 0.3 A/point, 4 A/common
• Response Time: ON: 0.5 ms / OFF: 0.5 ms
• Isolation: Photocoupler between output and internal circuit for enhanced safety and noise reduction.
• Power Consumption: 0.9 W max
• External Power Supply: 20.4–26.4 VDC
• Operating Temperature: 0°C to +55°C
• Mounting: Designed for DIN rail mounting (utilizing the CJ-series backplane).
• Dimensions: 31 × 89 × 65 mm (Width × Height × Depth)
• Weight: Approximately 160 g

Applications

The Omron CJ1W-OD232 digital output unit is engineered for diverse industrial applications, providing reliable control in various demanding environments. Its versatility makes it an ideal choice for:

• Solenoid and Valve Actuation: Precise control for pneumatic and hydraulic systems.
• Lamp and Buzzer Control: Effective visual and audible indication in control panels and machinery.
• Conveyor Motor Start/Stop: Reliable operation of conveyor systems in manufacturing and logistics.
• Digital Output Expansion: Seamlessly extend the output capabilities of existing PLC systems.
• OEM Equipment Panels: An excellent component for original equipment manufacturers seeking compact and high-performance output solutions.

Why Choose This Model?

The Omron CJ1W-OD232 stands out as a superior choice for your automation needs due to a combination of cutting-edge features and robust design:

• High-Density Output: Consolidate your control outputs with 32 points in a single module, significantly reducing the number of modules required and saving valuable cabinet space.
• Fast Switching Capability: With rapid ON/OFF response times of 0.5 ms, this unit is perfectly suited for real-time control systems where speed and precision are paramount.
• NPN Transistor Outputs: Offers broad compatibility with a vast array of standard industrial devices, simplifying integration and expanding your control possibilities.
• Easy Integration: Effortlessly integrates into your existing Omron CJ-series PLC architecture, ensuring a smooth setup process and cohesive system operation.
• Reliability and Durability: Built with Omron's renowned quality, featuring robust isolation and a wide operating temperature range for consistent performance in challenging industrial conditions.
• Simplified Maintenance: The detachable terminal block and individual LED indicators streamline installation, troubleshooting, and ongoing maintenance.
