Omron CJ1W-ID261

Overview

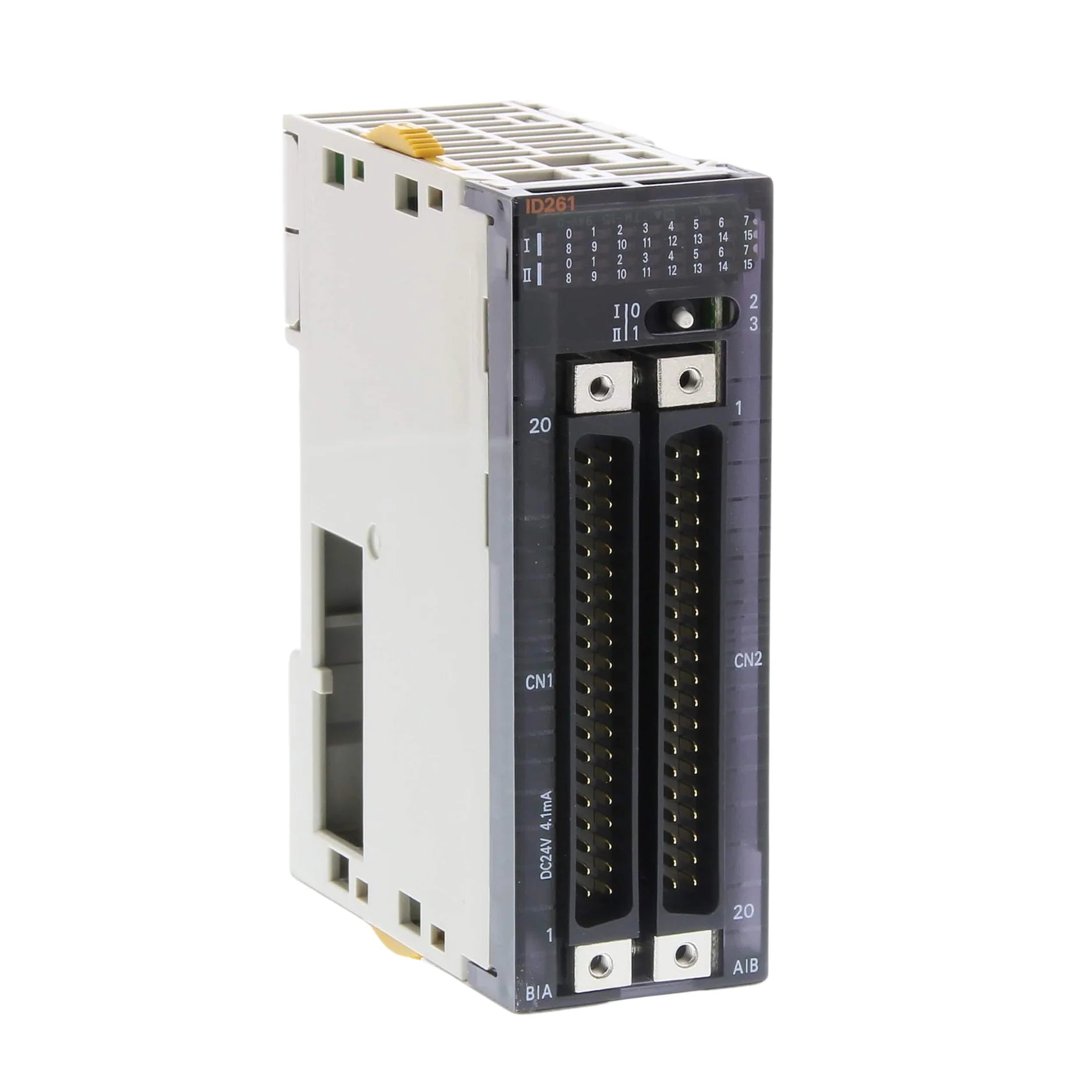

The Omron CJ1W-ID261 is a high-performance 64-channel digital input module meticulously engineered for seamless integration with Omron's acclaimed CJ-Series Programmable Logic Controllers (PLCs). This robust module is specifically designed to meet the demands of advanced industrial automation applications, providing exceptional signal processing capabilities within a remarkably compact footprint. Accepting standard 24 VDC input signals and featuring a precise 5.6 kΩ input impedance, the CJ1W-ID261 is the ideal solution for high-density input requirements, ensuring reliable and efficient data acquisition in complex control systems. Its advanced features contribute to a streamlined and optimized automation environment.

Key Features

• High-Density Input Capacity: Boasting 64 digital input channels, this module facilitates comprehensive signal processing, enabling extensive monitoring and control within a single, space-saving unit. This high channel count significantly reduces the complexity and footprint of your control panel.
• Standardized Input Voltage: The module operates with a widely compatible 24 VDC input signal, ensuring effortless integration with a diverse array of industrial sensors, switches, and other field devices commonly found in modern automation setups.
• Configurable Response Time: While offering a swift default response time of 8.0 ms, the CJ1W-ID261 provides unparalleled flexibility with an adjustable response time range from 0 to 32 ms. This critical feature allows for fine-tuning to precisely match the unique demands of various application requirements, optimizing system performance and responsiveness.
• Versatile Input Type Compatibility: Engineered for maximum adaptability, the module is compatible with both PNP and NPN input devices. This broad compatibility offers significant versatility in system design, allowing engineers to select the most appropriate sensors and devices without compatibility concerns.
• Compact and Efficient Design: With dimensions of just 90 mm (H) × 31 mm (W) × 66.5 mm (D), the CJ1W-ID261 is designed to conserve valuable space within industrial control panels. This compact form factor contributes to more efficient panel layouts and reduced overall system size.
• Optimized Connector Interface: Utilizing industry-standard Fujitsu/OTAX connectors (please note: connectors are not included), this module promotes organized, secure, and highly reliable wiring connections, simplifying installation and maintenance procedures.

Technical Specifications

• Model Number: CJ1W-ID261
• Number of Inputs: 64
• Rated Input Voltage: 24 VDC
• Input Voltage Range: 20.4 to 26.4 VDC
• Input Impedance: 5.6 kΩ
• Input Current: 4.1 mA typical at 24 VDC
• ON Voltage/Current: 19.0 VDC min. / 3 mA min.
• OFF Voltage/Current: 5 VDC max. / 1 mA max.
• Response Time: 8.0 ms max. (adjustable between 0 to 32 ms)
• Number of Circuits: 64 (16 points/common, 4 circuits)
• Simultaneously ON Points: 50% (16 points/common) simultaneously ON at 24 VDC
• Internal Current Consumption: 90 mA max. at 5 VDC
• Mounting Method: DIN rail
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -20°C to 75°C
• Operating Humidity Range: 10% to 90% (non-condensing)
• Dimensions: 90 mm (H) × 31 mm (W) × 66.5 mm (D)
• Weight: Approximately 100 g
• Certifications: CE, cULus, Lloyd, NK

Applications

• Advanced Industrial Automation: Seamlessly integrates a multitude of digital input signals from a wide array of sensors, limit switches, push buttons, and other discrete devices directly into Omron CJ-Series PLCs, forming the backbone of sophisticated automation systems.
• Precision Process Monitoring: Enables real-time, comprehensive monitoring and precise control over various industrial processes by accurately capturing and processing numerous input signals, ensuring operational stability and efficiency.
• Complex Machine Control: Essential for supporting intricate machine operations in manufacturing and assembly lines by efficiently processing a high volume of input signals from actuators, interlocks, and safety devices, facilitating complex sequential control and interlocking.
• Safety System Integration: Can be utilized in conjunction with safety relays and components to monitor critical safety inputs, contributing to the overall safety architecture of industrial machinery and processes.

Why Choose This Model?

Opting for the Omron CJ1W-ID261 64-Channel Digital Input Module offers a multitude of compelling advantages that set it apart in the industrial automation landscape:

• Unmatched High Input Capacity: Provides a substantial number of input channels within a single, highly efficient module, dramatically reducing the necessity for multiple input units and simplifying system architecture.
• Superior Adjustable Response Time: The ability to customize response times from 0 to 32 ms allows for unparalleled adaptability, ensuring the module perfectly matches the specific timing requirements of even the most demanding applications, thus enhancing overall system performance and precision.
• Unrivaled Versatile Compatibility: Native support for both PNP and NPN input types provides exceptional flexibility in connecting to a wide variety of industrial field devices, streamlining integration and reducing potential compatibility challenges.
• Guaranteed Reliable Integration: Meticulously designed and manufactured by Omron, this module guarantees seamless and reliable operation exclusively with Omron CJ-Series PLCs, assuring system compatibility, robustness, and long-term stability.
• Intelligent Space-Efficient Design: Its compact form factor is a significant advantage, aiding in the conservation of invaluable space within crowded industrial control panels, leading to more organized, efficient, and cost-effective installations.
• Omron Quality and Support: Backed by Omron's world-renowned reputation for quality, innovation, and global technical support, ensuring peace of mind and operational excellence.

Order Now

Elevate your industrial automation capabilities today with the Omron CJ1W-ID261 64-Channel Digital Input Module. Available for immediate shipping worldwide, this high-performance module is ready to integrate seamlessly into your CJ-Series PLC system. Contact us now to secure your order and experience the difference that superior input density and configurable flexibility can make to your operations.
