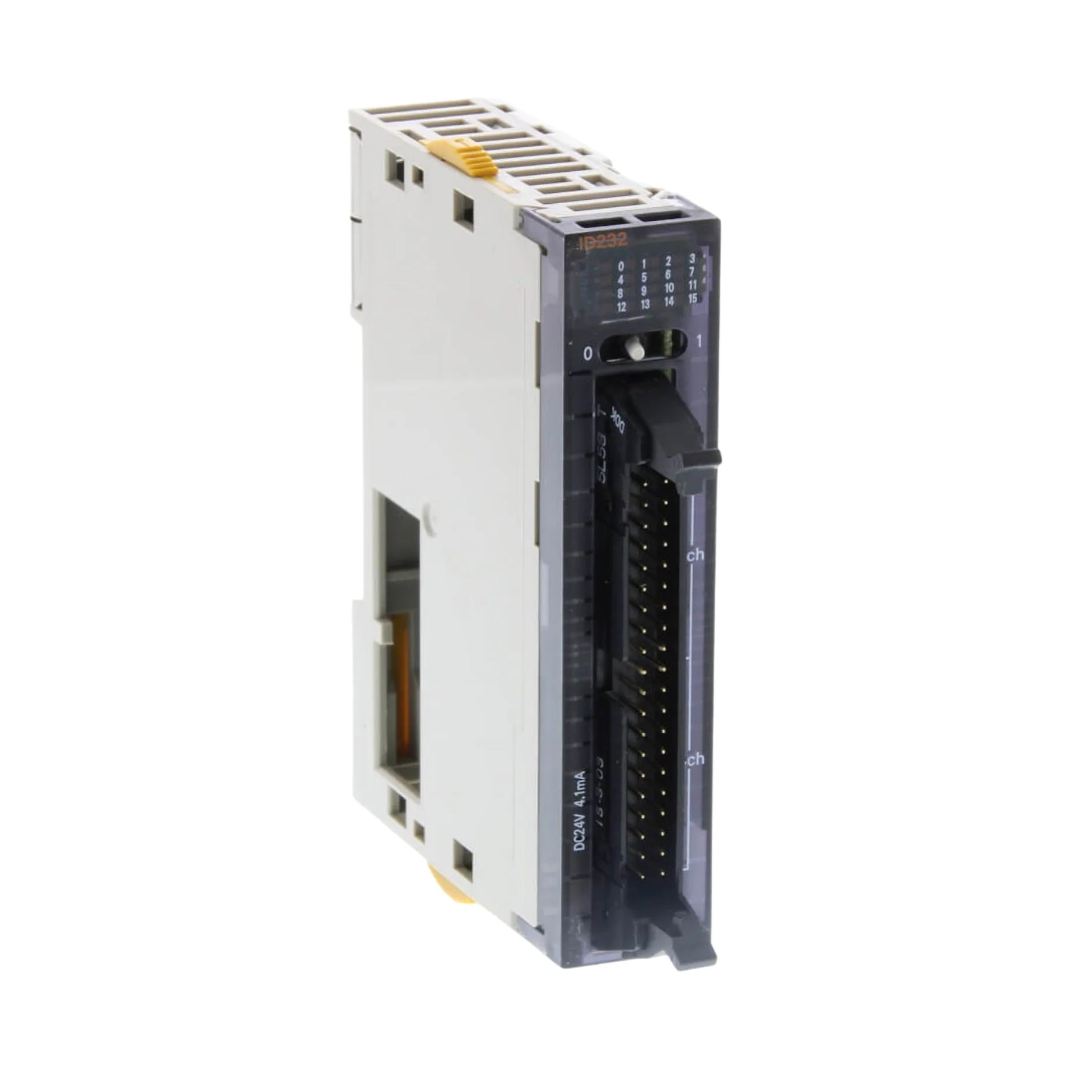

Omron CJ1W-ID232

Overview

Elevate the input capabilities of your Omron CJ-Series Programmable Logic Controller (PLC) with the high-performance Omron CJ1W-ID232. This robust 32-point 24V DC input unit is meticulously engineered to provide expanded signal integration, making it an indispensable component for a wide array of industrial automation applications. Designed for seamless compatibility and reliable operation, the CJ1W-ID232 streamlines wiring processes through its efficient MIL connector interface, ensuring an organized and secure connection environment. Its ability to accommodate diverse input signals positions it as a versatile solution for enhancing control and monitoring systems across various industrial sectors.

Key Features

• Expansive Input Capacity: Boasts 32 individual input points, thoughtfully arranged into 2 circuits with 16 points per common, allowing for comprehensive signal integration.
• Optimized Input Voltage: Operates at a standard 24V DC, perfectly suited for typical industrial signal levels, ensuring broad compatibility.
• Efficient Power Consumption: Features a low input current of 4.1 mA typical at 24V DC, contributing to energy efficiency in your control systems.
• Stable Signal Reception: Equipped with an input impedance of 5.6 kΩ, guaranteeing stable and reliable reception of input signals even in demanding environments.
• Configurable Response Time: Offers flexible response times adjustable from 0 to 32 ms, with a factory default setting of 8.0 ms for both ON and OFF responses, enabling fine-tuning for specific application requirements.
• Streamlined Connectivity: Integrates a MIL connector for simplified, secure, and highly organized wiring, reducing installation time and potential errors.
• Space-Saving Design: Its compact dimensions of 31 mm (W) × 90 mm (H) × 65 mm (D) are ideal for optimizing valuable control panel space, facilitating high-density installations.
• Lightweight Construction: Weighing approximately 70 g, this unit ensures easy handling and installation without adding significant strain to your mounting infrastructure.

Technical Specifications

• Model Number: CJ1W-ID232
• Series: CJ-Series
• Rated Input Voltage Range: 20.4 to 26.4 VDC
• ON Voltage/Current: 19.0 VDC minimum / 3 mA minimum
• OFF Voltage/Current: 5.0 VDC maximum / 1 mA maximum
• Internal Current Consumption: 90 mA maximum at 5 VDC
• Insulation Resistance: 20 MΩ minimum between external terminals and the GR terminal at 100 VDC
• Dielectric Strength: 1,000 VAC between external terminals and the GR terminal for 1 minute with a leakage current of 10 mA maximum
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -20°C to +75°C
• Operating Humidity: 10% to 90% (non-condensing)
• Mounting Method: Direct mounting onto CJ-Series PLC racks
• Certifications: CE, cULus, Lloyd, NK

Applications

• Industrial Automation: Broaden your PLC's monitoring capabilities by effortlessly integrating a multitude of sensors and switches, crucial for modern manufacturing processes and factory automation.
• Process Control Systems: Enable sophisticated and comprehensive process monitoring by facilitating the integration of numerous input signals, ensuring precise control over critical operations.
• Building Automation: Enhance the intelligence of your building management systems by accommodating additional input devices for HVAC, lighting, security, and access control systems, optimizing building efficiency and comfort.
• Material Handling: Support the seamless connection of diverse sensors and input devices within complex conveyor, sorting, and robotic material handling systems, crucial for logistics and warehousing.

Why Choose This Model?

The Omron CJ1W-ID232 stands out as a superior choice for expanding your PLC's input capabilities due to several compelling reasons. Its generous 32-point input capacity allows for extensive signal integration, providing the flexibility needed for complex industrial setups. The unit's flexible response time, adjustable from 0 to 32 ms, empowers users to fine-tune performance to exact application requirements, ensuring optimal system responsiveness. Engineered for unwavering reliability, the CJ1W-ID232 is built to meet stringent industrial standards, guaranteeing dependable operation even in the most challenging environments. Furthermore, its seamless integration with Omron CJ-Series PLCs ensures a straightforward and efficient system expansion, minimizing downtime and maximizing productivity. Choose the CJ1W-ID232 for a robust, flexible, and reliable solution to your industrial input needs.
