Omron CJ1W-EIP21

Overview

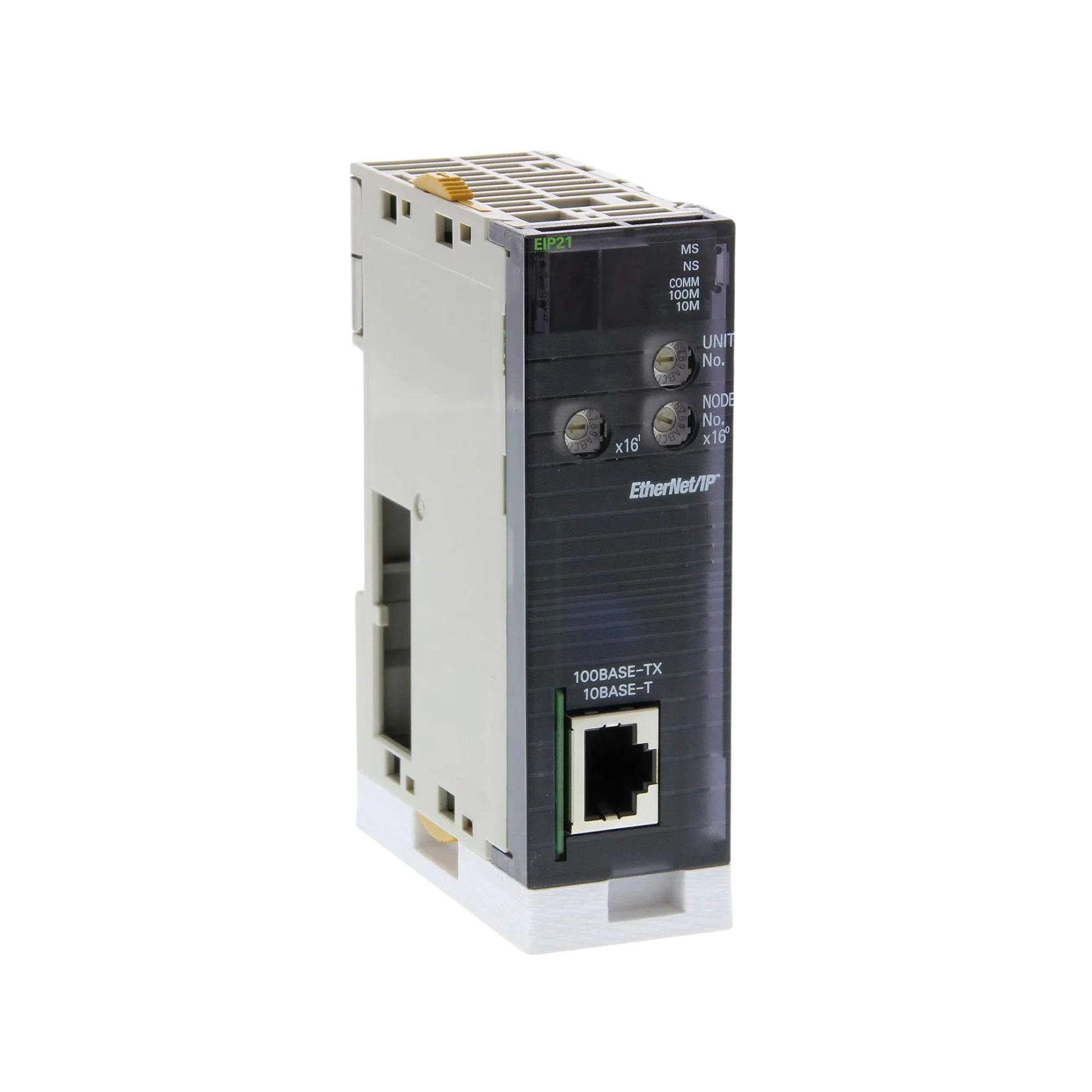

The Omron CJ1W-EIP21 is an advanced EtherNet/IP communication module specifically engineered for the Omron CJ Series PLCs. This robust unit facilitates high-speed, real-time data exchange across industrial Ethernet networks, making it an indispensable component for modern automation systems. With support for 100Base-TX Ethernet and Tag Data Link (TDL) functions, it ensures seamless integration and efficient data flow between Omron and compatible third-party devices. Its versatile design supports various network topologies, offering flexibility and reliability in diverse industrial environments. The CJ1W-EIP21 empowers your control systems with enhanced connectivity and streamlined communication capabilities.

Key Features

• EtherNet/IP Connectivity: Provides industrial communication through high-speed 100Base-TX Ethernet.
• Tag Data Links: Supports up to 256 connections for efficient cyclic data exchange, optimizing network performance.
• Multiple Sockets: Features 2 sockets dedicated for TCP/UDP communication and 2 separate sockets for Tag Data Link, enabling versatile communication protocols.
• Flexible Topology Support: Compatible with star, line, and ring network configurations when used with appropriate switches, offering adaptable system design.
• Built-in Web Server: Simplifies diagnostics and configuration management, allowing for quick and easy troubleshooting.
• MAC Address Label: A physical label on the unit provides the MAC address, streamlining identification and management on complex Ethernet networks.
• DIN Rail Mount: Designed for easy and secure integration into standard control panels, saving installation time and effort.

Technical Specifications

• Model Number: CJ1W-EIP21
• Series: CJ Series
• Communication Interface: EtherNet/IP (100Base-TX)
• Connector: RJ45
• Maximum Number of Tag Data Links: 256
• Total Link Points: 7168
• Sockets Available:
  • 2 for Tag Data Link
  • 2 for TCP/UDP communication
• Protocol Support: EtherNet/IP, TCP/IP, UDP/IP, FTP, HTTP
• IP Address Setting: Configurable via rotary switches or software for flexible network setup.
• Current Consumption: 400 mA max at 5V DC
• Operating Temperature: 0°C to +55°C
• Dimensions: 90 mm (H) × 31 mm (W) × 89 mm (D)
• Weight: Approximately 130 g
• Certifications: CE, cULus, RoHS, ensuring compliance with international safety and environmental standards.

Applications

• Industrial Networking: Ideal for seamlessly connecting PLCs, Human Machine Interfaces (HMIs), sensors, and motor drives within a unified, high-performance Ethernet network.
• Remote I/O Systems: Enables efficient and reliable exchange of real-time data for distributed I/O applications over EtherNet/IP.
• SCADA & MES Integration: Facilitates robust communication with Supervisory Control and Data Acquisition (SCADA) and Manufacturing Execution Systems (MES) for enhanced plant-wide control and data analysis.
• OEM Machine Control: Supports the development of modular and networked machine architectures, providing scalable and flexible communication solutions for Original Equipment Manufacturers.

Why Choose This Model?

The Omron CJ1W-EIP21 stands out as a superior choice for enhancing your industrial automation infrastructure. Its high-performance capabilities ensure real-time data handling, which is critical for time-sensitive applications where precision and speed are paramount. Designed for seamless integration, this module is not only perfectly compatible with Omron CJ Series PLCs but also offers interoperability with a wide range of other EtherNet/IP-enabled devices, maximizing your system’s potential. Its flexible networking features, including support for various topologies and advanced diagnostic tools, provide robust and adaptable solutions for complex industrial environments. Furthermore, the CJ1W-EIP21 is engineered for reliable communication, guaranteeing consistent and stable Ethernet-based automation, minimizing downtime, and optimizing operational efficiency. Choose the CJ1W-EIP21 for a powerful, dependable, and future-proof communication solution.

Order Now

The Omron CJ1W-EIP21 EtherNet/IP Communication Module is currently in stock and available for immediate dispatch. Benefit from our fast and reliable worldwide shipping services. Enhance your industrial control systems today by adding this essential component to your automation toolkit.
