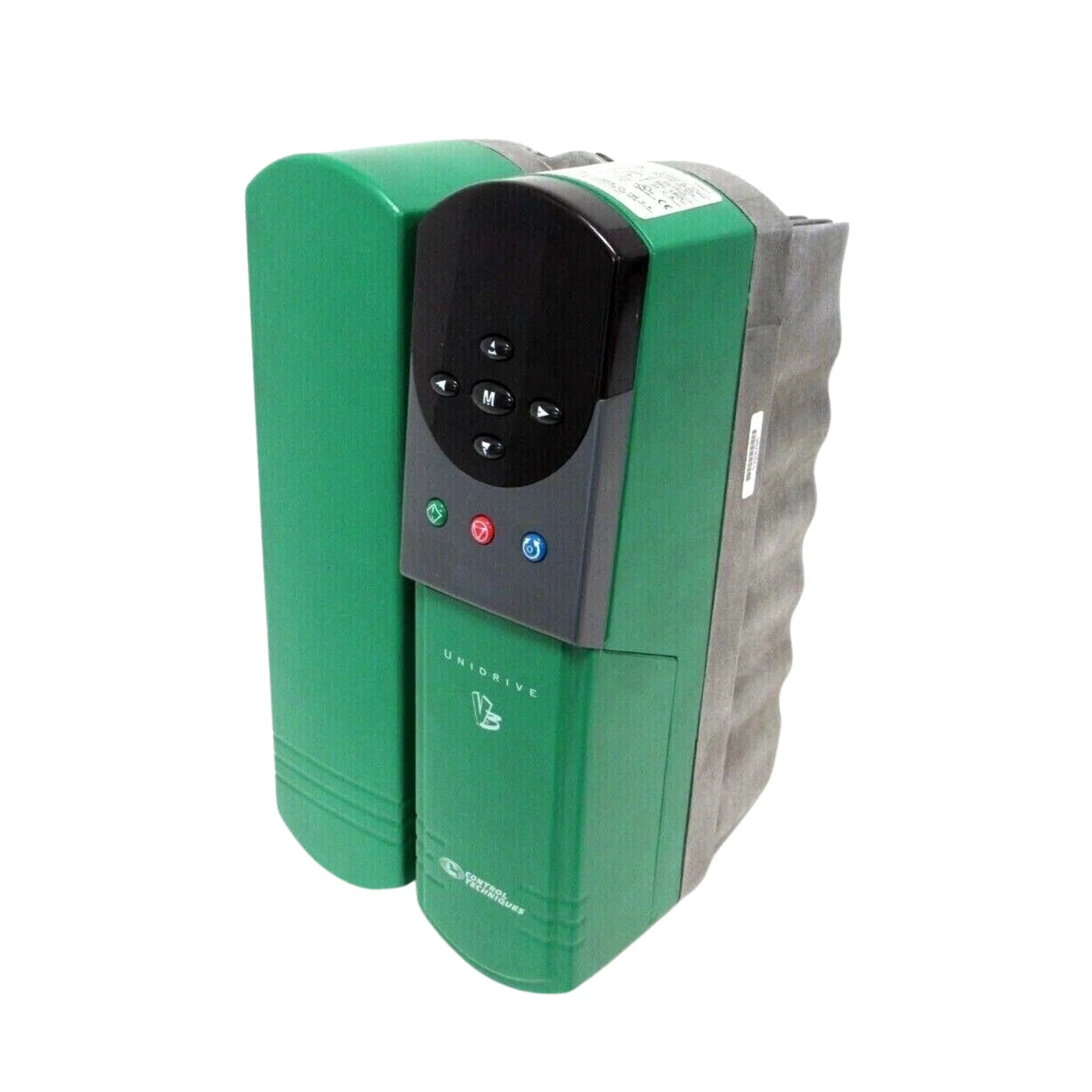

Control Techniques UNI2403

Overview

The Nidec Control Techniques UNI2403 is a high-performance AC drive from the renowned Unidrive series, engineered to deliver exceptional motor control for a wide array of industrial applications. This robust unit provides 11 kW (15 HP) of power with a 24.3 A output current, making it suitable for demanding 3-phase systems operating at 380–480 V. Its compact and modular design ensures seamless integration into existing setups, while advanced control technologies, including V/f (Volts per Hertz) and vector control, guarantee precise and efficient operation. Designed with a focus on reliability, flexibility, and energy efficiency, the UNI2403 is an ideal solution for optimizing the performance of motor-driven systems across diverse industries. With its comprehensive feature set, this drive simplifies installation and maintenance while offering superior control capabilities.

Key Features

• High Power Output: Delivers 11 kW (15 HP) of continuous power to handle strenuous industrial loads.
• Optimized Current Rating: Features a rated output current of 24.3 A, ensuring stable and reliable motor operation.
• Wide Input Voltage Range: Compatible with 3-phase systems from 380–480 V AC ±10%, accommodating various power supplies.
• Flexible Frequency Support: Operates efficiently with 50/60 Hz input frequencies.
• Advanced Control Modes: Offers versatile control options including V/f (Volts per Hertz), open-loop vector, closed-loop vector, and brushless servo for precise motor management.
• Robust Enclosure: Housed in an IP20-rated enclosure, suitable for panel or DIN-rail mounting, ensuring protection in industrial environments.
• Expandable Architecture: Equipped with expansion slots for seamless integration of I/O, feedback, and communication modules, enhancing adaptability.
• Integrated Diagnostics: Features built-in trip history and fault monitoring for proactive maintenance and rapid troubleshooting.
• Wide Output Frequency: Provides an output frequency range of 0–400 Hz for flexible motor speed control.

Technical Specifications

• Model: UNI2403
• Power Output: 11 kW / 15 HP
• Rated Current: 24.3 A
• Input Voltage: 380–480 V AC ±10%, 3-phase
• Input Frequency: 50/60 Hz
• Output Frequency Range: 0–400 Hz
• Control Modes: V/f, Open-loop vector, Closed-loop vector, Brushless servo
• Enclosure Rating: IP20
• Mounting Options: Panel or DIN-rail mountable
• Expansion Slots: Yes (for I/O, feedback, communication modules)
• Diagnostics: Built-in trip history and fault monitoring
• Operating Temperature: 0 °C to +40 °C (derated above 40°C)
• Cooling: Integrated fan
• Humidity: 5%–95% non-condensing
• Chassis: Compact for space-constrained panels

Applications

The Control Techniques UNI2403 AC drive is engineered for versatility and is an ideal solution for optimizing performance across a broad spectrum of industrial applications. Its robust design and advanced control capabilities make it suitable for:

• Conveyors and Material Handling Systems: Providing precise speed and torque control for efficient and safe movement of goods.
• HVAC Systems and Fans: Enhancing energy efficiency and ensuring optimal airflow regulation in ventilation systems.
• Process Automation: Delivering reliable and accurate control for various automated industrial processes.
• Pumps and Compressors: Optimizing fluid and air handling, reducing energy consumption, and extending equipment lifespan.
• Packaging and Labeling Equipment: Ensuring high-speed and accurate operation for streamlined production lines.
• Textile Machinery: Offering precise control for intricate textile manufacturing processes.
• Food and Beverage Processing: Meeting stringent demands for hygiene and consistent performance in food production.
• General Manufacturing: Improving efficiency and control in a multitude of general industrial settings.

Why Choose This Model?

Opting for the Nidec Control Techniques UNI2403 AC drive means investing in a solution that offers unparalleled advantages for your industrial operations. This model stands out due to its ability to deliver highly energy-efficient motor control, significantly reducing operational costs and environmental impact. Its inherent flexibility allows it to be seamlessly integrated into a wide range of industrial tasks, adapting to diverse application requirements with ease. The UNI2403 is designed for future-proofing, featuring easy expandability for essential communications and feedback modules, ensuring it can evolve with your operational needs. Furthermore, it is built with the robust engineering synonymous with Control Techniques, ensuring continuous operation and exceptional reliability even in rugged and demanding industrial environments. When dependable, high-performance motor control is paramount, the UNI2403 represents a trusted choice backed by the renowned expertise of Nidec Control Techniques.

Order Now

The powerful and versatile Control Techniques UNI2403 AC Drive is readily available and poised for worldwide shipment, ensuring your operational needs are met without delay. To explore more advanced solutions within this acclaimed series, we invite you to browse our comprehensive selection of Control Techniques Unidrive SP Series AC Drives. For a broader perspective on cutting-edge motor control and automation technologies, delve into the complete range of innovative solutions offered within the dedicated Nidec (Control Techniques) category. Secure your UNI2403 today and elevate your industrial application's performance.
