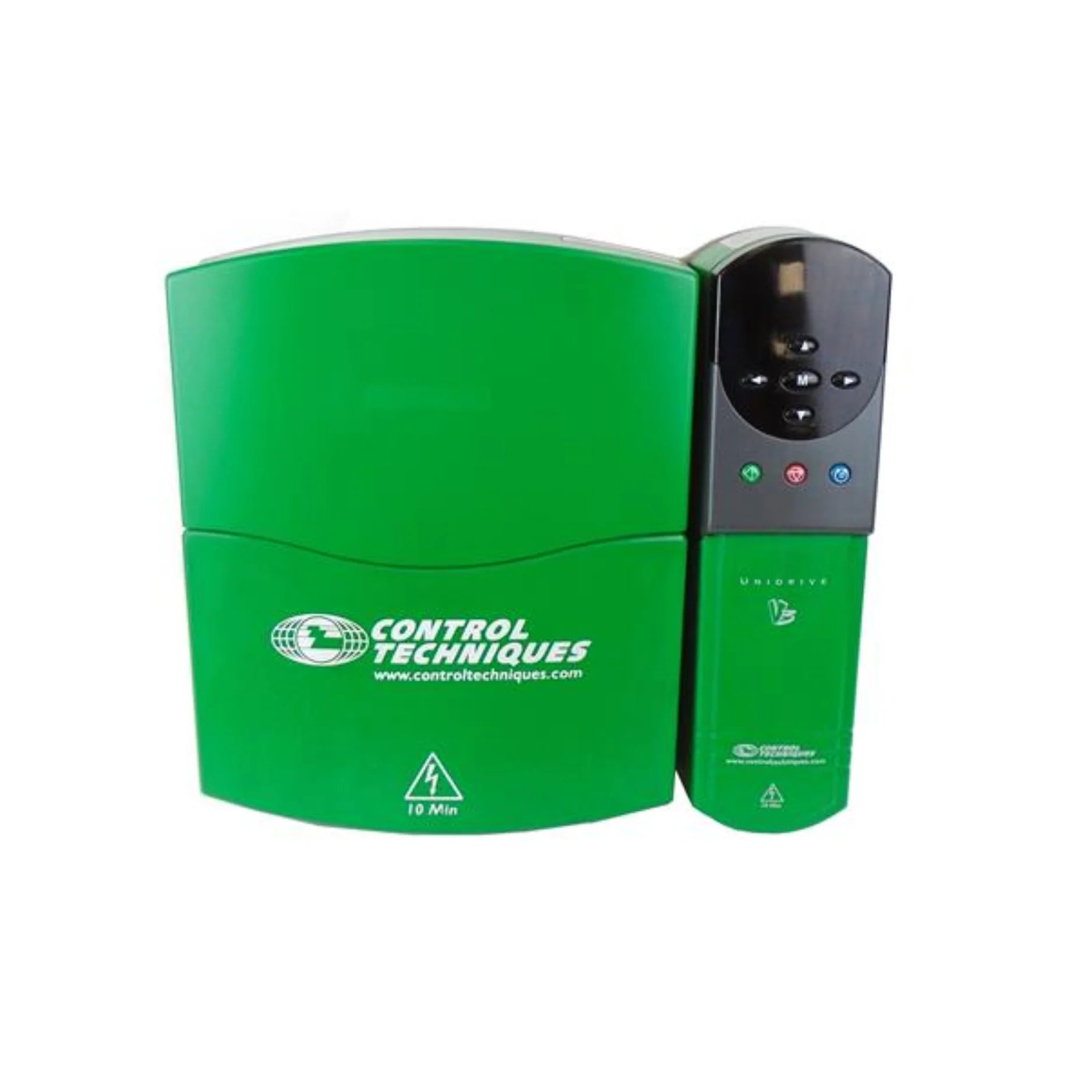

Control Techniques UNI3404

Overview

The Nidec Control Techniques UNI3404 is a high-performance AC drive engineered for the most demanding industrial applications. As a cornerstone of the renowned Unidrive Classic series, this drive delivers exceptional power and precision, ensuring optimal control over a wide range of motor systems. With a robust 30 kW (40 HP) power output and a continuous 60 A output at 380–480 V in 3‑phase systems, the UNI3404 is built to handle heavy loads with unwavering reliability. Its versatility is further enhanced by support for multiple motor control modes, including V/f, closed-loop vector, and advanced servo control, making it an ideal solution for complex industrial processes. Furthermore, an impressive overload capacity of up to 90 A for 60 seconds provides critical resilience during peak demands, safeguarding your operations.

Key Features

• Power Output: 30 kW (approximately 40 HP) for robust performance.
• Input Voltage: Wide 380–480 V AC ±10%, 3‑phase compatibility.
• Input Current: Efficient 52 A input for optimized power consumption.
• Output Current: Stable 60 A nominal output, with a momentary 90 A overload capacity for 60 seconds.
• Frequency Range: Broad 0–400 Hz operating range for diverse motor applications.
• Control Modes: Advanced control capabilities including V/f (open-loop), precise closed-loop vector, and high-accuracy servo control with encoder feedback.
• Cooling: Reliable forced air (fan cooled) system for consistent thermal management.
• Enclosure: Durable IP20 standard enclosure providing essential protection.
• Display: Integrated LED diagnostics for convenient status monitoring and troubleshooting.
• Expansion: Seamless compatibility with optional communication and feedback modules for enhanced system integration.

Technical Specifications

The UNI3404 stands out with its meticulously engineered specifications designed for industrial excellence. It operates flawlessly within a 3-phase 380-480V AC power supply, drawing an input current of 52A to deliver a stable 60A nominal output. This drive’s ability to handle transient demands is crucial, supported by its 90A overload capability for up to 60 seconds, preventing interruptions during high-stress operations. The extensive 0-400 Hz output frequency range ensures compatibility with a broad spectrum of motor types and applications, providing flexibility in system design. Its robust construction includes an IP20 standard enclosure, offering basic protection in industrial environments, while the forced-air cooling system actively manages heat, extending the lifespan and ensuring consistent performance of the drive under continuous operation. The internal architecture allows for easy expansion, accommodating optional modules that can further enhance communication protocols and feedback mechanisms, tailoring the drive to specific application requirements.

Applications

• High-power motor systems in complex industrial automation setups.
• Large-scale conveyors, industrial mixers, and heavy-duty crushers.
• Precision material handling equipment for efficient logistics.
• Advanced machinery for packaging, textile production, and metal processing.
• Energy-efficient pump and fan control systems, reducing operational costs.

Why Choose This Model?

Choosing the Control Techniques UNI3404 means investing in proven industrial reliability and cutting-edge performance. Its ability to effortlessly manage high-power loads with a dependable 60 A output makes it a cornerstone for critical operations. The drive’s comprehensive support for advanced control strategies, from V/f to closed-loop vector and servo control, provides unparalleled precision and adaptability for various motor types. Built to withstand the rigors of demanding industrial environments, the UNI3404 offers exceptional durability and a long operational life. For facilities looking to modernize existing infrastructure, it serves as a seamless upgrade path for legacy systems, ensuring continuity and improved efficiency. Moreover, its intuitive design facilitates easy configuration and maintenance, minimizing downtime and maximizing productivity. Select the UNI3404 for a powerful, versatile, and reliable AC drive solution.

Order Now

Elevate your industrial control systems with the Nidec Control Techniques UNI3404 AC Drive. This high-performance unit is readily available and ships worldwide, ensuring that your operations can benefit from its robust capabilities without delay. To explore more advanced solutions within this acclaimed series, we invite you to browse our comprehensive selection of Control Techniques Unidrive SP Series AC Drives. Additionally, discover the full breadth of innovative products and solutions offered by the brand by visiting our dedicated Nidec (Control Techniques) category.
