Control Techniques SP3402

Overview

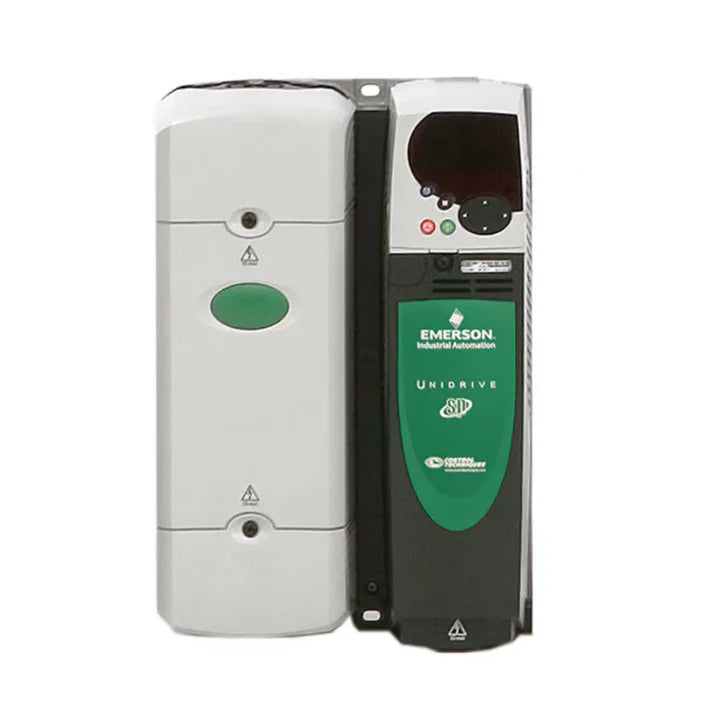

The Nidec Control Techniques SP3402 is an advanced variable frequency AC drive (VFD) from the esteemed Unidrive SP series, meticulously engineered to provide unparalleled precision and robust control for 30 HP (22 kW) motors. Designed for demanding industrial environments, this VFD delivers a substantial 43 A output current and operates seamlessly on a versatile 380–480 V, 3‑phase input. Its sophisticated design supports a wide array of operating modes, including open-loop, closed-loop, and full servo configurations, making it an incredibly adaptable solution for a multitude of advanced motor control applications. Whether you're powering complex machinery or enhancing existing systems, the SP3402 offers the reliability and performance synonymous with Nidec Control Techniques.

Key Features

• Power Rating: 30 HP / 22 kW ensures robust performance for demanding applications.
• Output Current: A powerful 43 A provides ample power for various motor types.
• Input Voltage: Flexible 3‑phase 380–480 V AC, 50/60 Hz compatibility for global use.
• Control Modes:
  • Open-loop vector for general-purpose applications.
  • Closed-loop vector for enhanced speed and torque control.
  • Servo control for high-precision motion applications.
  • Regenerative operation (with optional module) for energy efficiency.
• Mounting: Versatile wall or panel mounting options for convenient installation.
• Enclosure: IP20 rated for protection in industrial settings.
• Integrated Fan Cooling: Ensures optimal operating temperatures and extended lifespan.
• Keypad: Not included, but fully compatible with the optional SM-Keypad for intuitive control and parameter setting.

Technical Specifications

The SP3402 is engineered to meet rigorous industrial standards, offering a comprehensive set of technical specifications:

• Model: SP3402
• Series: Unidrive SP
• Motor Horsepower: 30 HP
• Motor Kilowatt: 22 kW
• Output Current: 43 A (Continuous)
• Input Voltage Range: 380-480 V AC
• Number of Phases: 3-phase
• Frequency: 50/60 Hz
• Protection Class: IP20
• Cooling Method: Integrated Fan
• Communication: Compatible with various option modules for expanded connectivity (e.g., Ethernet, Profibus - modules sold separately).
• Certifications: Designed to meet relevant industry standards for safety and performance (specific certifications available upon request).

Applications

The versatility and robust performance of the Control Techniques SP3402 make it an ideal choice for a diverse range of industrial and commercial applications, including:

• Industrial Automation and Motor Control: Precision control for manufacturing processes, assembly lines, and robotics.
• HVAC Systems: Efficiently manage fans, pumps, and compressors, optimizing energy consumption in heating, ventilation, and air conditioning.
• Conveyors, Cranes, and Hoists: Reliable and safe operation in material handling and lifting equipment.
• Packaging and Production Lines: Enhanced speed and accuracy for high-throughput packaging and manufacturing.
• OEM and Retrofit Machinery: A perfect solution for integrating into new equipment designs or upgrading existing systems for improved performance and efficiency.

Why Choose the Control Techniques SP3402?

Opting for the Control Techniques SP3402 means investing in proven performance and reliability. This VFD stands out for several compelling reasons:

• Efficient 30 HP Motor Performance: Delivers powerful and precise control for 30 HP motors within a remarkably compact and space-saving design.
• Multiple Control Modes for Flexible Application: Its ability to operate in open-loop, closed-loop, and servo modes provides unparalleled flexibility, allowing it to adapt to almost any motor control requirement.
• Trusted Unidrive SP Platform: Built upon the renowned Unidrive SP platform, known globally for its exceptional reliability, durability, and high-performance capabilities, ensuring long-term operational stability.
• Easy Integration into Existing Systems: Engineered for seamless integration, minimizing downtime and complexity during installation and setup.
• Global Voltage Compatibility: With its 380–480 V input, it is suitable for a wide range of international electrical standards.

Order Now

Elevate your industrial processes with the precision and power of the Nidec Control Techniques SP3402 VFD. This high-performance variable frequency AC drive is readily available and ships worldwide, ensuring that your operations can benefit from its advanced capabilities no matter where you are. Transform your motor control with a solution trusted by industries globally. For additional drive options and to explore the full spectrum of advanced motion control and drive technologies, we invite you to browse the comprehensive Control Techniques Unidrive SP Modular category or visit the main Nidec (Control Techniques) category.
