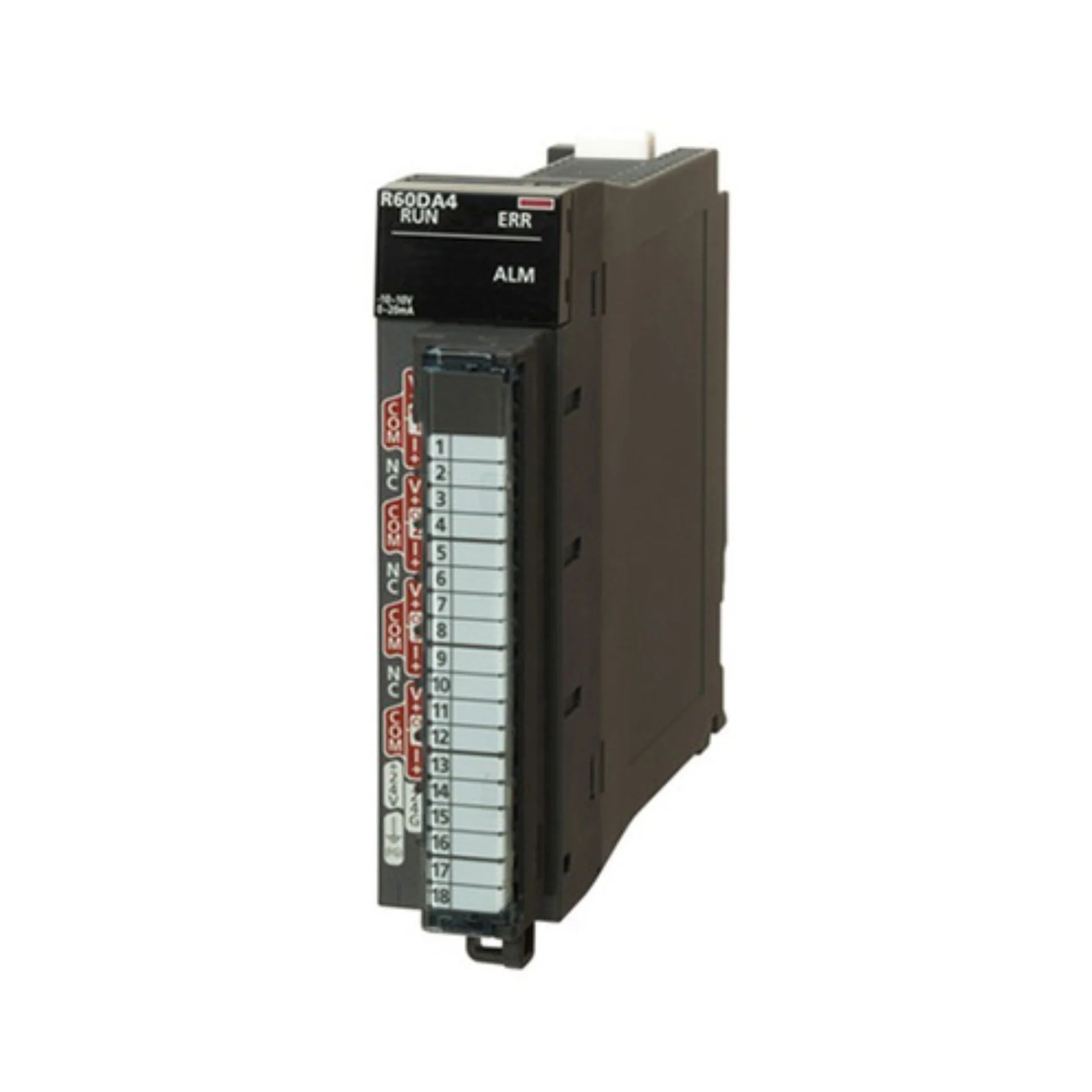

Mitsubishi R60DA4

Overview

The Mitsubishi R60DA4 is a high-performance 4-channel analog output module meticulously engineered for seamless integration with the MELSEC iQ-R series PLC platform. This advanced module delivers unparalleled precision in voltage or current output control, making it an indispensable component for sophisticated automation and control applications. With its robust design and exceptional signal processing capabilities, the R60DA4 empowers industries to achieve superior operational accuracy and reliability across a diverse range of industrial environments.

Key Features

• Four Independent Analog Output Channels: Provides versatile control options for various devices and systems.
• Flexible Output Types: Supports a broad spectrum of voltage outputs (±10 V, 0–10 V, 1-5V) and current outputs (4–20 mA, 0–20 mA), catering to diverse application requirements.
• Superior 16-bit Resolution: Ensures exceptionally accurate and granular signal output for critical control tasks.
• Galvanically Isolated Channels: Guarantees reliable and interference-free operation, protecting sensitive equipment.
• Channel-Specific Output Range Settings: Allows for customized configuration of each output channel, optimizing performance for specific needs.
• Integrated Diagnostics and Error Detection: Enhances system reliability by providing immediate feedback on operational status and potential issues.
• High-Speed Response: Facilitates real-time control, essential for dynamic and time-sensitive industrial processes.
• Compact and Space-Saving Design: Optimizes cabinet space, contributing to more efficient and streamlined installations.

Technical Specifications

• Catalog Number: R60DA4
• Number of Channels: 4 analog outputs
• Output Range Options:
  • Voltage: ±10 V, 0–10 V, 1–5 V
  • Current: 4–20 mA, 0–20 mA
• Resolution: 16-bit
• Power Supply: Provided directly from the base unit, eliminating the need for an external power source.
• Isolation: Comprehensive channel-to-channel and channel-to-PLC isolation for enhanced safety and signal integrity.
• Operating Temperature: 0 °C to +55 °C, ensuring reliable performance in demanding industrial conditions.
• Mounting: Designed for standard DIN rail mounting via the iQ-R base unit for straightforward installation.
• Dimensions: Adheres to standard iQ-R module size for seamless compatibility within existing systems.
• Certifications: CE, UL, cUL, RoHS compliant, demonstrating adherence to international quality and safety standards.

Applications

The Mitsubishi R60DA4 is an ideal solution for a multitude of industrial applications requiring precise analog output control:

• Analog Control Systems: Efficiently manage valves, actuators, and various types of drives.
• Industrial Process Automation: Essential for maintaining optimal control in complex manufacturing environments.
• Environmental Control: Accurately regulate temperature, pressure, and flow in critical processes.
• Dosing and Mixing Equipment: Ensures precise material dispensing and blending for consistent product quality.
• Precision Output Signal Generation: Generates highly accurate signals for testing, measurement, and specialized control tasks.

Why Choose This Model?

The Mitsubishi R60DA4 stands out as a premier choice for demanding analog control applications due to its exceptional features and robust performance. Its high-resolution analog output capabilities and versatile signal range support empower engineers to achieve unparalleled precision in their systems. The R60DA4's seamless integration with existing MELSEC iQ-R systems ensures a smooth transition and enhanced operational efficiency. Furthermore, built-in diagnostics provide an additional layer of reliability, minimizing downtime and maximizing productivity. For any industry requiring advanced analog control within industrial automation, the R60DA4 offers a powerful, reliable, and flexible solution from a trusted brand like Mitsubishi Electric.
