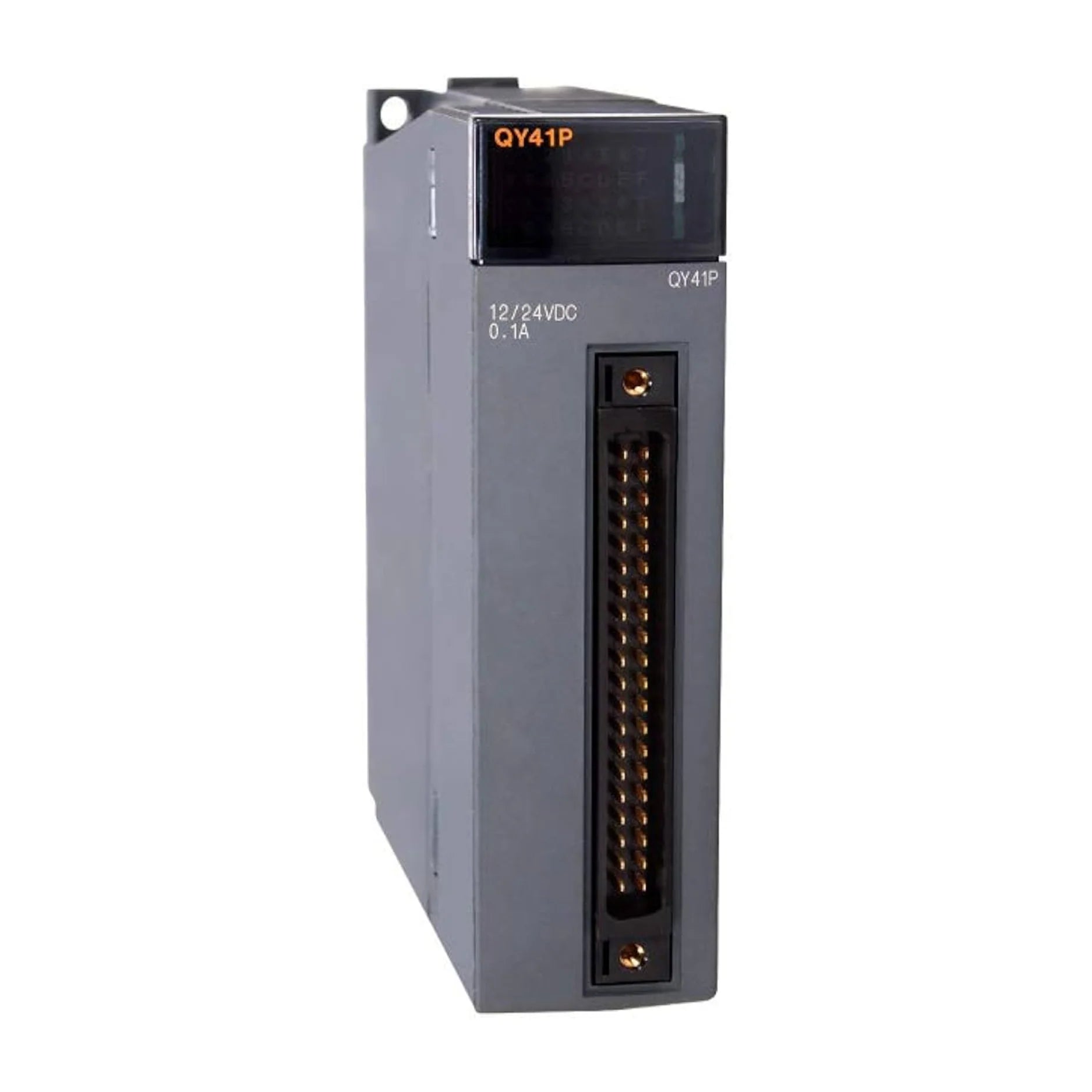

Mitsubishi QY41P

Overview

The Mitsubishi QY41P is a high-performance 16-point transistor output module meticulously engineered for seamless integration with Mitsubishi Q Series PLCs. Designed to empower demanding industrial automation tasks, this module offers versatile 24V DC sink/source output capabilities. Its robust construction and advanced features make it an indispensable component for applications requiring rapid response times and precise control. Optimized for compact DIN rail mounting, the QY41P streamlines the control of critical elements such as solenoids, relays, and indicator lights, ensuring efficient and reliable operation within various industrial setups.

Key Features

• Series: Mitsubishi Q Series
• Output Points: 16 channels for comprehensive control
• Output Type: Transistor (sink/source selectable) for flexible integration
• Output Voltage: 24V DC standard for industrial compatibility
• Max Output Current: 0.5A per point, with a total of 4A per module
• Response Time: Ultra-fast ≤ 0.2 ms for critical high-speed applications
• Isolation: Photocoupler isolation for enhanced safety and noise immunity
• Built-in Diagnostics: Short-circuit detection and clear status LEDs for simplified troubleshooting
• Mounting: Designed for convenient base unit (rack-mounted) installation

Technical Specifications

• Catalog Number: QY41P
• Output Type: Transistor (sink/source)
• Rated Voltage: 24V DC
• Output Points: 16
• Max Current/Point: 0.5 A
• Max Current/Module: 4 A total
• ON Voltage Drop: ≤ 1.5V
• OFF Leakage Current: ≤ 0.1 mA
• Response Time: OFF → ON: ≤ 0.2 ms / ON → OFF: ≤ 0.2 ms
• Insulation Resistance: ≥ 50 MΩ
• Ambient Temperature: 0°C to 55°C
• Dimensions: Approx. 98 x 27.4 x 90 mm
• Weight: ≈ 0.2 kg
• Certifications: CE, UL, RoHS

Applications

The Mitsubishi QY41P excels in a diverse array of industrial applications, providing reliable and high-speed control:

• Precise output control of relays and solenoids in manufacturing processes
• Efficient management of LED indicators and alarm signal output for operational transparency
• Critical component in high-speed machine automation to optimize production cycles
• Integral to conveyor systems and I/O panels for seamless material handling
• Essential for OEM machinery and control cabinets requiring robust and compact output solutions

Why Choose This Model?

The Mitsubishi QY41P stands out as a superior choice for industrial automation due to its compelling features and robust design:

• Flexible Output Modes: With both sink and source transistor outputs, the QY41P offers unparalleled versatility to accommodate various load types and system requirements.
• High-Speed Switching: Its exceptional response time of ≤ 0.2 ms makes it an ideal solution for applications demanding rapid and precise control, crucial for modern, high-throughput automation.
• Compact & Modular Design: Engineered for space efficiency, this module enables a smaller footprint in control systems, optimizing cabinet space and simplifying installation.
• Advanced Diagnostic Functions: Equipped with built-in short-circuit detection and intuitive LED indicators, the QY41P minimizes downtime by providing clear operational status and enabling quick troubleshooting.
• Reliable Operation: Designed and manufactured by Mitsubishi Electric, a leader in industrial automation, the QY41P guarantees dependable and stable performance even in the most demanding industrial environments.

Order Now

Elevate your automation capabilities with the Mitsubishi QY41P 16-point transistor output module. This essential component is readily available and ships worldwide, ensuring you can enhance your systems regardless of your location. For more options within this cutting-edge product family, we invite you to return to the Mitsubishi MELSEC-Q Series collection. Furthermore, explore our comprehensive range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable, high-performance automation solutions that cater to both legacy systems and next-generation demands for connectivity and flexibility.
