Mitsubishi QY10 digital output module, 8 points, 24V DC sink, compact output module for Q-Series PLCs.

Mitsubishi QY10

$183.00
$183.00
Skip to product information

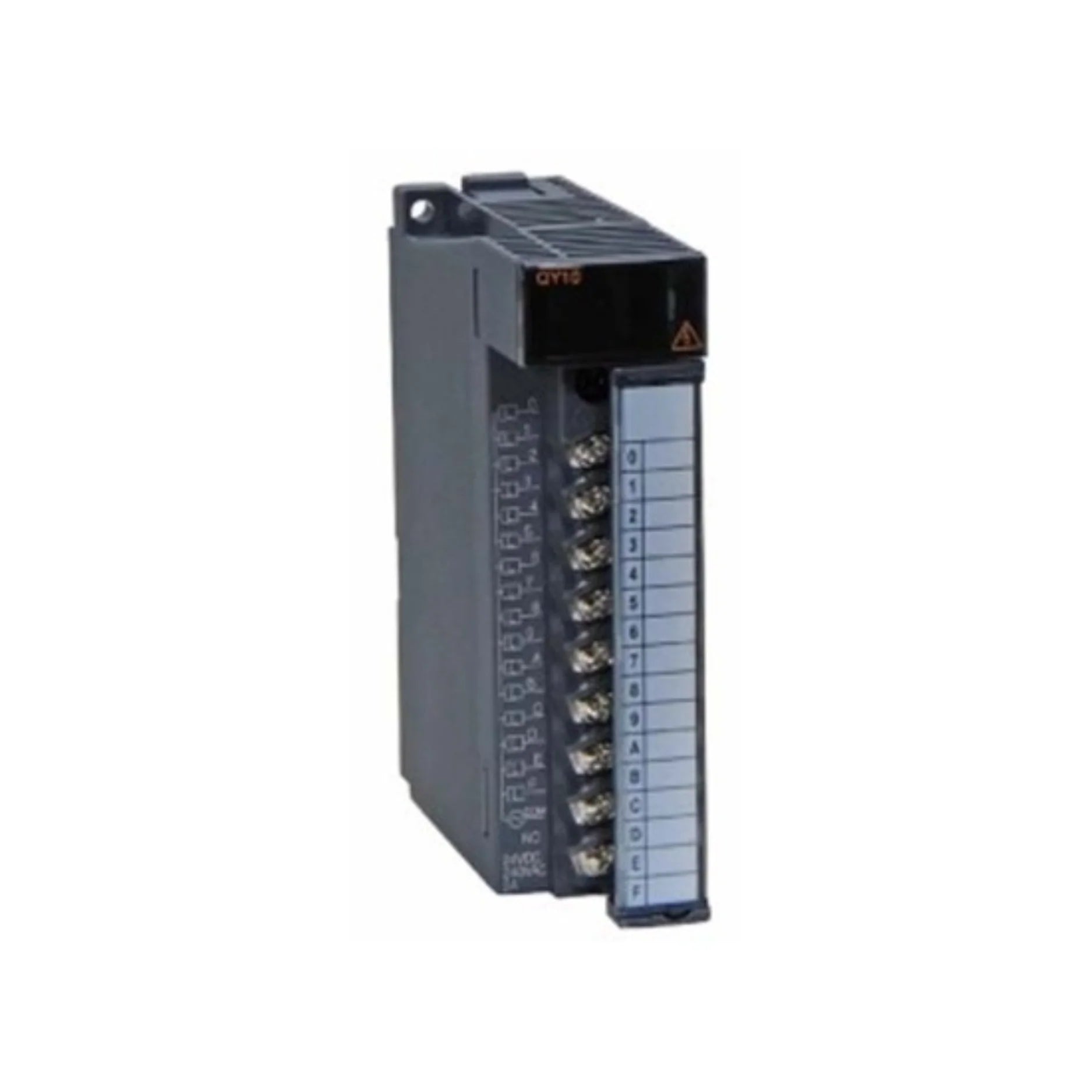

Mitsubishi QY10 digital output module, 8 points, 24V DC sink, compact output module for Q-Series PLCs.
  • Mitsubishi QY10 digital output module, 8 points, 24V DC sink, compact output module for Q-Series PLCs.
  • Mitsubishi QY10 digital output module, 8 points, 24V DC sink, compact output module for Q-Series PLCs.
Mitsubishi QY10

Mitsubishi QY10

$183.00
$183.00

Overview

The Mitsubishi QY10 is an advanced 8-point digital output module meticulously engineered for seamless integration within the celebrated MELSEC-Q Series Programmable Logic Controllers (PLCs). This robust module provides 8 individual sink-type transistor outputs, operating at a reliable 24V DC, making it an indispensable component for a myriad of industrial automation applications. Designed for unparalleled performance, the QY10 facilitates precise signal output to an array of field devices, including but not limited to relays, solenoid valves, contactors, and indicator lamps. Its compact form factor optimizes panel space, while integrated LED indicators offer immediate, clear visual feedback on the operational status of each output point, significantly streamlining troubleshooting and maintenance.

Key Features

  • 8 Digital Outputs: Provides ample connectivity for multiple control signals.
  • Sink-Type Transistor Outputs: Ensures reliable and efficient switching of connected devices.
  • 24V DC Output Voltage: Standardized voltage for broad compatibility with industrial equipment.
  • 0.5A Output Current per Point: Capable of driving a variety of loads with a maximum of 2A per common.
  • 4 Points per Common: Efficient wiring and load distribution.
  • Onboard LED Indicators: Real-time visual status for each output, enhancing diagnostics.
  • Compact Form Factor: Maximizes panel efficiency and reduces overall footprint.
  • Quick Response Time: Engineered for precision and responsiveness in demanding applications.
  • Robust Design: Built to withstand harsh industrial environments for long-term reliability.

Technical Specifications

  • Model: QY10
  • Series: MELSEC-Q
  • Number of Output Points: 8
  • Output Type: Sink (transistor type)
  • Rated Load Voltage: 24V DC (operating range: 20.4–26.4V DC)
  • Rated Load Current: 0.5A per point (maximum 2A per common)
  • Insulation Method: Photocoupler isolation for enhanced safety and noise immunity.
  • Response Time: Typically 0.5 ms (ON to OFF, OFF to ON)
  • Surge Absorber: Built-in surge protection for increased longevity of connected devices.
  • Mounting: Designed for direct integration onto standard MELSEC-Q Series base units.
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Storage Temperature: -20°C to 75°C (-4°F to 167°F)
  • Relative Humidity: 5% to 95% RH, non-condensing
  • Weight: Approximately 0.15 kg (0.33 lbs)
  • Certifications: CE, UL compliant, ensuring global acceptance and safety standards.

Applications

The versatility and reliability of the Mitsubishi QY10 make it an ideal solution for a broad spectrum of industrial automation tasks:

  • Relay and Contactor Control: Precisely switch electrical relays and contactors for motor control and power distribution.
  • Indicator Light Systems: Drive industrial pilot lamps and annunciators, providing clear operational status.
  • Valve and Actuator Control: Regulate pneumatic and hydraulic valves, as well as various electro-mechanical actuators.
  • Motor Start/Stop Logic: Integrate into complex control sequences for efficient motor operation.
  • General Machine Automation: Foundational component for controlling diverse machinery in manufacturing, packaging, and assembly lines.
  • Building Management Systems: Interfacing with HVAC systems, lighting controls, and security apparatus.

Why Choose This Model?

The Mitsubishi QY10 digital output module stands out as a superior choice for several compelling reasons:

  • Dependable Output Control: Engineered for consistent and reliable operation across a wide range of 24V DC devices. Its robust design minimizes downtime and ensures process continuity.
  • Seamless Integration: As a native component of the MELSEC-Q Series, the QY10 offers effortless installation and configuration, significantly reducing setup time and complexity.
  • Enhanced Diagnostics with LED Indicators: Individual LED indicators for each output point provide instant visual feedback, enabling quick identification of operational status or potential faults, thereby simplifying maintenance workflows.
  • Compact and Space-Efficient: Its optimized design allows for maximum utilization of control panel space, making it perfect for applications where footprint is a critical consideration.
  • Field-Proven Mitsubishi Reliability: Benefit from Mitsubishi Electric's renowned reputation for producing high-quality, durable industrial automation components that deliver long-term performance in challenging environments.

Order Now

Elevate your automation capabilities with the Mitsubishi QY10 Digital Output Module. This essential component is available for immediate dispatch, ensuring fast delivery to power your projects. Don't compromise on precision and reliability; invest in a solution that seamlessly integrates into your MELSEC-Q Series system and provides steadfast control over your critical industrial processes. For additional options and to expand your automation infrastructure, we invite you to return to the Mitsubishi MELSEC-Q Series collection.

Furthermore, explore our comprehensive range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable, high-performance automation solutions that cater to every industrial need, from legacy systems to the cutting-edge PLCs designed for the future of manufacturing.
