Mitsubishi QX80

Overview

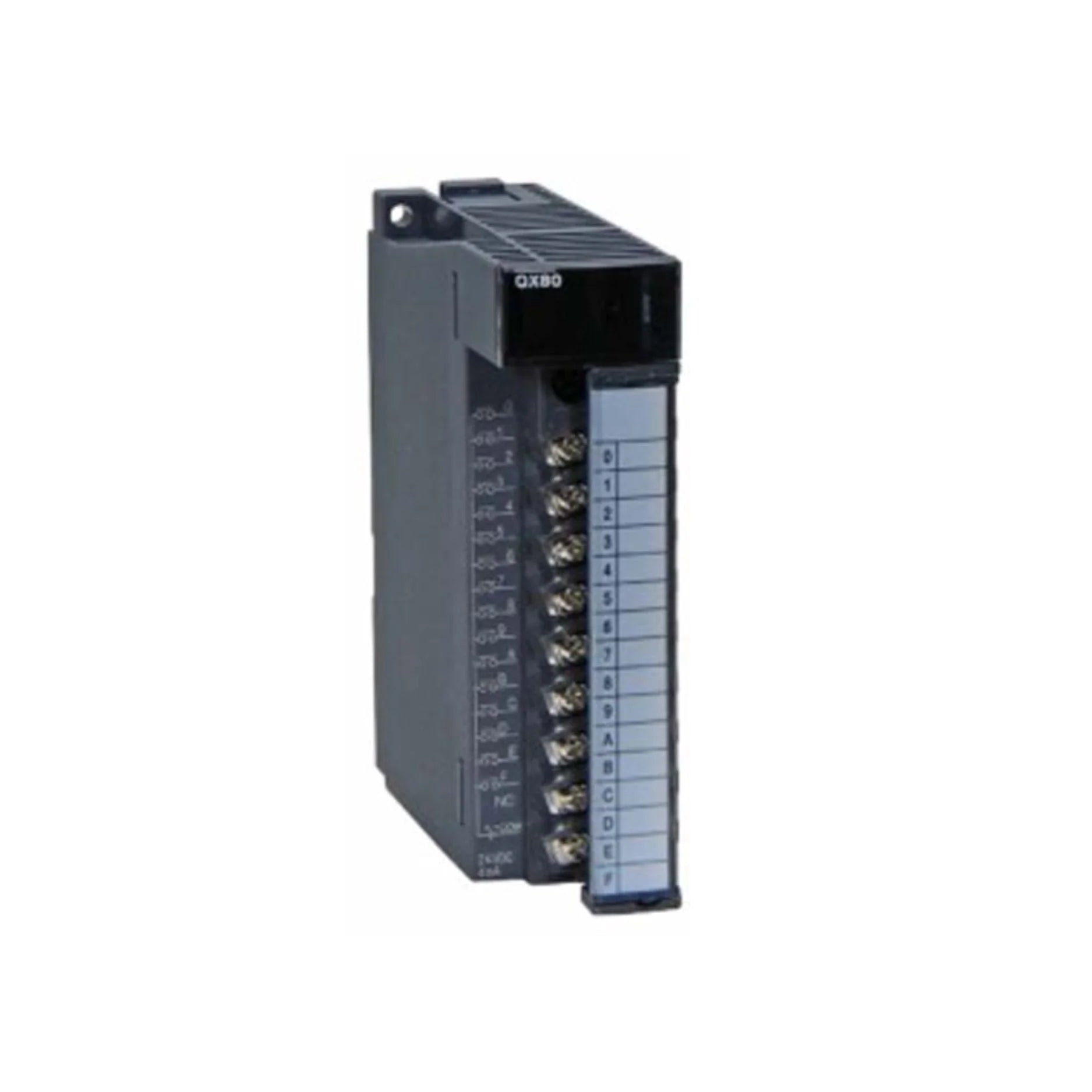

Unlock unparalleled precision and efficiency in your industrial automation systems with the Mitsubishi QX80, a high-performance 32-channel digital input module specifically engineered for the MELSEC-Q Series PLC platform. This robust module is designed to deliver rapid, noise-resistant input processing, ensuring reliable data acquisition in even the most demanding environments. With versatile support for both sink and source input types, the QX80 offers exceptional flexibility for various wiring configurations. Its integrated LED status indicators provide immediate visual feedback for each input, simplifying diagnostics and troubleshooting. Housed in a compact form factor, the QX80 is the ideal solution for modern high-density and high-performance automation applications where space efficiency and dependable operation are paramount.

Key Features

• Number of Inputs: 32 individual digital input channels for comprehensive monitoring.
• Input Type: User-selectable sink or source input capability, offering broad compatibility with diverse sensors and control devices.
• Input Voltage: Operates efficiently at 24V DC, with a wide voltage tolerance of 20.4–26.4V DC for stable performance.
• Input Current: Optimized power consumption with approximately 5 mA per point, minimizing system load.
• Response Time: Swift 10 ms (default) response time, configurable to meet the specific demands of high-speed applications.
• LED Indicators: Individual LED status indicators for each input point, enabling quick and intuitive operational verification and fault identification.
• Common Terminal: Efficient design with 8 points per common terminal, simplifying wiring and reducing complexity.
• High-Density Design: Maximizes the utilization of rack space within your control cabinet, facilitating more compact and powerful systems.

Technical Specifications

• Model: QX80
• Series: MELSEC-Q Series
• Connector Type: Designed for screw terminal block connections (requires optional terminal block for installation).
• Isolation: Utilizes photocoupler isolation for superior noise immunity and protection against electrical interference.
• Mounting: Seamlessly integrates into any standard Q-series base unit slot, ensuring straightforward installation.
• Operating Temperature: Engineered for reliability across a broad operational temperature range of 0°C to 55°C.
• Weight: Lightweight design at approximately 0.2 kg (0.44 lbs), contributing to overall system lightness.
• Certifications: Complies with international standards, holding CE, UL, and cUL certifications, guaranteeing safety and quality.

Applications

• Precise monitoring of various sensors and switches in automated processes.
• Reliable control for machine start/stop functionalities, ensuring operational safety and efficiency.
• Acquisition of critical industrial process inputs for real-time data analysis and control.
• Secure and accurate acquisition of safety signals in demanding industrial environments.
• Versatile general-purpose digital I/O for a wide array of factory automation tasks.

Why Choose This Model?

Opting for the Mitsubishi QX80 digital input module means investing in a solution that brings significant advantages to your automation infrastructure. Its High Channel Density provides 32 inputs within a single, compact module, optimizing cabinet space and simplifying system architecture. The Flexible Input Type, supporting both sink and source configurations, significantly streamlines wiring and enhances compatibility with existing setups. Experience Fast, Stable Performance, making the QX80 incredibly reliable for high-speed control systems where accurate and timely data is essential. Furthermore, Easy Diagnostics are facilitated by the integrated LED indicators, offering real-time input status at a glance, which drastically reduces downtime and simplifies maintenance procedures. Choose the QX80 for a robust, efficient, and user-friendly digital input solution.

Order Now

The high-performance Mitsubishi QX80 digital input module is readily available to enhance your industrial automation systems. Secure your module today and benefit from its superior channel density, flexible input options, and fast, stable operation. This essential component is engineered to integrate seamlessly into your MELSEC-Q Series PLC environment, providing reliable digital input processing for your most critical applications.

For more options tailored to your specific needs, we invite you to return to the dedicated Mitsubishi MELSEC-Q Series collection. Discover a comprehensive range of components designed to complement your QX80 module and complete your automation projects.

Additionally, explore our full spectrum of Mitsubishi MELSEC Programmable Controllers (PLC) to uncover scalable automation solutions. Our extensive offerings span from trusted legacy MELSEC systems to cutting-edge, next-generation PLCs designed to deliver exceptional performance, unparalleled connectivity, and ultimate flexibility for the complex demands of modern industry.
