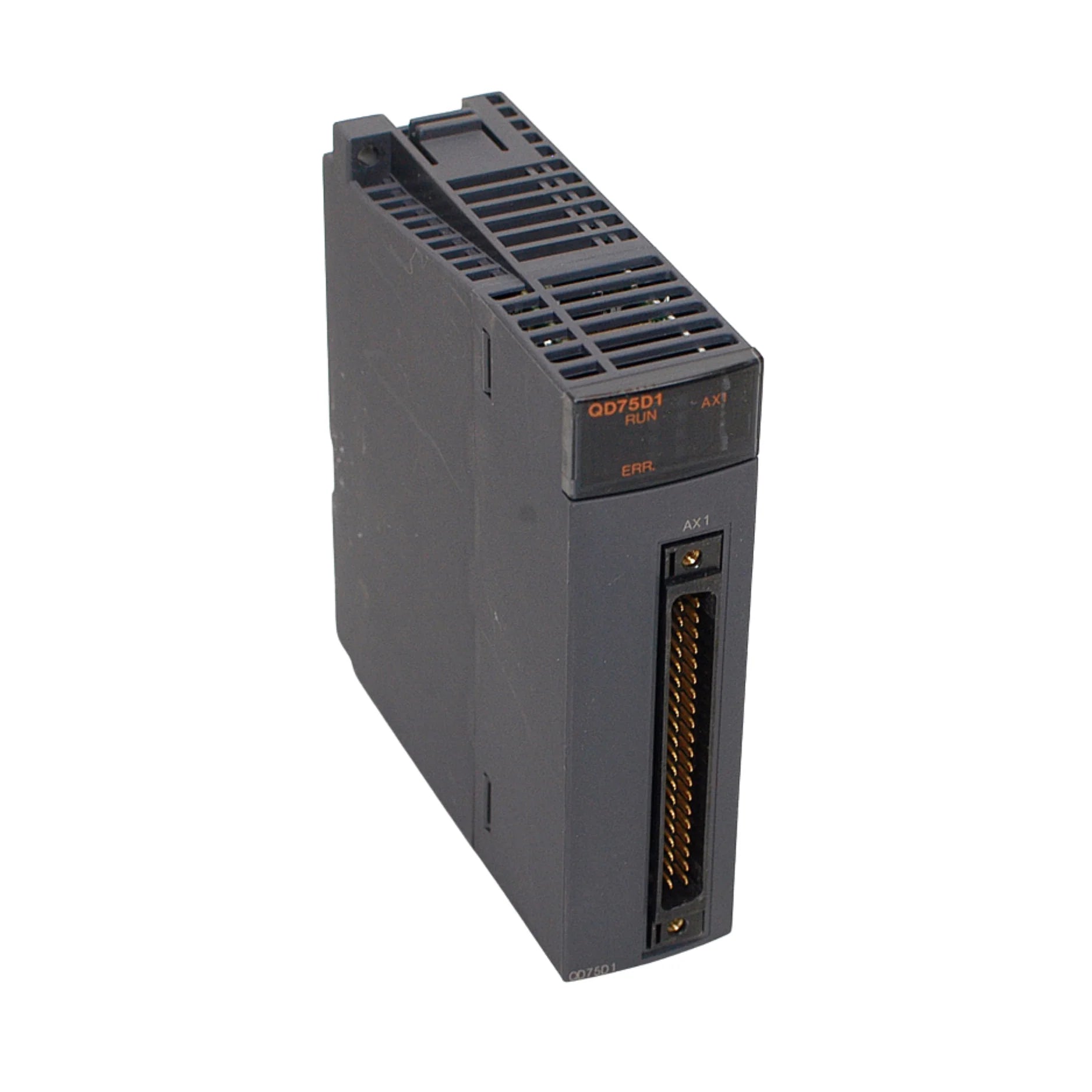

Mitsubishi QD75D1

Overview

Elevate your industrial automation with the Mitsubishi QD75D1, a robust 1-axis high-speed positioning module meticulously engineered for the MELSEC Q Series PLC platform. This advanced module is specifically designed for sophisticated pulse train output motion control, enabling exceptionally precise command over both stepper and servo motors within complex automation systems. The QD75D1 is the cornerstone for applications demanding not only high-speed operation but also pinpoint accuracy, making it an indispensable component for critical processes such as pick-and-place robotics, advanced conveyor systems, and intricate robotic manipulation tasks. Its seamless integration and powerful capabilities ensure optimized performance and enhanced productivity in challenging industrial environments.

Key Features

• 1-Axis Precision Control: Delivers highly accurate pulse train output, providing superior command over diverse motion systems.
• Unmatched High-Speed Processing: Guarantees meticulous control over position, speed, and acceleration, essential for dynamic operations.
• Versatile Control Modes: Offers comprehensive control options including dedicated positioning, speed regulation, and dynamic speed-position switching to adapt to various application needs.
• Robust Encoder Feedback: Fully supports external encoder input, ensuring closed-loop accuracy and real-time motion verification.
• Seamless Q Series Integration: Engineered for effortless setup and complete compatibility within existing Q Series PLC systems, minimizing deployment time.
• Optimized Program Memory: Features built-in data tables, streamlining the execution and storage of complex motion instructions.
• Comprehensive Diagnostics: Equipped with intuitive LED indicators and integrated error detection mechanisms for rapid troubleshooting and enhanced system reliability.

Technical Specifications

• Model Number: QD75D1
• Axis Count: 1 axis
• Output Type: Differential line driver (pulse train)
• Pulse Output Frequency: Maximum 4 MHz
• Control Modes: Positioning, speed, and speed-position switching
• Compatible Motors: Engineered for seamless operation with servo and stepper motors requiring pulse input
• Operating Temperature: 0 °C to 55 °C
• Mounting: Designed for secure mounting on a Q Series PLC base unit
• Certifications: Compliant with CE, UL, and RoHS standards, ensuring global applicability and safety.

Applications

• Advanced Pick-and-Place Systems: Empowers robotic systems with exceptional speed and precision for handling delicate or small components.
• High-Speed Conveyor and Packaging Lines: Optimizes material flow and packaging processes with accurate and rapid motion control.
• Precision Index Tables and Material Positioning: Ensures exact indexing and placement of materials in manufacturing and assembly.
• Multi-axis CNC and Motion Automation: Provides reliable single-axis control capabilities that integrate seamlessly into complex multi-axis setups.
• General Industrial Automation: Indispensable for any industrial application where highly precise and repeatable motion is paramount.

Why Choose This Model?

The Mitsubishi QD75D1 stands out as an exceptional choice for demanding automation requirements due to its blend of cutting-edge technology and proven reliability. Its capability for High Precision Motion makes it the ideal solution for applications where tight-tolerance positioning is critical, ensuring unparalleled accuracy in every operation. As a Modular Expansion component, it integrates effortlessly into your existing Q Series PLC systems, allowing for scalable and future-proof automation solutions without extensive reconfigurations. The module offers Flexible Motor Control, supporting a wide array of servo and stepper motors, which provides designers with the freedom to select the best motor for their specific application, optimizing performance and efficiency. Furthermore, its Compact Form Factor is a significant advantage, saving valuable panel space within control cabinets and contributing to more streamlined and efficient system designs. Above all, the QD75D1 carries the legacy of Mitsubishi Reliability, a brand synonymous with durability and high performance in industrial automation worldwide, ensuring a long operational life and minimal downtime. Choosing the QD75D1 means investing in a solution that delivers consistent, precise, and dependable motion control for your most critical industrial processes.

Order Now

The Mitsubishi QD75D1 1-axis positioning module is readily available to enhance your automation infrastructure. Designed for global deployment, this high-performance module ships worldwide, ensuring that advanced precision control is accessible wherever your operations are located. Secure your QD75D1 today and revolutionize your motion control capabilities with Mitsubishi Electric's renowned quality and innovation.
