Mitsubishi QD70P8

Overview

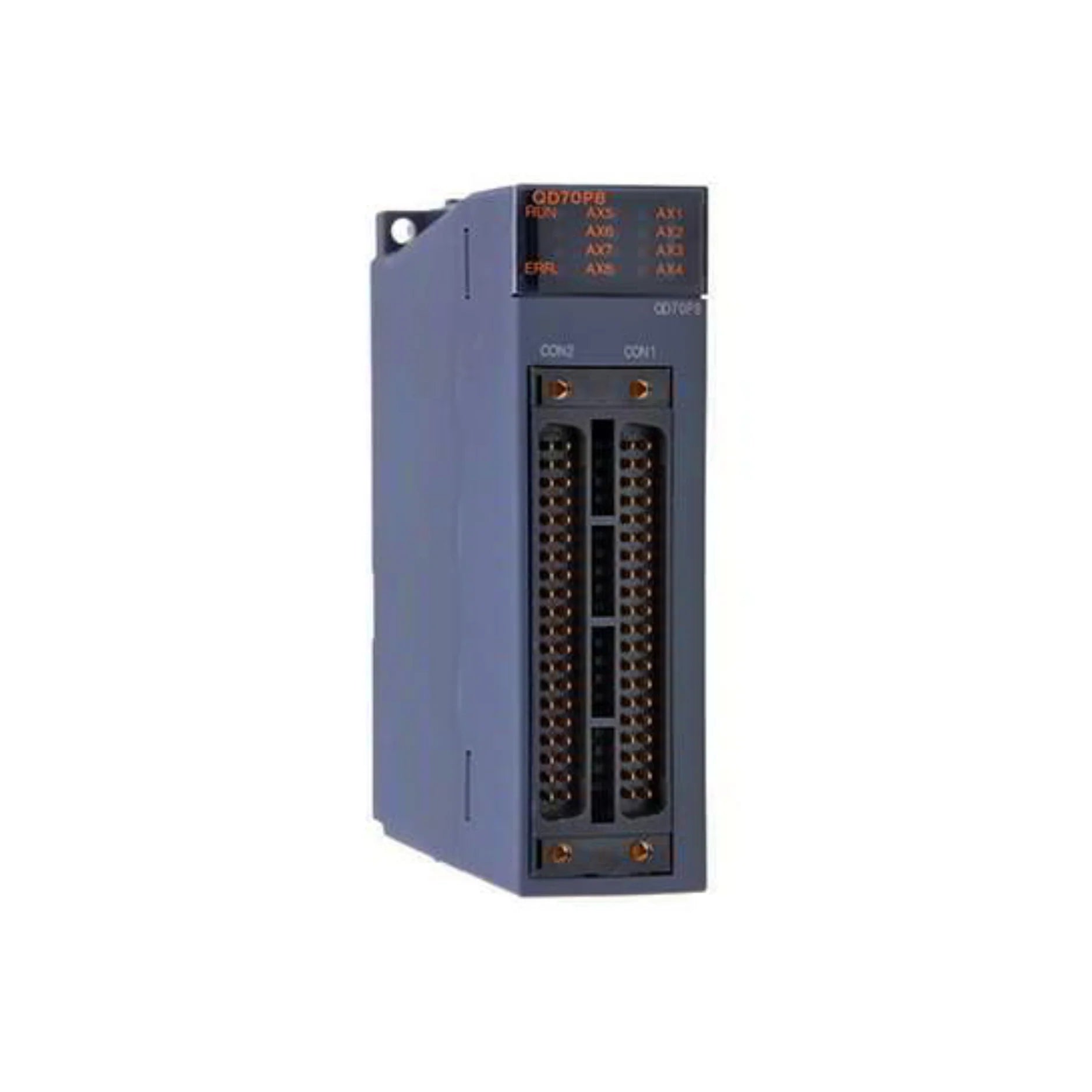

The Mitsubishi QD70P8 is an advanced 8-axis pulse output positioning module meticulously engineered for seamless integration with MELSEC-Q series PLCs. Designed to empower sophisticated industrial automation systems, this module provides unparalleled precision and synchronized motion control across multiple axes. Its robust capabilities make it the cornerstone for applications demanding high-density control and intricate movement coordination, delivering superior performance in demanding manufacturing environments.

Key Features

• Eight Pulse Output Channels: Offers extensive control over multiple motors for complex motion profiles.
• Multi-Axis Synchronized Motion: Facilitates precise, coordinated movement, crucial for advanced robotic and gantry systems.
• Linear and Circular Interpolation: Supports versatile positioning modes, including advanced curve and arc control.
• High-Speed Pulse Output: Delivers rapid and accurate positioning with a maximum pulse frequency of up to 2 Mpps per axis.
• MELSEC-Q Series Compatibility: Ensures seamless integration and reliable operation within the established MELSEC-Q PLC ecosystem.
• Compact Form Factor: Optimized for space-constrained industrial panels, allowing for efficient use of cabinet space.
• Bus-Powered Operation: Draws power directly from the PLC rack, simplifying wiring and reducing installation complexity.

Technical Specifications

• Mitsubishi Code: QD70P8
• Series: MELSEC-Q
• Number of Axes: 8 pulse output channels
• Control Method: Pulse-train output
• Max Pulse Frequency: Up to 2 Mpps per axis
• Positioning Modes: Absolute, relative, and interpolation
• Mounting: Q series PLC base unit slot
• Power Supply: Bus-powered from PLC rack
• Operating Temperature: 0 °C to +55 °C

Applications

• Multi-axis CNC and Routing Machines: Provides precise control for intricate machining operations.
• Coordinated Conveyor and Gantry Systems: Ensures synchronized movement for efficient material handling.
• Pick-and-Place and Robotic Automation: Enables highly accurate and repeatable robotic actions.
• High-Speed Labeling and Packaging Lines: Facilitates rapid and precise product placement and finishing.
• Complex Motion Control Systems: Ideal for any application requiring sophisticated and synchronized multi-axis control.

Why Choose This Model?

The Mitsubishi QD70P8 stands out as an exceptional choice for engineers and system integrators seeking high-performance motion control. Its ability to enable advanced synchronization across eight distinct motion axes, coupled with its high-speed performance, makes it perfect for the most demanding precision automation tasks. The integrated design not only simplifies installation and reduces wiring complexity but also guarantees consistent reliability within Mitsubishi Electric's renowned automation ecosystem. This module is an indispensable component for OEMs and machine builders facing space constraints, offering a powerful solution without compromising on size or performance. Opt for the QD70P8 to elevate your automation capabilities to new heights of efficiency and accuracy.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi QD70P8 8-axis pulse output positioning module. This compact yet powerful solution is designed to deliver unparalleled precision and synchronized motion control for your most critical applications. Enhance your system's efficiency and reliability today by integrating the QD70P8. Contact us to order or learn more about how this advanced module can transform your operational performance.
