Mitsubishi Q68ADV

Overview

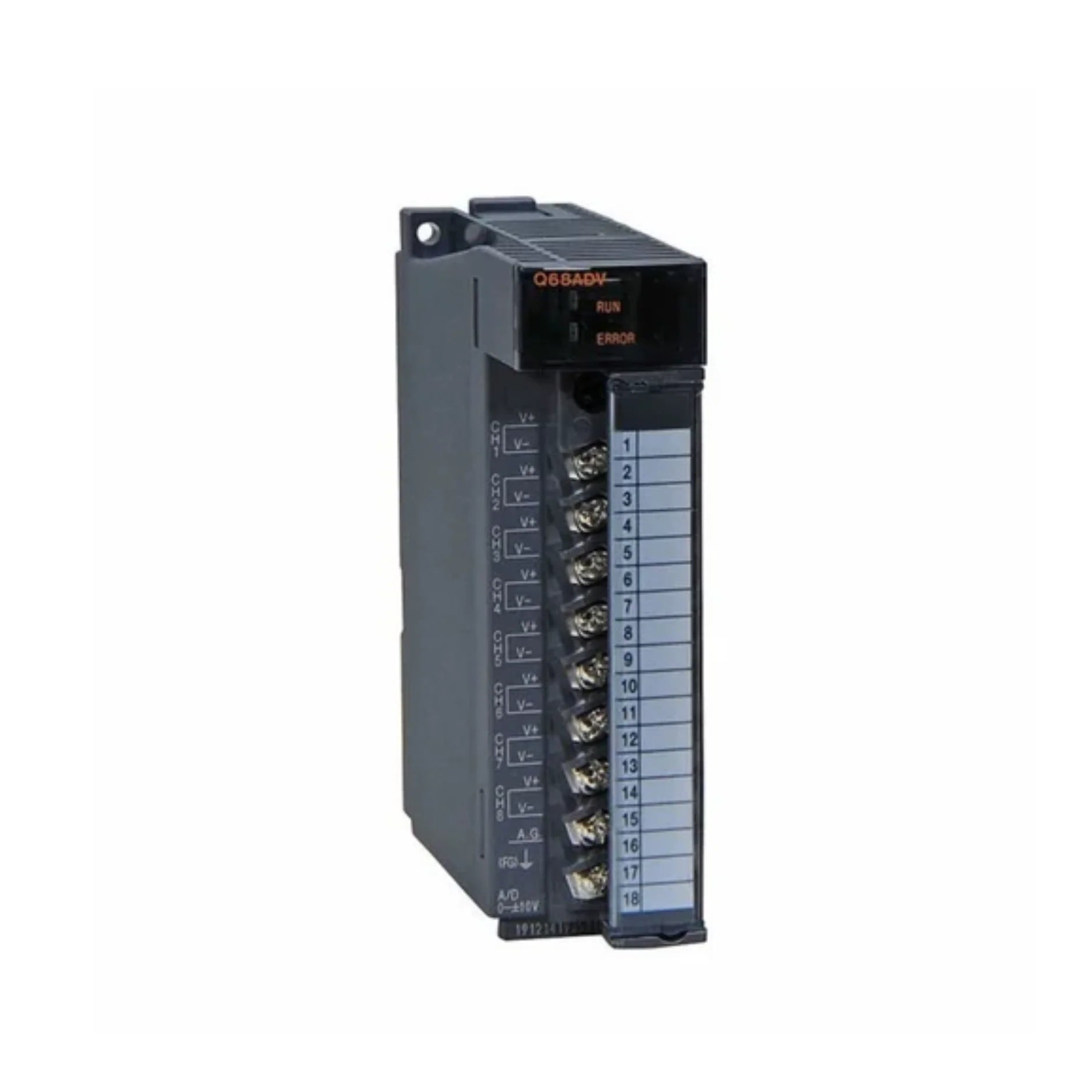

The Mitsubishi Q68ADV is a state-of-the-art, high-precision analog voltage input module meticulously engineered for the robust Mitsubishi MELSEC Q Series PLC platform. This essential component offers 8 differential input channels, providing unparalleled accuracy with its 16-bit resolution. Designed for versatility, it seamlessly integrates into diverse industrial automation systems by supporting multiple, software-selectable voltage ranges, including ±10V, 0–10V, and 1–5V. This flexibility ensures precise and reliable analog signal acquisition, making it an indispensable asset for demanding control and monitoring applications.

Key Features

• Input Channels: 8 independent analog voltage inputs for comprehensive data acquisition.
• Input Ranges: Highly adaptable with software-selectable ranges of ±10V, 0–10V, and 1–5V to accommodate various sensor types.
• Resolution: Exceptional 16-bit resolution (1/65,536 steps) captures even the most subtle signal changes with remarkable clarity.
• Conversion Speed: Rapid 1 ms/channel conversion speed ensures real-time data processing and responsive system control.
• Isolation: Photocoupler isolation between input channels and the system enhances safety and minimizes electrical noise interference.
• Status Indicators: Intuitive LED indicators provide immediate visual feedback on module and channel operational status for easy diagnostics.
• High Accuracy: Achieves an impressive ±0.3% full scale accuracy, guaranteeing reliable and precise measurements.

Technical Specifications

• Model: Q68ADV
• Series: Mitsubishi MELSEC Q Series
• Input Impedance: Approximately 1 MΩ, ensuring minimal signal loading.
• Signal Type: Exclusively designed for voltage signals, ensuring optimal performance.
• Power Supply: Reliably supplied directly from the base unit (5V DC), simplifying installation.
• Ambient Temperature: Operates efficiently within a broad range of 0°C to 55°C, suitable for industrial environments.
• Mounting: Designed for convenient rack mounting (requires a compatible base unit).
• Weight: Lightweight at approximately 0.2 kg (0.44 lbs), contributing to easy handling and installation.
• Certifications: Conforms to international standards, including CE and UL, ensuring quality and safety.

Applications

• Sensor and Transducer Signal Monitoring: Ideal for accurately monitoring a wide array of industrial sensors and transducers.
• Industrial Process Control: Essential for precise control loops requiring accurate analog input data.
• Precision Voltage Data Acquisition: Perfect for applications demanding high-resolution voltage data capture.
• Monitoring Analog Outputs from Third-Party Systems: Seamlessly integrates with and monitors analog signals from various external equipment.
• Integration with SCADA Systems: Provides reliable data for supervisory control and data acquisition systems, enhancing operational insight.

Why Choose This Model?

The Mitsubishi Q68ADV stands out as a superior choice for any industrial application demanding exceptional analog input capabilities. Its High Resolution of 16 bits allows for the detection of even the most minute signal fluctuations, crucial for critical processes. The module's Flexible Voltage Range, with software-selectable options, ensures compatibility with a vast array of sensors and existing equipment, maximizing its utility. Engineered for resilience, the Q68ADV offers Reliable Operation in even the most challenging industrial environments, promising long-term performance and reduced downtime. Furthermore, its Scalable Architecture ensures effortless integration within new or existing Q Series systems, facilitating future expansions and upgrades. Choose the Q68ADV for its blend of precision, versatility, and Mitsubishi Electric's renowned reliability.

Order Now

Elevate your industrial automation system with the Mitsubishi Q68ADV high-precision analog input module. This indispensable component is currently in stock and readily available for immediate dispatch. Benefit from our efficient global shipping services to receive your module wherever your operations are located. Enhance your control, improve your monitoring, and ensure the accuracy of your processes by securing this top-tier analog input solution today!
