Mitsubishi Q64DAN

Overview

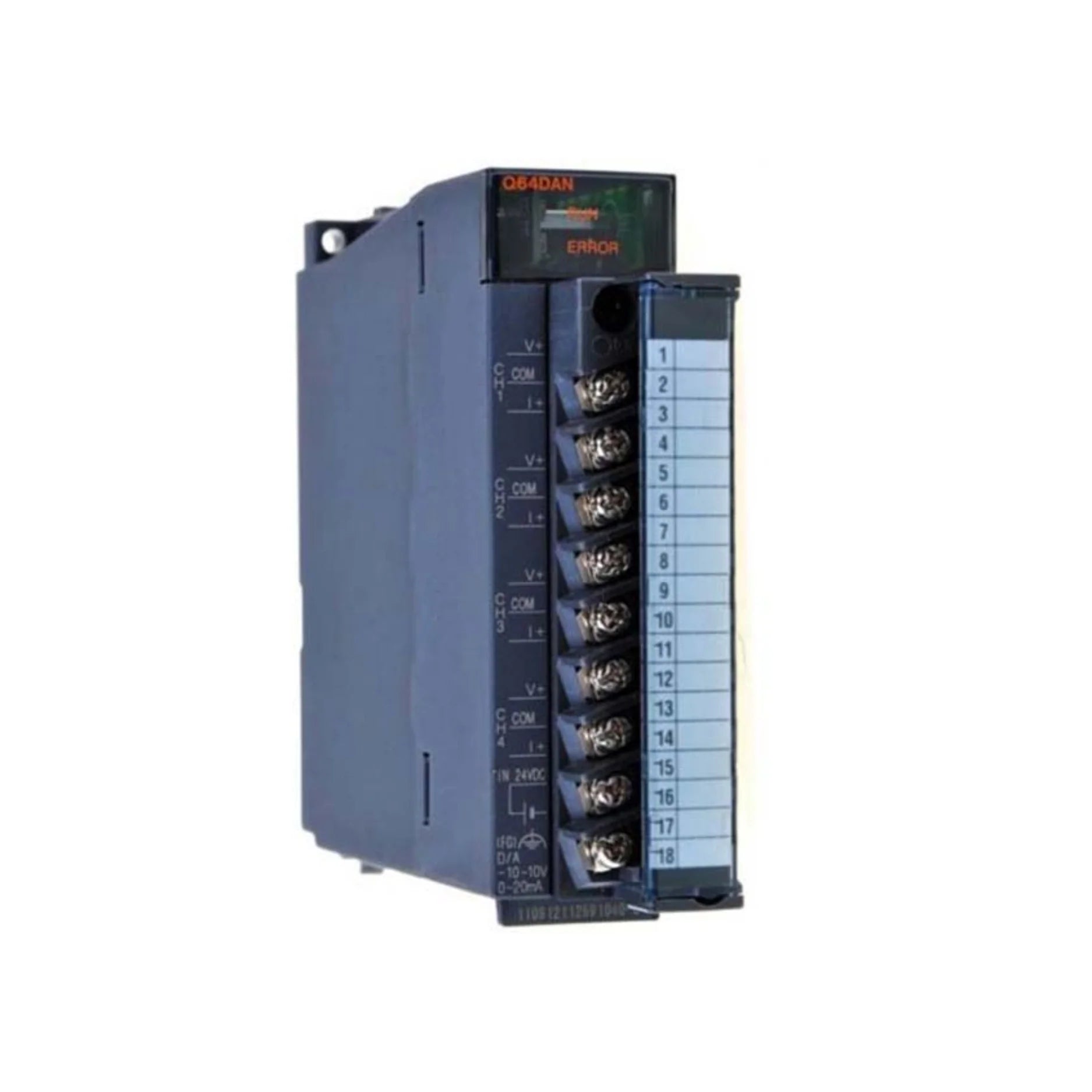

The Mitsubishi Q64DAN is a high-performance, 4-channel analog output module meticulously engineered for seamless integration with the robust Q Series PLC platform. This versatile module provides unparalleled control over a wide array of industrial automation tasks, offering both precise voltage and current output options. With its advanced 12-bit resolution, the Q64DAN ensures exceptionally accurate analog signal delivery, making it the ideal solution for precise command of actuators, proportional valves, and other critical analog devices within complex process control systems.

Key Features

• Output Channels: 4 independent channels for versatile connectivity.
• Signal Types: Comprehensive support for Voltage (±10V, 0–10V, 1–5V) and Current (4–20 mA) outputs, ensuring broad compatibility.
• Resolution: Superior 12-bit resolution (achieving 1/4096 steps) for incredibly fine and accurate control.
• Conversion Speed: Rapid 1 ms/channel conversion speed to maintain real-time system responsiveness.
• Output Accuracy: High precision with ±0.5% full scale accuracy for reliable operation.
• Channel Isolation: Enhanced system integrity and protection through channel-to-channel and system isolation.

Technical Specifications

• Model: Q64DAN
• Series: Mitsubishi MELSEC Q Series
• Output Range: Flexible output capabilities including ±10V, 0–10V, 1–5V, and 4–20 mA.
• Power Supply: Efficiently powered by 5V DC directly from the base unit.
• Ambient Operating Temperature: Designed for reliability in industrial environments, operating from 0°C to 55°C.
• Mounting: Conveniently base unit/rack-mounted for straightforward installation.
• Weight: Lightweight design at approximately 0.2 kg (0.44 lbs) for easy handling.
• Certifications: Compliant with international standards, holding CE and UL certifications.

Applications

The Mitsubishi Q64DAN analog output module is a cornerstone for precision control across numerous industrial sectors, including:

• Accurate actuator control in automated machinery.
• Fine-tuned proportional valve output for flow and pressure regulation.
• Seamless analog signaling to third-party devices for integrated system operations.
• Robust deployment in diverse process control systems requiring reliable analog outputs.
• Critical applications in flow, level, and temperature control where precision is paramount.

Why Choose This Model?

Elevate your automation capabilities with the Mitsubishi Q64DAN, a module designed for uncompromising performance and seamless integration:

• Dual Signal Output Versatility: Benefit from the flexibility of supporting both voltage and current outputs, enabling effortless integration into diverse control scenarios and expanding your system
