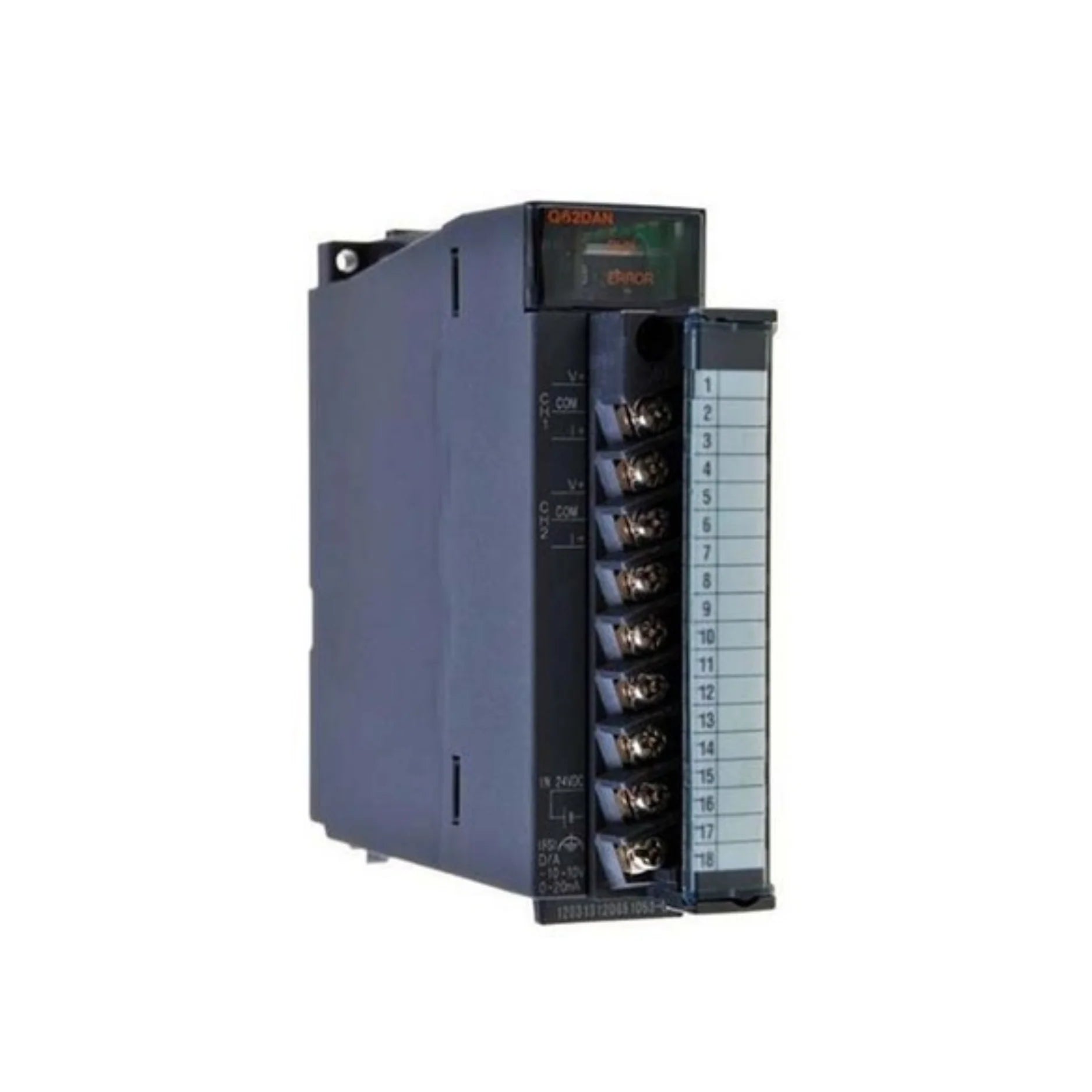

Mitsubishi Q62DAN

Overview

Elevate your industrial automation processes with the Mitsubishi Q62DAN, a sophisticated 2-channel analog output module meticulously engineered for seamless integration with MELSEC-Q Series Programmable Logic Controllers (PLCs). This exceptional module delivers unparalleled precision and adaptability, offering both voltage and current outputs to cater to a diverse array of applications demanding accurate analog signal manipulation. Designed for superior performance in demanding industrial environments, the Q62DAN is the ideal solution for achieving fine-grained control and reliable operation within your automated systems.

Key Features

• Dual-Channel Output: Equipped with 2 independent analog outputs, providing flexible control over multiple processes.
• Versatile Output Types: Supports a comprehensive range of voltage outputs (±10V, 0–10V, 0–5V, 1–5V) and current outputs (0–20mA, 4–20mA) to meet diverse application requirements.
• Exceptional Resolution: Offers both 12-bit (normal mode) and an impressive 16-bit (high-resolution mode) for incredibly precise analog signal generation, ensuring accuracy in critical applications.
• Rapid Conversion Speed: Achieves a swift conversion speed of 80 µs per channel, enabling real-time control and responsiveness.
• Robust Isolation: Features photocoupler isolation between I/O and the system, along with transformer isolation between the external power supply and analog output, guaranteeing enhanced safety and signal integrity in noisy industrial settings.
• Flexible Mounting: Designed for convenient installation with both DIN rail and panel mount options.
• MELSEC-Q Series Compatibility: Engineered for perfect compatibility and effortless integration with MELSEC-Q Series PLCs, ensuring a streamlined setup and operation.

Technical Specifications

• Model: Q62DAN
• Series: MELSEC-Q
• Power Supply: 24V DC (±20%)
• Current Consumption: 0.15 A
• Dimensions (W × H × D): 27.4 × 98 × 112 mm
• Weight: Approximately 0.19 kg
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Certifications: CE, UL, cUL, UKCA, EAC – ensuring compliance with international standards.
• Environmental Compliance: RoHS compliant, underscoring its commitment to environmental responsibility.

Applications

The Mitsubishi Q62DAN is an indispensable component across a wide spectrum of industrial applications, including:

• Process Control Systems: Essential for maintaining precise control over flow rates, temperatures, pressures, and other critical process variables.
• Analog Signal Control in Manufacturing: Optimizes various manufacturing operations requiring accurate analog output signals for machinery and equipment.
• HVAC Systems: Facilitates sophisticated control within heating, ventilation, and air conditioning systems, enhancing energy efficiency and comfort.
• Industrial Automation: A cornerstone for any automation setup demanding highly accurate and reliable voltage/current outputs for actuators, valves, and other controlled devices.

Why Choose This Model?

The Mitsubishi Q62DAN stands out as a premier choice for professionals seeking unparalleled performance and reliability in analog output control:

• Unmatched Precision: With flexible 12-bit and 16-bit resolution options, the Q62DAN guarantees superior accuracy for the most demanding control applications, minimizing errors and maximizing system efficiency.
• Exceptional Versatility: The broad spectrum of supported voltage and current output ranges provides ultimate flexibility, allowing this single module to adapt to diverse operational requirements and reduce the need for multiple specialized components.
• Built for Reliability: Engineered to withstand the rigors of industrial environments, this module offers consistent and dependable performance, ensuring operational continuity and reducing downtime.
• Seamless Integration: Designed for perfect compatibility with MELSEC-Q Series PLCs, the Q62DAN offers effortless integration, simplifying system design, programming, and maintenance.
• Global Compliance: Backed by numerous international certifications, this module assures adherence to global safety and quality standards, making it suitable for worldwide deployment.

Order Now

Unlock the full potential of your industrial automation with the Mitsubishi Q62DAN 2-Channel Analog Output Module. This powerful and precise module is readily available for global shipping, ensuring that you can enhance your control systems wherever you are. Contact us today to place your order and experience the difference that Mitsubishi Electric quality and innovation can make to your operations.
