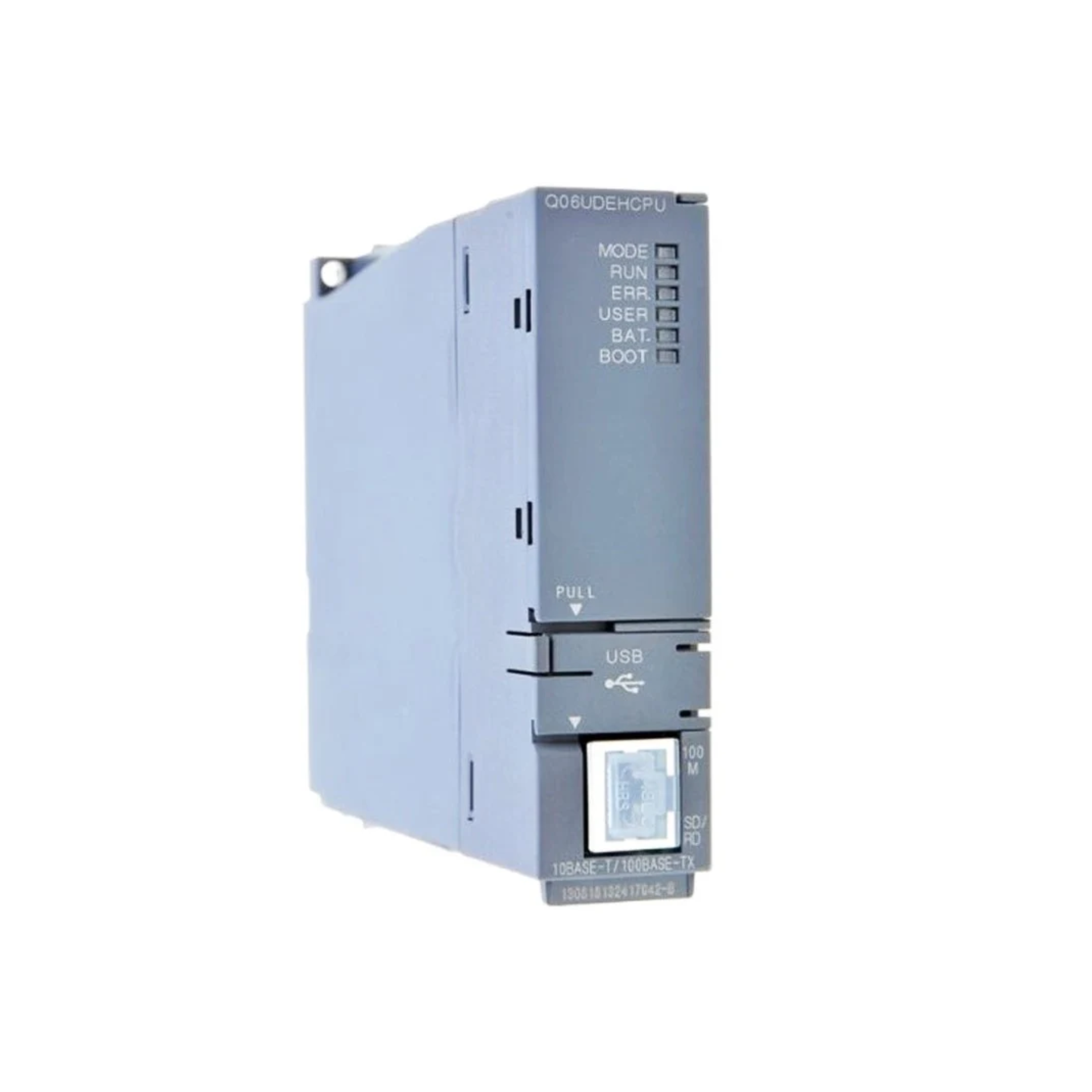

Mitsubishi Q06UDEHCPU

Overview

The Mitsubishi Q06UDEHCPU Universal PLC CPU Module, a cornerstone of the advanced MELSEC-Q Series, delivers unparalleled performance and reliability for modern industrial automation systems. Engineered for high-speed processing and robust control, this CPU module is ideal for applications demanding precision and efficiency. With a substantial 60K steps (240KB) of program memory, alongside integrated Ethernet and USB interfaces, the Q06UDEHCPU provides a flexible and powerful solution for complex control tasks across various industries.

Key Features

• Program Capacity: Generous 60K steps / 240KB for intricate program development.
• Processing Speed: Ultra-fast 9.5 ns per LD instruction ensures rapid execution of commands.
• Built-in Interfaces: Seamless connectivity with integrated Ethernet (10/100 Mbps) and USB ports.
• I/O Points: Supports an expansive 4096 local I/O points for comprehensive system integration.
• Memory Capacity: Equipped with 768KB standard RAM and 1024KB standard ROM for reliable data handling.
• SD Memory Card Slot: Expandable storage up to 8MB for programs and data, enhancing operational flexibility.
• Multi-CPU Support: Facilitates the creation of sophisticated and scalable system configurations.
• Mounting: Designed for convenient rack-mounting within existing Q Series base units.

Technical Specifications

• Model: Q06UDEHCPU
• Series: MELSEC-Q
• Power Supply: 5V DC (supplied from the base unit)
• Current Consumption: 0.39 A
• Dimensions (W x H x D): 27.4 x 98 x 89.3 mm
• Weight: Approximately 0.22 kg
• Operating Temperature: 0°C to 55°C
• Certifications: CE, UL compliant, ensuring global standards of quality and safety.

Applications

The versatility and high performance of the Mitsubishi Q06UDEHCPU make it an indispensable component across a multitude of industrial environments, including:

• Manufacturing Automation: Optimizing production lines and discrete processes.
• Process Control Systems: Managing complex chemical, oil & gas, and water treatment operations.
• Material Handling Equipment: Enhancing the efficiency of conveyors, robotics, and automated storage.
• Packaging Machinery: Ensuring precise and rapid control in high-speed packaging applications.
• Building Automation Systems: Integrating and managing HVAC, lighting, and security systems for smart buildings.

Why Choose This Model?

The Mitsubishi Q06UDEHCPU stands out as an exceptional choice for engineers and system integrators due to its advanced features and proven reliability:

• High-Speed Processing: Its industry-leading 9.5 ns instruction speed guarantees minimal latency and ultra-responsive control, critical for demanding applications.
• Integrated Communication: Built-in Ethernet and USB ports simplify network integration and programming, reducing setup time and enhancing connectivity.
• Flexible Memory Options: The inclusion of an SD memory card slot provides unparalleled flexibility for program storage and data logging, accommodating future expansion.
• Scalable I/O: Support for up to 4096 local I/O points allows for the creation of extensive and complex control systems without compromising performance.
• Reliable Performance: Built with Mitsubishi Electric's renowned quality, this module is engineered to withstand the rigors of demanding industrial environments, ensuring continuous and dependable operation.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi Q06UDEHCPU Universal PLC CPU Module. This high-performance module is readily available and poised for worldwide shipping, ensuring efficient delivery to your project site.
