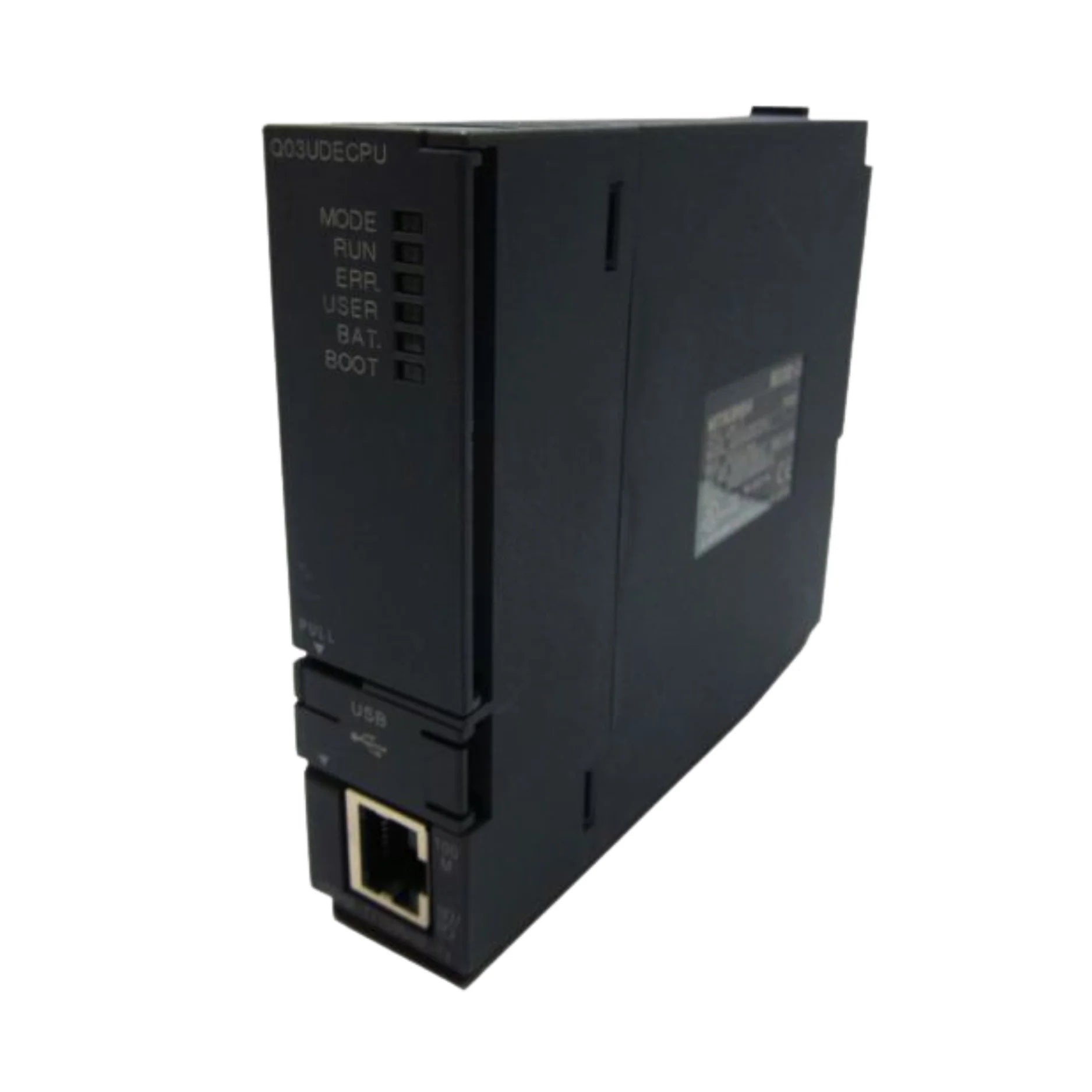

Mitsubishi Q03UDECPU

Overview

The Mitsubishi Q03UDECPU is a high-performance universal-type PLC CPU module from the renowned MELSEC-Q Series, meticulously engineered to deliver exceptional speed, versatile connectivity, and adaptable program capacity for a wide range of industrial automation applications. Boasting a robust 9k steps of program memory, integrated Ethernet and USB ports, and impressively fast scan times, the Q03UDECPU stands as an ideal choice for small to mid-sized automation systems demanding uncompromised efficiency, precision, and future expandability. This module consolidates advanced control capabilities with user-friendly features, making it a cornerstone for modern manufacturing and process control environments.

Key Features

• Program Capacity: Generous 9k steps, providing ample space for complex control logic and sequential operations.
• Memory Capacity: 120k bytes of RAM ensures swift data handling and program execution.
• Ultra-Fast Scan Time: An impressive 0.09 µs per instruction (basic) guarantees rapid response and enhanced system throughput.
• Integrated Connectivity:
  • 1x Ethernet port (100BASE-TX) for seamless network integration, data exchange, and remote monitoring.
  • 1x USB port (Mini-B) for convenient local programming, debugging, and data transfer.
• Universal Model Compatibility: Designed for effortless integration with a broad spectrum of existing MELSEC-Q modules, ensuring system flexibility and upgrade paths.
• Battery Backup: Integrated battery backup safeguards critical program data and RAM contents during power interruptions, ensuring operational continuity.
• Compact and Efficient Design: Engineered to fit perfectly within standard MELSEC-Q Series base units, optimizing panel space and simplifying installation.

Technical Specifications

• Model: Q03UDECPU
• Series: MELSEC-Q Series
• Power Supply: Reliably powered directly from the base unit backplane, simplifying wiring.
• I/O Points: Supports an expansive maximum of 8192 I/O points, accommodating diverse control requirements.
• Max I/O Modules: Capable of managing up to 64 I/O modules, allowing for significant system expansion.
• Mounting: Designed for secure and straightforward mounting in a standard base slot within a Q Series rack.
• Operating Temperature: Robustly designed for industrial environments, operating efficiently between 0°C to 55°C.
• Weight: Approximately 0.13 kg (0.29 lbs), facilitating easy handling and installation.
• Certifications: Compliant with international standards, holding CE, UL, and cUL certifications for quality and safety assurance.

Applications

The Mitsubishi Q03UDECPU is engineered for versatility and reliability across a multitude of industrial sectors, serving as the central control unit for:

• General-Purpose Machine Control: Ideal for precision control of various standalone machines and production equipment.
• Advanced Factory Automation Systems: Enhances the efficiency and responsiveness of complete automated production lines.
• Material Handling and Logistics: Optimizes operations in warehousing, conveyor systems, and robotic material transfer.
• High-Performance Packaging Machinery: Provides swift and accurate control for intricate packaging processes.
• Industrial Process Control: Ensures stable and precise regulation in chemical, food & beverage, and other process industries.

Why Choose This Model?

Opting for the Mitsubishi Q03UDECPU represents a strategic investment in robust, high-performance automation:

• Built-In Networking Capabilities: The integrated Ethernet port facilitates effortless data acquisition, remote diagnostics, and seamless communication with other factory systems, crucial for Industry 4.0 initiatives.
• Universal Compatibility and Scalability: Its inherent compatibility with the entire MELSEC-Q Series ecosystem ensures that your investment is future-proof, allowing for easy expansion and upgrades as your operational needs evolve.
• Unrivaled Processing Speed: The ultra-fast instruction execution significantly improves cycle times, leading to higher productivity and more efficient system operations.
• Proven Reliability and Expertise: Backed by Mitsubishi Electric's decades of leadership in industrial automation, this CPU module delivers consistent, dependable performance even in demanding environments. You're not just buying a component; you're investing in a legacy of engineering excellence and unparalleled support.
• Simplified Integration: Designed for straightforward integration into existing or new MELSEC-Q systems, minimizing setup time and complexity.

Order Now

Elevate your automation capabilities with the Mitsubishi Q03UDECPU Universal PLC CPU module. This essential component for high-performance industrial control is readily available and poised for immediate shipment to power your next project. For a broader array of choices within this respected family, we invite you to return to our Mitsubishi MELSEC-Q Series collection. Discover our comprehensive range of Mitsubishi MELSEC Programmable Controllers (PLC) to explore scalable automation solutions, spanning from reliable legacy MELSEC systems to cutting-edge, next-generation PLCs engineered for superior performance, advanced connectivity, and ultimate flexibility across all industrial applications.
