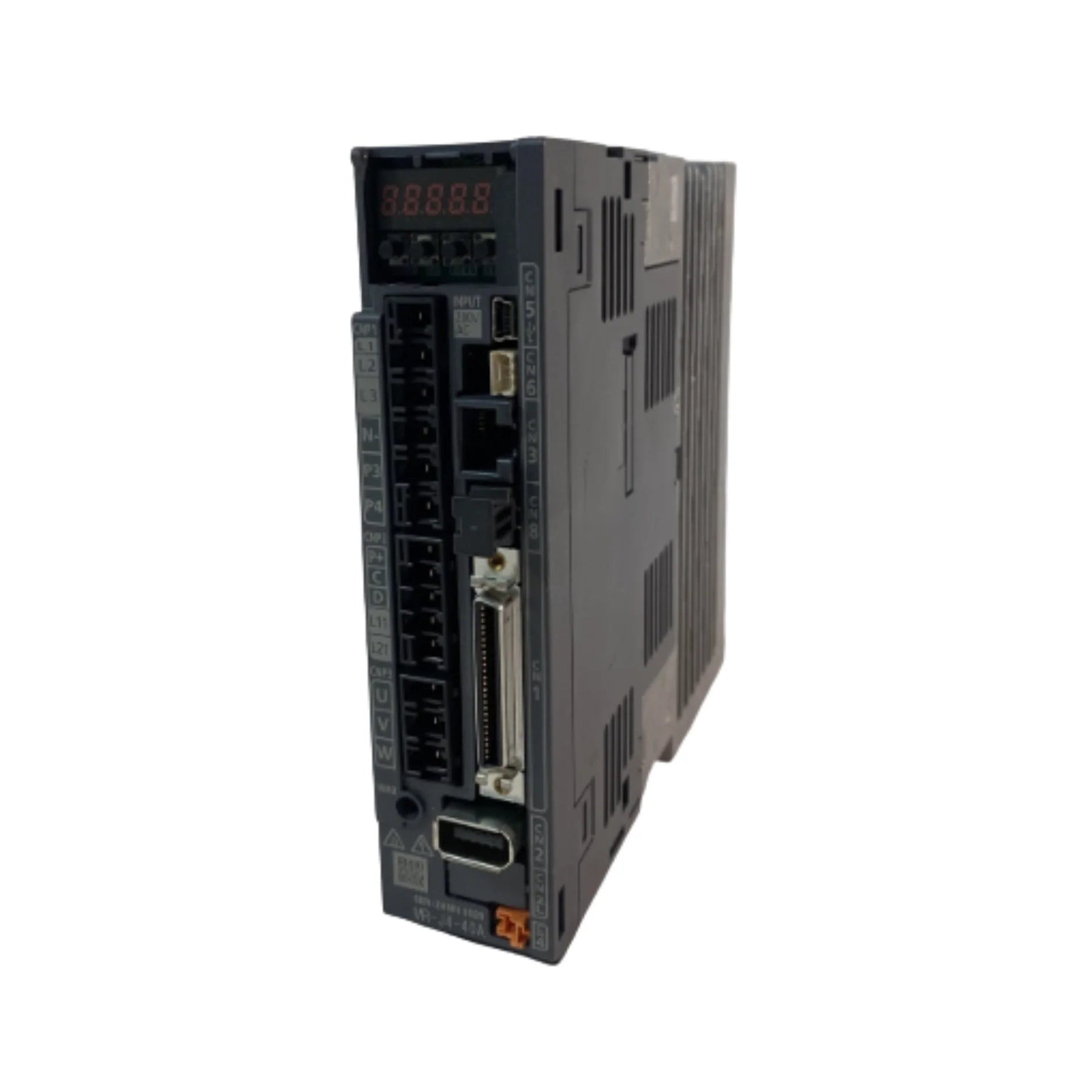

Mitsubishi MR-J4-40A-RJ

Overview

Experience unparalleled precision and robust performance with the Mitsubishi MR-J4-40A-RJ Servo Drive Amplifier. As a standout component of the acclaimed MR-J4 series, this 400 W servo amplifier is meticulously engineered to provide superior motion control for even the most demanding compact automation systems. Its advanced design incorporates SSCNET III/H network compatibility alongside user-friendly RJ-type connectors, guaranteeing not only swift and dependable communication within multi-axis configurations but also simplifying installation and upholding the highest safety standards. This unit is ideal for applications where space is at a premium but performance cannot be compromised, delivering fine-tuned control and responsiveness essential for modern industrial processes.

Key Features

• Series: MR-J4 – Part of Mitsubishi Electric's cutting-edge servo amplifier series, known for high performance and reliability.
• Rated Power: 400 W – Optimized for precise control in a wide range of compact machinery.
• Input Voltage: 3-phase 200–240 V AC – Ensures broad compatibility with industrial power supplies.
• Network Interface: SSCNET III/H via RJ-type connector – Facilitates high-speed, real-time communication for synchronized motion.
• Control Modes: Position, Speed, Torque – Offers versatile control options to suit diverse application requirements.
• Encoder Compatibility: 22-bit absolute/incremental – Guarantees exceptional precision and accuracy in feedback.
• Safety: Built-in Safe Torque Off (STO) – Enhances operational safety by preventing unexpected motor startup.
• Cooling: Fan-cooled – Maintains optimal operating temperatures for extended reliability.
• Mounting: DIN-rail or panel mount – Provides flexible installation options to integrate seamlessly into existing setups.

Technical Specifications

• Model Number: MR-J4-40A-RJ
• Rated Output Power: 400 W
• Continuous Output Current: ~2.3 A
• Peak Output Current: ~5.8 A
• Input Voltage: 200–240 V AC, 50/60 Hz
• Encoder Resolution: 22-bit precision
• Network Support: SSCNET III/H
• Protection Class: IP20
• Ambient Temperature: 0 °C to 55 °C
• Weight: ~1.2 kg
• Certifications: CE, UL, RoHS – Ensuring compliance with global industry standards.

Applications

The Mitsubishi MR-J4-40A-RJ servo drive is a versatile powerhouse, expertly designed to elevate the performance of various industrial applications demanding high precision and dependable motion:

• Compact Robotics and Pick-and-Place Systems: Provides the agility and accuracy needed for intricate robotic movements, optimizing efficiency in confined spaces.
• Multi-axis Automation Setups: Enables synchronized and coordinated control across multiple axes, crucial for complex manufacturing processes.
• Precision Positioning in Manufacturing: Ensures exact component placement and machining, critical for product quality and consistency.
• Packaging and Labeling Machinery: Delivers rapid and accurate control for high-speed operations, enhancing throughput and reducing errors.
• Intelligent Machine Tools: Powers advanced machine tools with the precision required for cutting-edge fabrication and assembly.

Why Choose This Model?

The Mitsubishi MR-J4-40A-RJ stands out as a superior choice for modern automation needs, offering a blend of performance, safety, and ease of use:

• Compact & Powerful: Despite its small form factor, this amplifier delivers exceptional power and performance, making it ideal for space-constrained environments without sacrificing capability.
• High-Speed Networking: Leveraging SSCNET III/H, it ensures ultra-low latency communication, which is vital for real-time control and synchronization in complex motion systems. This translates to smoother operations and faster response times.
• Safety Built-In: With integrated Safe Torque Off (STO) functionality, the MR-J4-40A-RJ meets stringent safety regulations, providing peace of mind and enhanced operational security for personnel and equipment.
• Seamless Integration: The implementation of RJ-type connectors greatly simplifies wiring and installation, reducing setup time and potential for errors. This allows for quicker deployment and easier maintenance.
• Precise Control: Equipped with a 22-bit encoder, this servo drive supports incredibly fine motion control, allowing for highly accurate positioning and smooth, nuanced movements—essential for applications demanding the utmost precision.

Order Now

Elevate your automation systems with the precision and reliability of the Mitsubishi MR-J4-40A-RJ servo amplifier. This high-performance component is readily available and ships worldwide, ensuring you can enhance your operations regardless of your location. For a comprehensive range of high-performance motion control solutions, we invite you to explore our extensive Mitsubishi Servo Drivers collection. Additionally, to discover other innovative automation equipment from this leading manufacturer, please visit our dedicated Mitsubishi Main Category. Invest in Mitsubishi Electric
