Mitsubishi MR-J4-350B-RJ

Overview

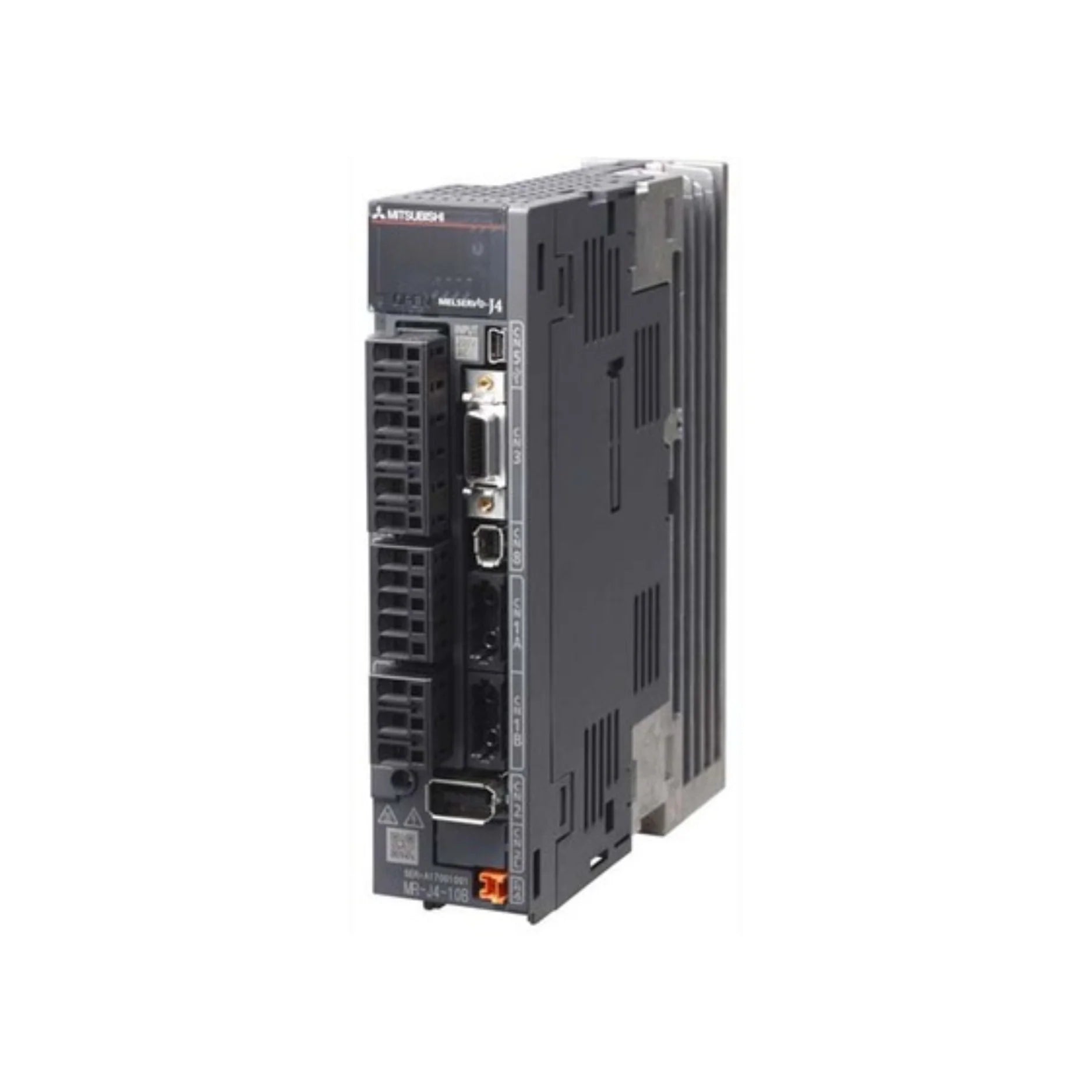

The Mitsubishi MR-J4-350B-RJ is a state-of-the-art servo amplifier from the renowned MR-J4 series, engineered to meet the stringent demands of modern industrial automation. This robust unit delivers a substantial 3.5 kW of output power at 200V, making it exceptionally well-suited for high-precision and high-speed motion control applications. Its integration of ultra-fast SSCNET III/H fiber-optic communication ensures real-time data exchange and seamless system synchronization. With advanced functionalities like one-touch auto-tuning, sophisticated vibration suppression, and integrated safety features, the MR-J4-350B-RJ is a cornerstone for building dynamic, accurate, and reliable motion systems across various industries. Its compact book-type form factor allows for flexible installation, whether on a DIN rail or panel, optimizing space within control cabinets.

Key Features

• High Power Output: Provides a rated output of 3.5 kW at 200 V, offering ample power for demanding applications.
• Ultra-Fast Communication: Utilizes the SSCNET III/H fiber-optic network for unparalleled communication speed and responsiveness.
• Intelligent Tuning: Features one-touch auto-tuning and advanced vibration suppression for optimal performance and stability without complex manual adjustments.
• Integrated Safety: Incorporates Safe Torque Off (STO) functionality, compliant with IEC 61800-5-2, ensuring enhanced operational safety.
• Versatile Control Modes: Supports high-performance position, speed, and torque control modes to accommodate diverse application requirements.
• Compact Design: Book-type form factor allows for efficient space utilization, mountable on both DIN rails and panels.
• Seamless Compatibility: Fully compatible with Mitsubishi HG and HF series servo motors, ensuring flexible system integration.
• Intuitive Configuration: Supported by MR Configurator2 software for easy monitoring, parameter setup, and diagnostics.

Technical Specifications

• Rated Output: 3.5 kW
• Input Voltage: 200–230 V AC (single/three-phase)
• Communication Interface: SSCNET III/H (optical fiber)
• Control Type: Fully digital PWM (Pulse Width Modulation)
• Safety Function: STO (Safe Torque Off)
• Cooling Method: Natural convection
• Ambient Temperature Range: 0 to 55 °C

Applications

The Mitsubishi MR-J4-350B-RJ servo amplifier is a versatile solution for a broad spectrum of industrial applications that demand high precision, speed, and reliability:

• High-Speed Pick-and-Place Systems: Enables rapid and accurate material handling in automated assembly lines.
• Precision Robotics and Assembly Machines: Powers robotic arms and automated mechanisms requiring exact movements and complex trajectory control.
• Semiconductor Manufacturing Stages: Provides the critical control for intricate wafer handling and processing equipment where micron-level accuracy is paramount.
• Labeling, Printing, and Converting Machinery: Ensures precise web tension control, registration, and material feeding in high-throughput printing and packaging operations.
• General Motion Control: Ideal for any high-torque, high-precision motion setups where dynamic performance and reliable operation are non-negotiable.

Why Choose This Model?

The Mitsubishi MR-J4-350B-RJ stands out as a superior choice for advanced motion control systems due to its unique combination of power, precision, and intelligent features:

• Exceptional Performance: Delivers high output power in a compact design, maximizing performance without sacrificing space.
• Unmatched Communication Speed: The ultra-fast SSCNET III/H communication ensures minimal latency and precise synchronization across your entire motion system.
• Effortless Operation: With one-touch auto-tuning and integrated vibration suppression, achieving stable and optimal operation is simplified, reducing setup time and maintenance.
• Enhanced Safety: The built-in Safe Torque Off (STO) function provides peace of mind, ensuring compliance with international safety standards.
• Seamless Integration: Designed for seamless compatibility with Mitsubishi's comprehensive range of HF/HG servo motors and existing motion control systems, facilitating easy upgrades and expansions. Choose the MR-J4-350B-RJ for a reliable and efficient solution that elevates the capabilities of your automation infrastructure.

Order Now

Elevate the precision, speed, and reliability of your industrial automation systems with the Mitsubishi MR-J4-350B-RJ servo amplifier. This powerful and sophisticated unit is engineered to deliver peak performance in the most demanding applications. Take the next step towards enhanced operational efficiency and control. Explore the complete range of Mitsubishi Servo Drivers and other high-performance automation equipment within our extensive catalog. For further information or to place an order, contact us today and secure a competitive edge in your industry.
