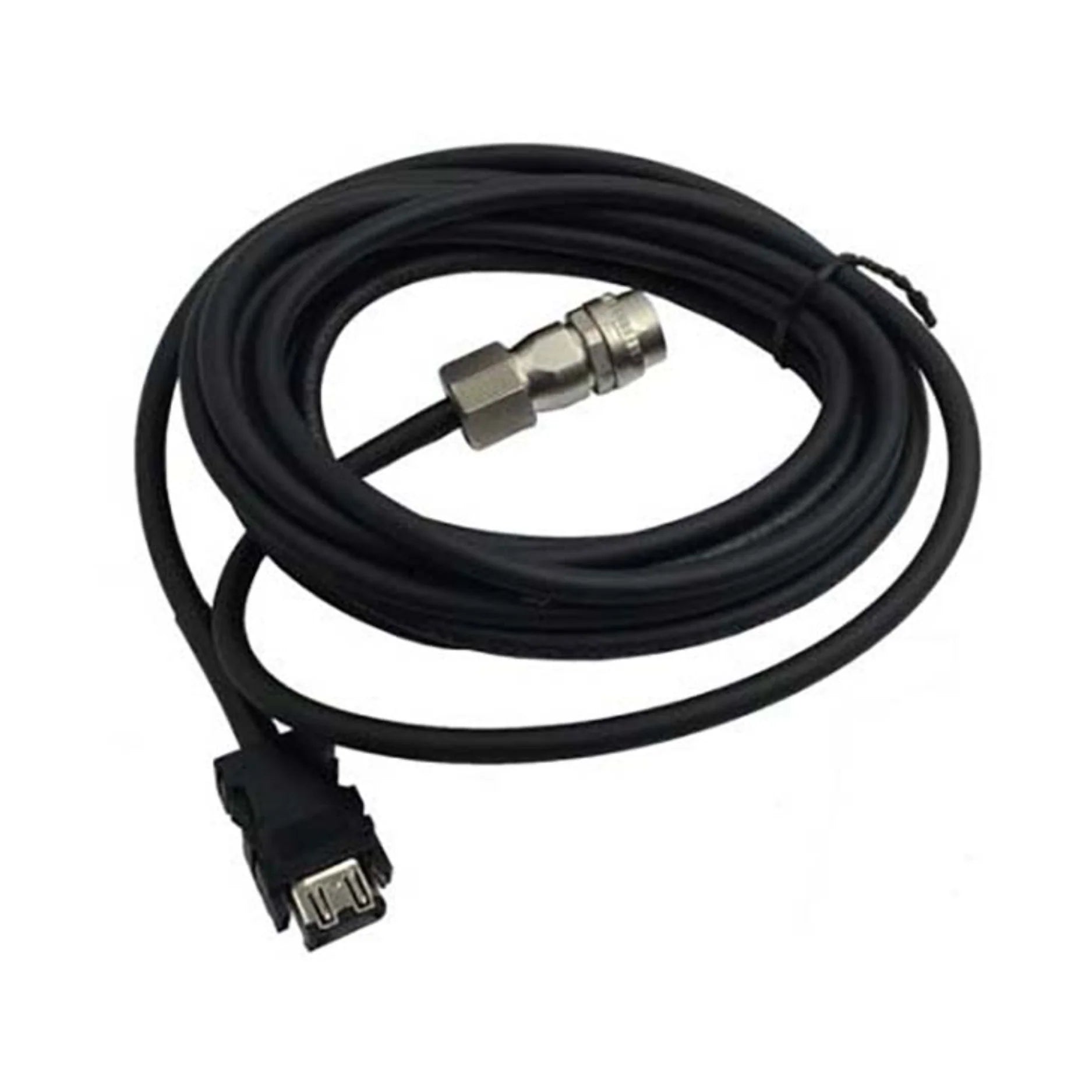

Mitsubishi MR-J3ENSCBL‑15M‑H

Overview

The Mitsubishi MR-J3ENSCBL-15M-H is a premium 15-meter servo encoder cable meticulously engineered to deliver uncompromising performance and reliability within demanding industrial motion control systems. Specifically designed for seamless integration with Mitsubishi Electric's renowned MR-J3 series servo motors and amplifiers, this cable facilitates high-speed, accurate signal transmission crucial for precise encoder feedback. Its robust construction, featuring a straight ("H") pre-molded connector and high-flex design, ensures unparalleled durability and consistent operation even in dynamic and challenging environments. This cable is the ideal solution for applications requiring extended reach without sacrificing signal integrity or mechanical resilience.

Key Features

• Cable Type: Dedicated servo encoder feedback cable for critical positional data.
• Length: Generous 15-meter length provides exceptional flexibility for diverse machine layouts and extended installations.
• Connector Style: Equipped with a straight ("H") pre-molded connector, designed for secure and strain-free connections.
• Compatible Series: Optimally designed for perfect compatibility with Mitsubishi MR-J3 series servo amplifiers and motors.
• Design: Features a high-flex PVC sheath, engineered for sustained dynamic movement and repeated bending cycles.
• Shielding: Incorporates advanced braided EMI shielding to effectively suppress electromagnetic interference, ensuring pristine signal quality.
• Temperature Range: Operates reliably across a broad temperature spectrum, from -10 °C to 60 °C.
• Durability: Constructed with oil and abrasion-resistant materials for extended lifespan in harsh industrial settings.

Technical Specifications

• Model Number: MR-J3ENSCBL-15M-H
• Cable Length: 15 m
• Application: Dedicated encoder signal cable for Mitsubishi MR-J3 servo systems.
• Connector Type: Straight end (H) molding
• Operating Temperature: –10 °C to 60 °C
• Insulation Resistance: ≥ 100 MΩ
• Voltage Rating: 300 V
• Sheath: High-flex, oil-resistant PVC
• Minimum Bend Radius: ≥ 10× cable diameter
• Certifications: RoHS compliant

Applications

The Mitsubishi MR-J3ENSCBL-15M-H encoder cable is ideally suited for a wide array of demanding industrial applications where precision, reliability, and flexibility are paramount:

• Robotics and Motion Systems: Essential for accurate encoder feedback in complex robotic arms and advanced motion control setups.
• Long-Distance Installations: Perfect for machine tool environments and large-scale automation where extended cable runs are unavoidable.
• High-Flex Cable Chains: Designed to excel in dynamic mover configurations and energy chains, withstanding constant movement.
• OEM Machinery: Integrates seamlessly into new original equipment manufacturer (OEM) machinery utilizing MR-J3 servo systems.
• Maintenance and Replacement: An indispensable component for crucial maintenance and replacement operations, ensuring continuous production.

Why Choose This Model?

Opting for the Mitsubishi MR-J3ENSCBL-15M-H is a strategic decision for engineers and system integrators seeking peak performance and longevity:

• Extended Reach: The generous 15-meter length offers unparalleled versatility in machine layout and installation planning, overcoming space constraints.
• Unyielding Signal Integrity: Advanced EMI shielding actively safeguards encoder signals, preventing data loss or degradation in electrically noisy environments.
• Exceptional Durability: Built to withstand the rigors of industrial use, its high-flex, oil, and abrasion-resistant construction guarantees a prolonged operational life.
• Flawless Compatibility: Guaranteed perfect integration and optimal performance when paired with Mitsubishi Electric's MR-J3 series servo drives and motors.
• User-Centric Design: The straight connector design simplifies installation and effectively minimizes strain on both the cable and connected servo components, enhancing system reliability.

Order Now

Secure the critical link for your high-performance motion control system. The Mitsubishi MR-J3ENSCBL-15M-H servo encoder cable is currently in stock and readily available for worldwide shipping. Enhance the precision and reliability of your MR-J3 servo systems today. Explore our comprehensive selection of Mitsubishi Electric Industrial Automation Products, including servo motors, drives, human-machine interfaces (HMIs), and a full range of cables and automation solutions tailored to meet the exacting demands of modern factory automation and motion control. Contact us to place your order or for expert assistance in selecting the optimal components for your application.
