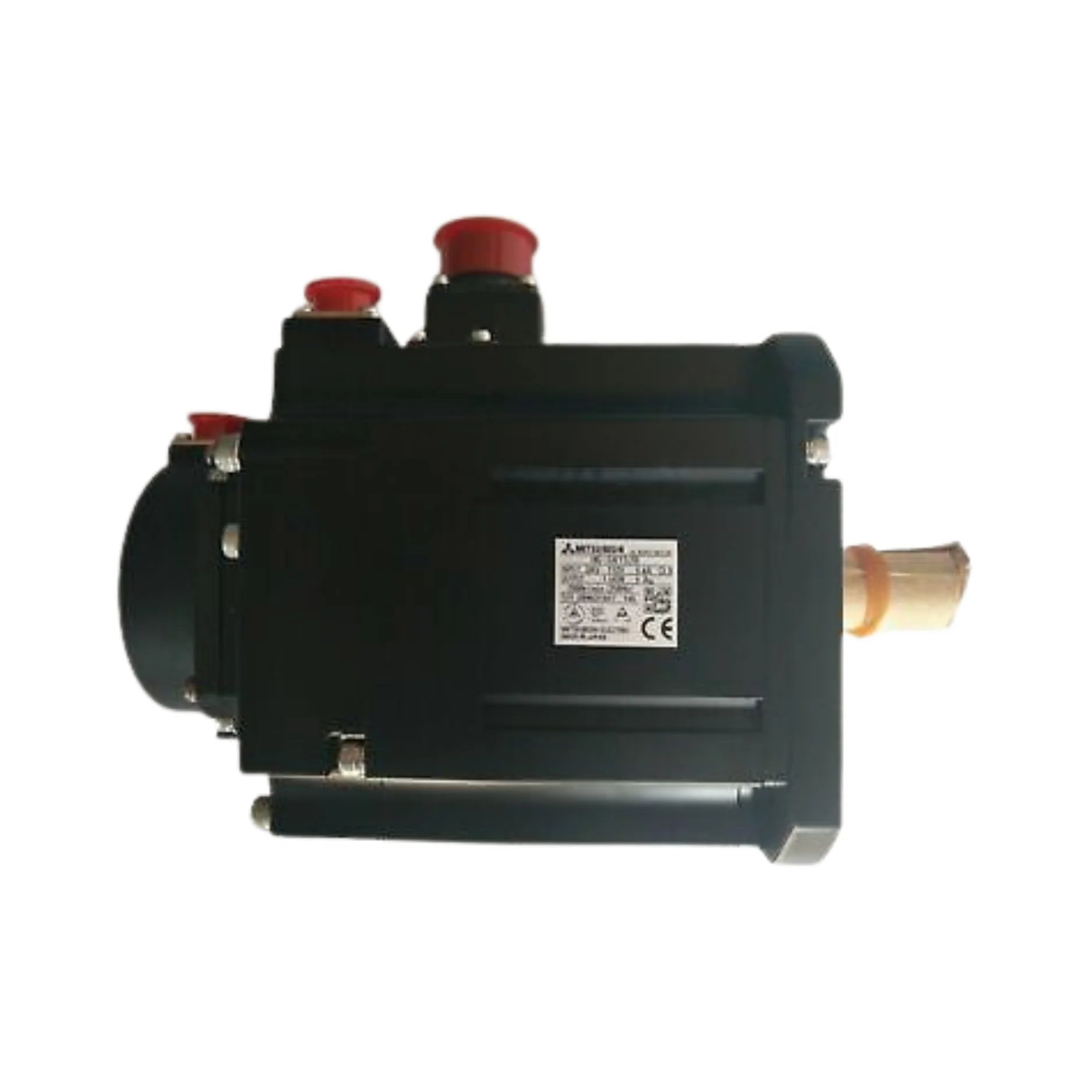

Mitsubishi HG-SR152B

Overview

The Mitsubishi HG-SR152B is a high-performance AC servo motor engineered for precision and reliability in demanding industrial applications. As a prominent member of the renowned HG-SR series, this 1.5 kW servo motor delivers exceptional torque and responsiveness, making it an ideal choice for machinery requiring dynamic and accurate motion control. Its robust design and advanced features ensure seamless integration and superior performance within various automation systems, upholding Mitsubishi Electric's reputation for quality and innovation.

Key Features

• Power Rating: 1.5 kW, providing ample power for a wide range of tasks.
• Rated Speed: 3000 rpm, enabling high-speed operation and increased productivity.
• Encoder: Equipped with a 22-bit absolute encoder (4,194,304 pulses/revolution) for unparalleled positioning accuracy.
• High-Torque Design: Specifically engineered for medium-inertia loads, ensuring stable and powerful operation.
• Shaft Configuration: Features a shaft with a key, suitable for various mechanical connections, and without an oil seal for specific application needs.
• Mounting: Flange mount configuration allows for easy and secure installation.
• Compatibility: Fully compatible with Mitsubishi MR-J4 servo amplifiers, guaranteeing optimal system performance and simplified integration.
• Durability: Compact and rugged IP65-rated housing (excluding the shaft) offers excellent protection against dust and water ingress, ensuring longevity in harsh industrial environments.

Technical Specifications

• Model Number: HG-SR152B
• Output Power: 1.5 kW
• Voltage: 200 V AC
• Rated Torque: Approximately 4.77 Nm
• Max Torque: Approximately 14.3 Nm
• Rotor Inertia: 1.81 × 10⁻⁴ kg·m²
• Encoder Type: Absolute, 22-bit resolution
• Cooling: Natural cooling for reliable operation.
• Mounting: Flange
• Protection Class: IP65 (excluding shaft), providing robust environmental resistance.
• Operating Temperature: 0 °C to +40 °C
• Certifications: CE, UL, RoHS compliant, ensuring adherence to international quality and safety standards.

Applications

The Mitsubishi HG-SR152B servo motor is versatile and highly effective across a multitude of industrial sectors, empowering advanced automation:

• Industrial Robots and Machinery: Enhances the precision and speed of robotic arms and automated manufacturing equipment.
• Packaging and Labeling Equipment: Provides accurate and rapid control for efficient packaging lines.
• Conveyor and Transport Systems: Ensures smooth and reliable material handling and logistics.
• CNC and Material Processing Machines: Delivers the precise motion control critical for cutting, shaping, and machining operations.
• High-Precision Motion Control Systems: Ideal for any application where exact positioning and dynamic response are paramount.

Why Choose This Model?

Opting for the Mitsubishi HG-SR152B servo motor offers significant advantages for your industrial automation needs:

• High-Performance: Engineered for 1.5 kW applications demanding superior performance and reliability.
• Exceptional Positioning: The 22-bit absolute encoder guarantees class-leading accuracy and repeatability, crucial for intricate tasks.
• Built for Durability: Designed to withstand harsh industrial environments, ensuring a long operational lifespan and minimal downtime.
• Seamless Integration: Guarantees optimal performance and easy setup with existing Mitsubishi servo systems, simplifying system design and maintenance.
• Versatile Use: Perfectly suited for a broad spectrum of medium-to-high torque applications, offering flexibility and broad applicability.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi HG-SR152B servo motor. This high-quality, high-performance unit is available for immediate order and ships worldwide. Explore our comprehensive Mitsubishi Servo Motor HG Series collection to discover additional models and options tailored to your specific requirements. Expand your search within our full range of Mitsubishi Servo Motors, renowned for delivering precision, high torque density, and cutting-edge motion control solutions essential for modern industrial processes.
