Mitsubishi HG-KR23K

Overview

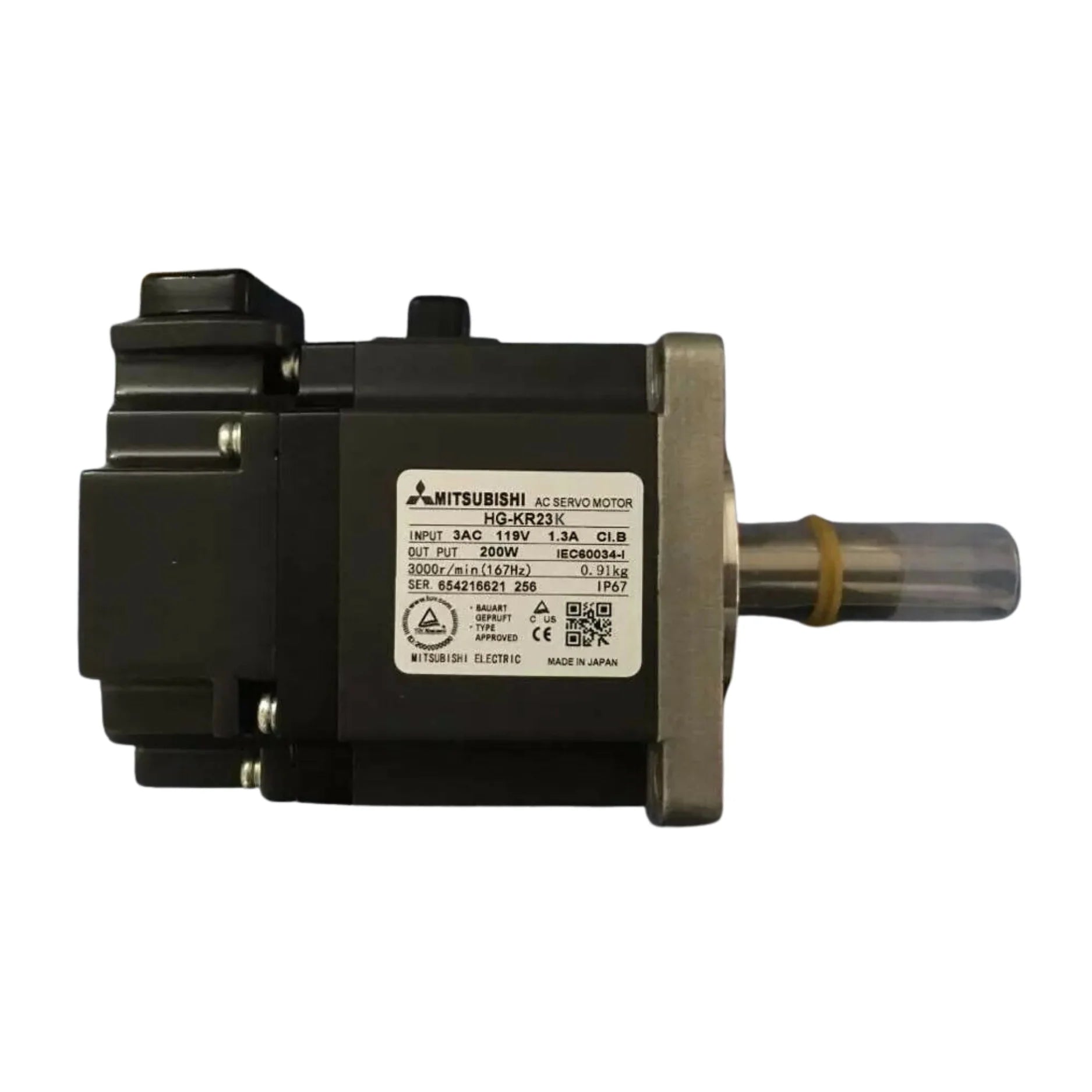

The Mitsubishi HG-KR23K is a state-of-the-art 200 W servo motor from the renowned HG-KR series, meticulously engineered to meet the stringent demands of modern industrial automation. This compact powerhouse delivers exceptional precision, rapid response, and impressive speed, making it an indispensable component for applications where space-saving design is paramount. Featuring an advanced incremental encoder and a robust keyed shaft, the HG-KR23K seamlessly integrates into a diverse array of compact automation systems, ensuring reliable and high-performance operation.

Key Features

• Output Power: A dynamic 200 W, providing ample power for demanding tasks.
• Rated Speed: Achieves a consistent 3000 rpm for efficient operation.
• Max Speed: Capable of reaching up to 6000 rpm, offering flexibility for high-speed applications.
• Encoder Type: High-resolution 22-bit incremental encoder ensures precise positioning and feedback.
• Shaft: Durable keyed shaft, designed for secure coupling without an oil seal, simplifying installation.
• Low Inertia: Engineered for remarkably low inertia, guaranteeing superior response performance and agility.
• IP65 Protection: Robust IP65 rated protection (excluding the shaft) ensures durability in challenging industrial environments.
• Compatibility: Perfectly compatible with MR-J4 servo amplifiers, ensuring seamless system integration.
• Design: Compact, flange-mounted design optimizes space utilization in crowded machinery.

Technical Specifications

• Model Number: HG-KR23K
• Rated Torque: Approximately 0.64 Nm, providing consistent operational force.
• Max Torque: Approximately 1.9 Nm, offering significant peak power when required.
• Rotor Inertia: 0.046 × 10⁻⁴ kg·m², contributing to its agile performance.
• Voltage: Operates efficiently at 200 V AC.
• Encoder: 22-bit incremental for ultra-fine control and accuracy.
• Cooling: Utilizes natural convection for reliable thermal management.
• Mounting: Flange mounting for secure and straightforward installation.
• Operating Temperature: Designed to perform optimally within a range of 0 °C to +40 °C.
• Certifications: Complies with global standards including CE, UL, and RoHS, ensuring quality and safety.

Applications

• Compact Robotics and Actuators: Ideal for precision movement in miniature robotic systems and actuation mechanisms.
• Semiconductor and Electronics Manufacturing: Essential for high-accuracy positioning in critical production processes.
• Labeling and Packaging Equipment: Enhances speed and accuracy in automated labeling and packaging lines.
• Pick-and-Place Automation: Powers fast and precise material handling in automated assembly tasks.
• Precision Small Machinery: Perfect for driving small-scale machinery where accuracy and compact design are critical.

Why Choose This Model?

The Mitsubishi HG-KR23K stands out as an exceptional choice for engineers and manufacturers seeking unparalleled performance in a compact footprint. Its high responsiveness, enabled by low inertia, ensures dynamic and agile operation. The motor's reliable performance is underpinned by precise positioning capabilities, crucial for sensitive applications. The robust keyed shaft design guarantees secure and stable coupling, minimizing slip and maximizing power transfer. Furthermore, its compact dimensions make it an ideal solution for systems with limited available space, without compromising on power or precision. Engineered for seamless integration, the HG-KR23K is designed to work harmoniously within existing Mitsubishi servo systems, simplifying setup and optimizing overall system efficiency.

Order Now

Elevate your automation capabilities with the Mitsubishi HG-KR23K servo motor. This highly sought-after model is readily available and ready to ship worldwide, ensuring that your projects stay on schedule, no matter your location. For a wider selection of high-performance options within the same family, we invite you to explore our comprehensive Mitsubishi Servo Motor HG Series collection. Discover our complete inventory of Mitsubishi Servo Motors, where precision engineering meets robust design to deliver unparalleled torque density and advanced motion control solutions for the most demanding industrial automation challenges.
