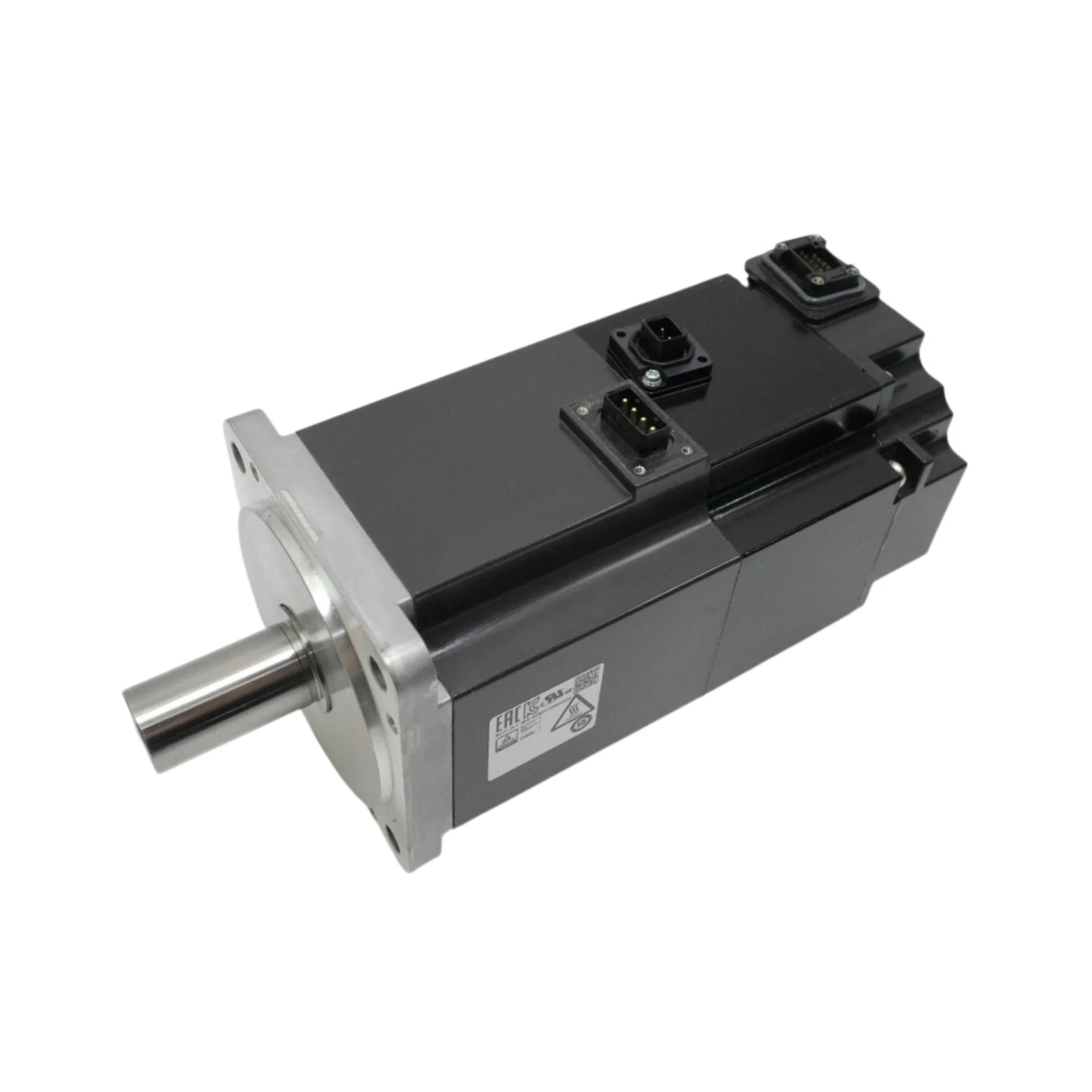

Mitsubishi HG-KR23G7

Overview

Experience unparalleled precision and dynamic performance with the Mitsubishi HG-KR23G7 servo motor. As a cornerstone of the esteemed HG-KR series, this compact 200W rotary servo motor is engineered to deliver exceptional control and responsiveness in a wide array of demanding applications. Its robust design, coupled with a rated speed of 3,000 rpm and an incremental encoder, ensures smooth, accurate operation, making it an ideal choice for machinery and automation systems where space is at a premium and reliability is paramount. The HG-KR23G7 stands as a testament to Mitsubishi Electric's commitment to advanced automation solutions, providing a seamless blend of power, precision, and compact form factor.

Key Features

• Power Rating: 200 W output, providing ample power for precise tasks.
• Rated Speed: 3,000 rpm for high-speed operation and dynamic response.
• Maximum Speed: Capable of reaching 6,000 rpm for bursts of intense performance.
• Encoder Type: Incremental encoder (4,096 pulses/rev) ensures highly accurate feedback and control.
• Compact Design: Flange-mount configuration optimizes space utilization in tight installations.
• Low Inertia: Engineered for rapid acceleration and deceleration, crucial for high-response applications.
• Shaft Configuration: Features a shaft with a key, designed without an oil seal for reduced maintenance.
• System Compatibility: Optimally designed for seamless integration with Mitsubishi MR-J4 servo amplifiers.

Technical Specifications

• Model Number: HG-KR23G7
• Power Output: 200 W
• Voltage: 200 V AC
• Rated Torque: Approximately 0.64 Nm, providing stable rotational force.
• Maximum Torque: Approximately 1.9 Nm for overcoming peak loads.
• Rotor Inertia: 0.046 × 10⁻⁴ kg·m², indicating excellent dynamic characteristics.
• Encoder: Incremental, with 4,096 pulses per revolution for precise positional feedback.
• Protection Class: IP65 (excluding shaft), offering protection against dust and jets of water.
• Cooling Method: Natural cooling, ensuring reliable performance without external cooling systems.
• Mounting: Flange-mounted for secure and stable installation.
• Ambient Temperature Range: 0 °C to +40 °C, suitable for typical industrial environments.
• Certifications: CE, UL, RoHS compliant, affirming adherence to international standards.

Applications

The Mitsubishi HG-KR23G7 servo motor is engineered for excellence across a diverse range of industrial sectors:

• Compact Robotic Arms: Enhances agility and precision in confined spaces.
• Precision Conveyor Systems: Ensures accurate and smooth material handling.
• Semiconductor and Electronic Assembly: Critical for high-accuracy pick-and-place operations.
• Labeling and Packaging Machines: Facilitates rapid and consistent product processing.
• Light-Load Motion Control Applications: Provides reliable control for intricate movements.

Why Choose This Model?

Selecting the Mitsubishi HG-KR23G7 means investing in a solution that brings tangible benefits to your operations:

• Optimized for Small-Scale Precision: Perfectly suited for systems requiring minute, accurate motion control.
• Reliable Incremental Feedback: Guarantees consistent and trustworthy performance with its advanced encoder.
• Space-Saving Efficiency: Its compact and efficient design is ideal for installations where every inch counts.
• Seamless System Integration: Engineered for effortless compatibility with existing Mitsubishi servo drives, streamlining setup and operation.
• Backed by Mitsubishi Expertise: Leverage the robust support and innovation of Mitsubishi Electric's renowned automation platform.

Order Now

Elevate your automation capabilities with the Mitsubishi HG-KR23G7 compact servo motor. This high-performance component is readily available and ready for worldwide shipment, ensuring your projects stay on schedule, no matter your location. For a broader selection, we invite you to explore our comprehensive Mitsubishi Servo Motor HG Series collection. Discover the full spectrum of Mitsubishi Servo Motors, each designed to deliver unmatched precision, superior torque density, and cutting-edge motion control solutions for the most demanding industrial automation challenges.
