Mitsubishi HG-KR23

Overview

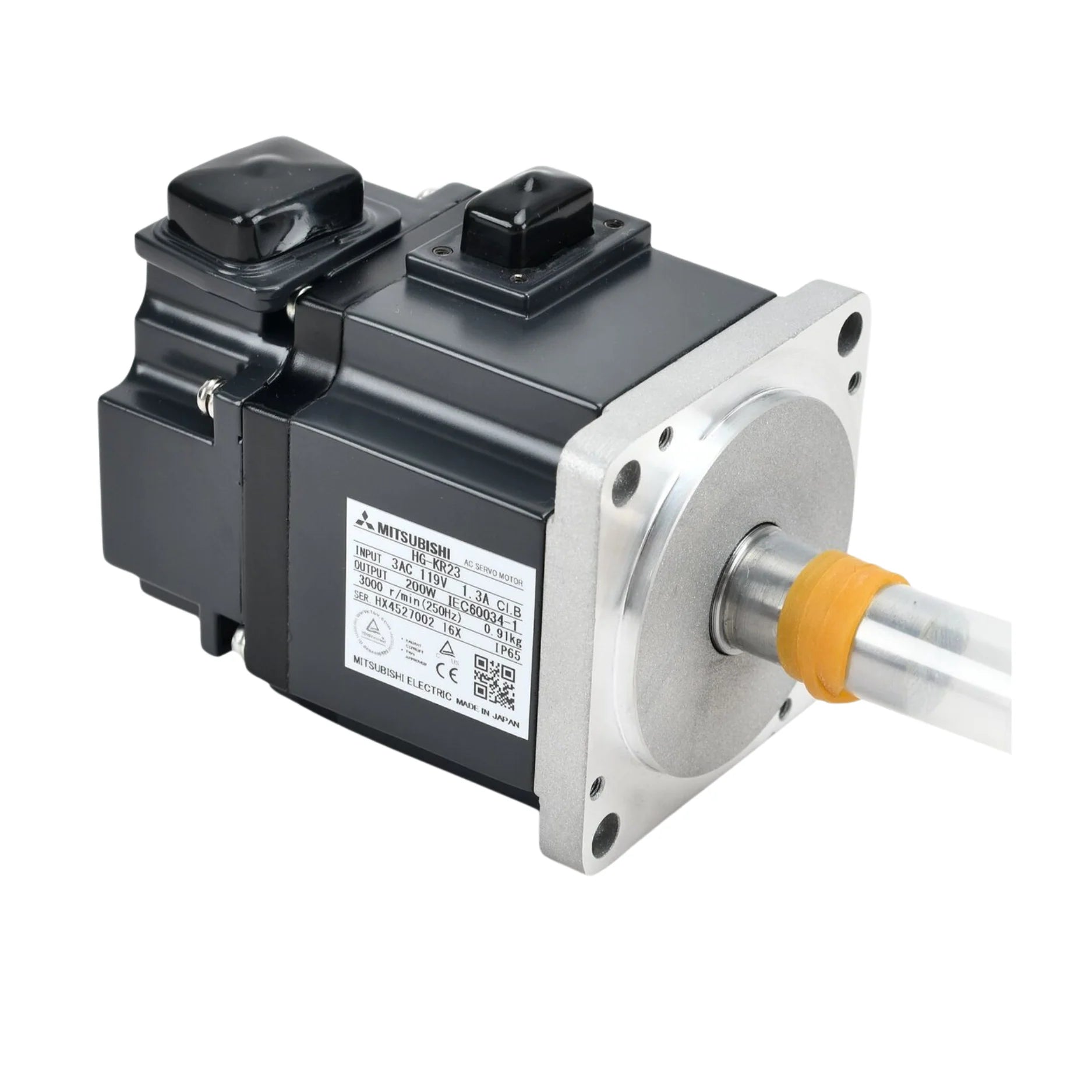

The Mitsubishi HG-KR23 is a leading-edge 200W AC servo motor from the esteemed MELSERVO J4 Series, meticulously engineered to meet the rigorous demands of modern industrial automation. This compact yet powerful motor is the ideal solution for machinery requiring exceptional speed and precise motion control within confined spaces. With a robust 3000 RPM rated speed and an advanced 22-bit incremental encoder, the HG-KR23 delivers unparalleled accuracy and responsiveness, making it a cornerstone for high-performance applications. It is specifically optimized for seamless integration with MR-J4 servo amplifiers, ensuring a cohesive and highly efficient control system.

Key Features

• Rated Power Output: 200W for efficient and dynamic performance.
• Rated Speed: 3000 RPM, providing rapid and reliable operation.
• Rated Torque: Approximately 0.64 Nm, delivering ample power for various tasks.
• Power Supply: Operates on 200V AC, 3-phase for robust industrial integration.
• Encoder Type: High-resolution 22-bit Incremental encoder for superior position feedback.
• Shaft Type: Straight shaft with key and tap, ensuring secure and versatile coupling.
• High Response Performance: Engineered for exceptionally fast and precise control, crucial for demanding applications.
• Compact Size: Designed to fit perfectly into tight mechanical spaces without compromising on power or functionality.

Technical Specifications

• Model: HG-KR23
• Series: MELSERVO J4 (HG-KR)
• Max Speed: Up to 6000 RPM for peak performance requirements.
• Compatible Amplifiers: Fully compatible with the MR-J4 series, guaranteeing optimal system synergy.
• Mounting: Standard flange mount for straightforward installation.
• Protection Class: IP65 (excluding shaft), offering robust protection against dust and water ingress in industrial environments.
• Operating Temperature: Designed to operate efficiently in temperatures ranging from 0°C to 40°C.
• Weight: Approximately 1.2 kg (2.65 lbs), contributing to its compact and manageable design.
• Certifications: Compliant with CE, UL, and RoHS standards, affirming its quality, safety, and environmental responsibility.

Applications

The Mitsubishi HG-KR23 AC servo motor's precision and compact design make it exceptionally versatile across a wide array of advanced industrial applications, including:

• Compact Robotics: Enhancing accuracy and agility in robotic arms and manipulators.
• Pick-and-Place Systems: Delivering rapid and repeatable positioning for automated assembly.
• Semiconductor Tools: Providing the precise motion control required for delicate microfabrication processes.
• Labeling and Packaging Machines: Ensuring high-speed and accurate product handling.
• High-Speed Positioning Systems: Critical for applications demanding exact and instantaneous movement.

Why Choose This Model?

Opting for the Mitsubishi HG-KR23 means investing in unmatched precision and reliability for your automation needs. This model stands out due to its unique combination of features:

• Compact with High Output: Experience 200W of formidable power within a remarkably small, space-saving design, ideal for modern machinery where every millimeter counts.
• Precise Position Feedback: The state-of-the-art 22-bit encoder ensures incredibly accurate and repeatable motion control, minimizing errors and maximizing operational efficiency.
• Reliable Mitsubishi Engineering: Benefit from Mitsubishi Electric's renowned commitment to quality. The HG-KR23 is built for exceptional durability and sustained performance in the most demanding industrial environments.
• Optimized for MR-J4 Amplifiers: Achieve seamless integration and peak performance when paired with MR-J4 series servo amplifiers, creating a harmonious and highly efficient motion control ecosystem.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi HG-KR23 AC servo motor. This high-performance component is currently in stock and ready to ship, ensuring prompt delivery to keep your projects on schedule. For more options within this exceptional product line, we invite you to explore our comprehensive Mitsubishi Servo Motor HG Series collection. Discover our full range of Mitsubishi Servo Motors, renowned for delivering unparalleled precision, high torque density, and cutting-edge motion control solutions essential for today's industrial automation challenges.
