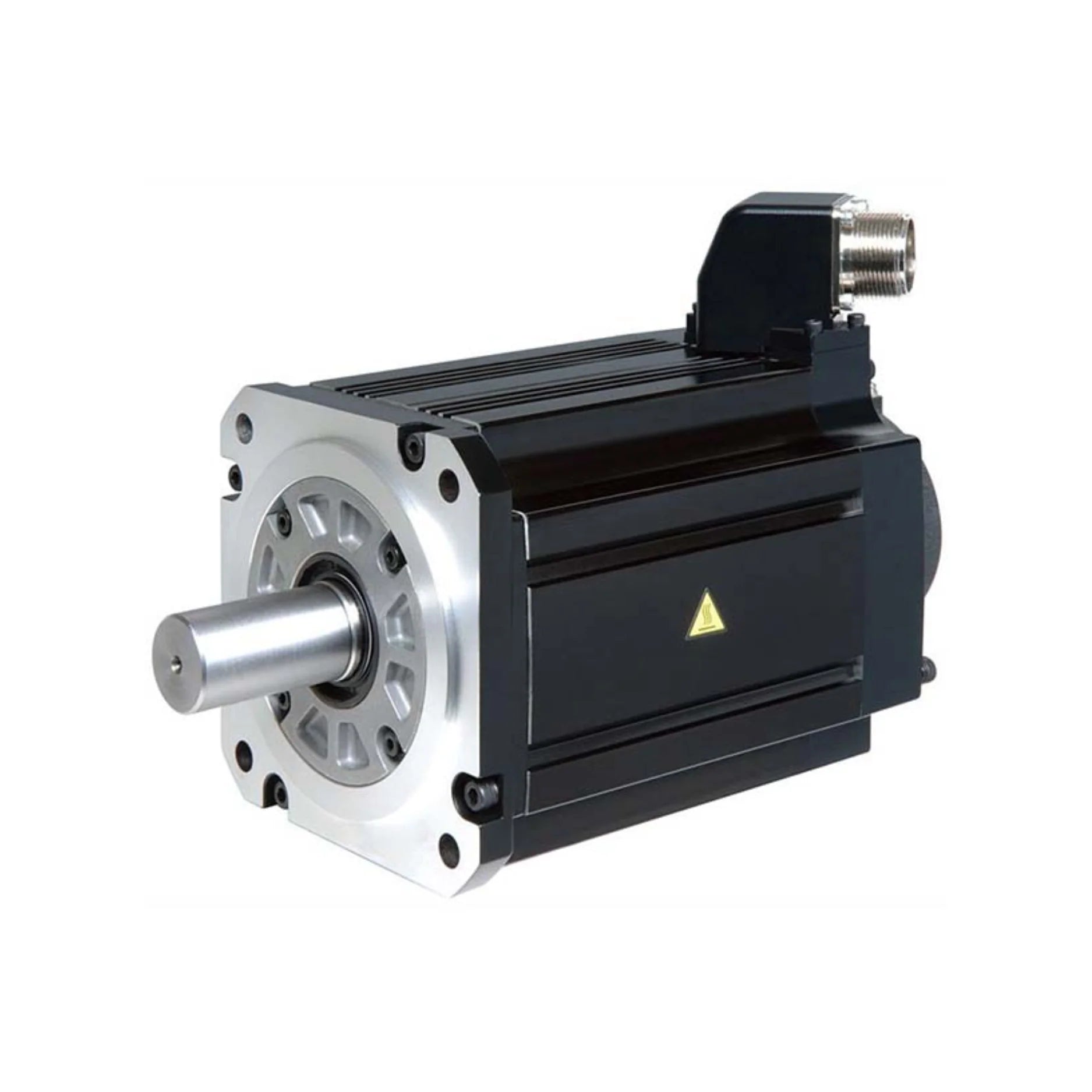

Mitsubishi HG-JR1534B

Overview

The Mitsubishi HG-JR1534B stands as a pinnacle of AC servo motor technology, meticulously engineered to meet the rigorous demands of modern industrial automation. As a distinguished member of the high-performance HG-JR series, this motor delivers a robust 1.5 kW of power with a rapid base speed of 3000 rpm, further enhanced by an integrated electromagnetic brake. This combination is crucial for applications that demand not only high-speed operation but also precise control over deceleration, stopping, and holding positions, especially under vertical load conditions. Its high-inertia design contributes significantly to stable and smooth motion control, ensuring that your machinery operates with unparalleled precision and reliability, even in the most challenging environments.

Key Features

• Powerful Performance: Boasts a rated power output of 1.5 kW, providing ample strength for demanding tasks.
• High-Speed Operation: Achieves a base speed of 3000 rpm, facilitating swift and efficient production cycles.
• Integrated Braking System: Equipped with a built-in electromagnetic holding brake for enhanced safety, controlled stopping, and reliable load holding.
• Optimized Stability: Features a high-inertia design that ensures exceptionally stable and smooth motion control, reducing vibrations and improving accuracy.
• Superior Precision: Incorporates a 22-bit absolute encoder, offering ultra-high resolution feedback for exact positional accuracy and repeatability.
• Versatile Mounting: Designed with a standard flange mounting configuration, ensuring easy integration into a wide array of industrial setups.
• Seamless Compatibility: Fully compatible with Mitsubishi MR-J4 series servo amplifiers, allowing for effortless integration into existing Mitsubishi control systems.
• Industrial Durability: Constructed with a robust build quality and an IP65 (excluding shaft) protection rating, guaranteeing longevity and reliable operation in harsh industrial environments.

Technical Specifications

• Rated Output: 1.5 kW
• Rated Speed: 3000 rpm
• Maximum Speed: 6000 rpm
• Brake Type: Electromagnetic holding brake
• Encoder Type: 22-bit absolute
• Voltage Class: 200 V
• Mounting: Flange type
• Protection Class: IP65 (excluding shaft)
• Cooling Method: Natural cooling
• Ambient Temperature: 0 to 40 °C

Applications

The Mitsubishi HG-JR1534B AC Servo Motor is a versatile solution for a broad spectrum of industrial applications that demand high precision, dynamic response, and reliable control:

• Robotics and Automated Assembly: Enhances the speed and accuracy of robotic arms and pick-and-place machinery.
• Vertical Axis Systems: Essential for applications involving vertical loads, where the integrated brake provides critical safety and holding capabilities.
• Packaging and Labeling: Delivers rapid and precise motion for high-speed packaging and labeling equipment, improving efficiency and reducing errors.
• High-Speed Positioning Systems: Ideal for scenarios requiring extremely fast and accurate positioning, such as semiconductor manufacturing or printing.
• Material Handling and Conveyors: Provides reliable and consistent performance for conveyor systems and other material handling operations, ensuring smooth product flow.

Why Choose This Model?

Opting for the Mitsubishi HG-JR1534B means investing in a solution that brings significant advantages to your operations:

• Integrated Safety and Control: The built-in electromagnetic brake offers crucial safety features, ensuring controlled stops and secure load holding, which is paramount for vertical applications.
• Unmatched Precision: With its high-resolution 22-bit absolute encoder, this servo motor guarantees incredibly accurate feedback, leading to superior positioning and repeatability in your processes.
• Optimized for Vertical Loads: Specifically designed to excel in applications involving vertical movement, where the brake functions as a vital component for preventing unintended descents.
• Mitsubishi's Proven Reliability: Benefit from Mitsubishi Electric's renowned reputation for producing durable and high-performing industrial components that stand the test of time, even in the most demanding operational environments.
• Smooth and Dynamic Operation: Experience exceptionally smooth motion control and a high dynamic response, contributing to improved process efficiency and reduced wear and tear on mechanical components.

Order Now

Elevate the performance and reliability of your industrial automation systems with the Mitsubishi HG-JR1534B AC Servo Motor. This exceptional motor combines powerful output, integrated braking, and unparalleled precision to deliver a comprehensive solution for your most demanding applications. Invest in Mitsubishi Electric's legacy of quality and innovation to achieve controlled power and precise positioning. Contact us today to secure your HG-JR1534B and take a definitive step towards optimizing your operational efficiency and safety.
