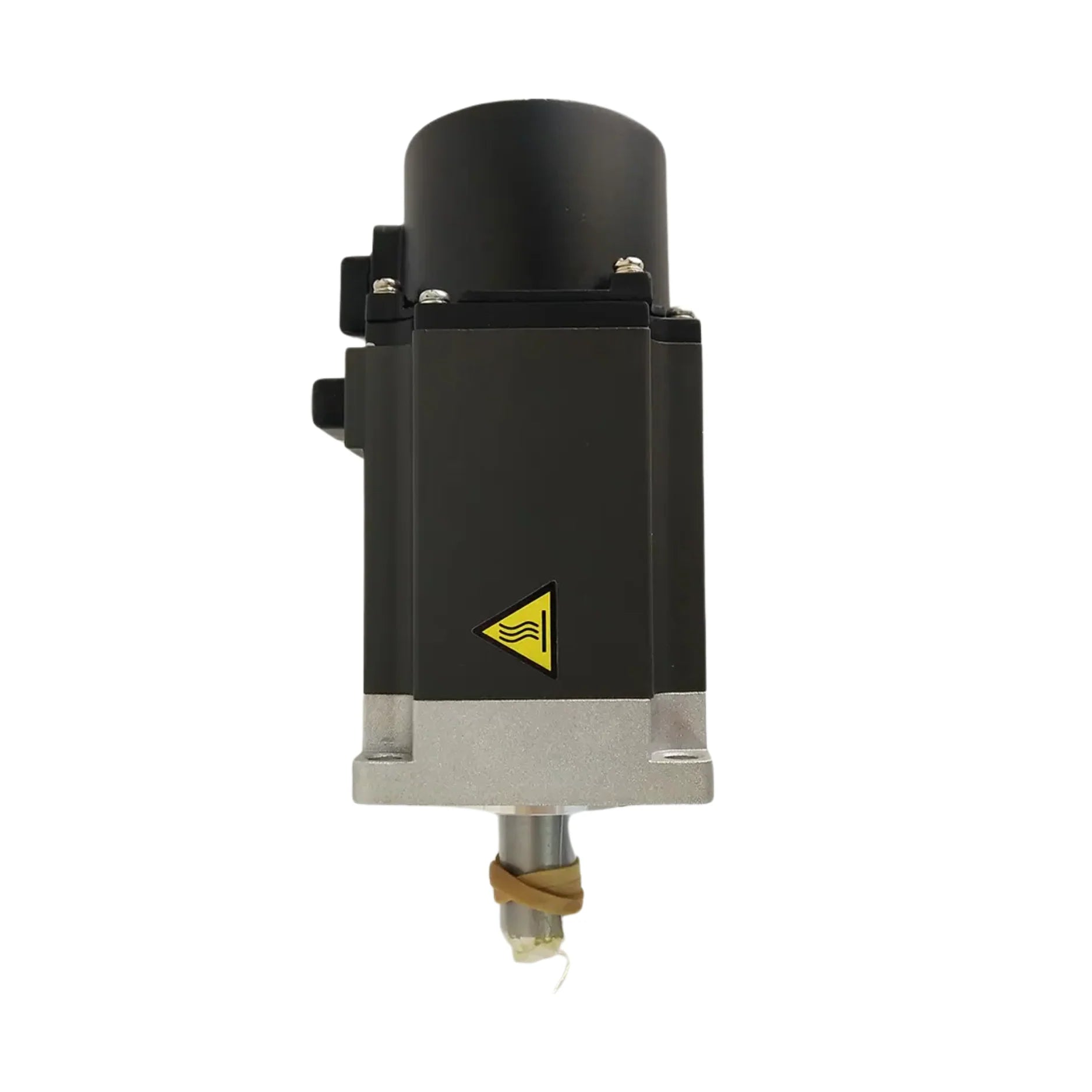

Mitsubishi HF‑KP43JK

Overview

The Mitsubishi HF-KP43JK is a standout AC servo motor from the renowned MELSERVO-J4 series, meticulously engineered to deliver a harmonious blend of high performance and a remarkably compact form factor. This precision-designed motor is a testament to Mitsubishi Electric's commitment to advanced automation solutions. Boasting a robust rated output of 0.4 kW and achieving a maximum speed of 3000 rpm, the HF-KP43JK is more than just a motor; it's a foundation for precise and efficient motion control. It integrates a high-resolution incremental encoder, providing reliable and immediate feedback crucial for demanding industrial applications. Its compact dimensions make it an ideal choice for installations where space is a premium, yet uncompromising precision in automation is essential. This motor excels in environments requiring dynamic motion control and steadfast operational stability.

Key Features

• Optimized Power Output: Delivers a consistent and reliable 0.4 kW (approximately 0.5 HP) rated power, suitable for a wide range of industrial tasks.
• High Rotational Speed: Achieves a maximum speed of 3000 rpm, ensuring rapid and efficient operation in dynamic applications.
• Efficient Voltage Operation: Designed for seamless operation at 200 V AC, ensuring compatibility with standard industrial power supplies.
• Integrated High-Resolution Encoder: Features a 22-bit incremental encoder for exceptionally accurate motor feedback and superior motion control.
• Compact and Robust Design: Housed in a compact flange-mount casing, optimizing space utility without compromising durability.
• Minimized Vibration & Noise: Engineered for low vibration and quiet operation, contributing to a more stable and pleasant working environment.
• Seamless Compatibility: Fully compatible with Mitsubishi Electric MR-J4 series servo amplifiers, ensuring ease of integration and setup.
• Enhanced Protection: Boasts an IP65 protection rating (excluding the shaft), providing excellent resistance against dust and water ingress.

Technical Specifications

• Mitsubishi Electric Code: HF-KP43JK
• Product Series: MELSERVO-J4
• Rated Power: 0.4 kW
• Rated Voltage: 200 V AC
• Maximum Speed: 3000 rpm
• Encoder Type: 22-bit Incremental
• Mounting Style: Flange
• Protection Class: IP65 (excluding shaft)
• Compatible Servo Drives: MR-J4 Series

Applications

The versatility and precision of the Mitsubishi HF-KP43JK AC servo motor make it an indispensable component across various demanding industrial applications:

• Small Robotic Actuators: Provides the precise and swift movements required for intricate robotic tasks in manufacturing and assembly lines.
• Pick-and-Place Systems: Ensures high-speed and accurate positioning for efficient material handling and sorting operations.
• Compact Packaging Machinery: Ideal for precision control in automated packaging lines where space and speed are critical.
• Conveyor Indexing: Facilitates precise and rapid indexing in conveyor systems, even within confined or challenging layouts.
• Precision Positioning in OEM Equipment: Perfect for integration into original equipment manufacturing (OEM) products that demand exceptional accuracy and repeatable motion control.
• Textile Machinery: Offers dynamic control for intricate processes in the textile industry.
• Semiconductor Manufacturing: Supports the ultrasensitive and accurate movements required in semiconductor production.

Why Choose This Model?

Opting for the Mitsubishi HF-KP43JK AC servo motor means choosing uncompromised quality and performance for your automation needs. This model stands out for its:

• Efficient Torque Delivery: Despite its compact size, it offers powerful and efficient torque, ensuring robust performance in a small footprint.
• Unrivaled Motion Control: The integrated 22-bit incremental encoder provides exceptionally accurate feedback, enabling superior and reliable motion control for even the most delicate operations.
• Exceptional Durability: Constructed with industrial-grade materials and an IP65 protection rating, it is built to withstand rigorous industrial environments, ensuring long-term reliability and reduced maintenance.
• Seamless System Integration: Designed for perfect compatibility with Mitsubishi's advanced MR-J4 servo systems, simplifying installation and configuration, and guaranteeing optimal operational synergy.
• Ideal for Compact Setups: Its optimized dimensions and high power-to-size ratio make it the perfect solution for machines and systems where operating space is at a premium.
• Reduced Operational Costs: Its efficiency and durability contribute to lower energy consumption and extended service life, offering significant cost savings over time.

Order Now

Elevate your automation capabilities with the Mitsubishi HF-KP43JK AC servo motor. Engineered for unparalleled precision and dynamic performance in compact environments, this motor is the definitive choice for advanced industrial applications. Experience the reliability and innovation that only Mitsubishi Electric can provide.
