Mitsubishi HC-KFS23

Overview

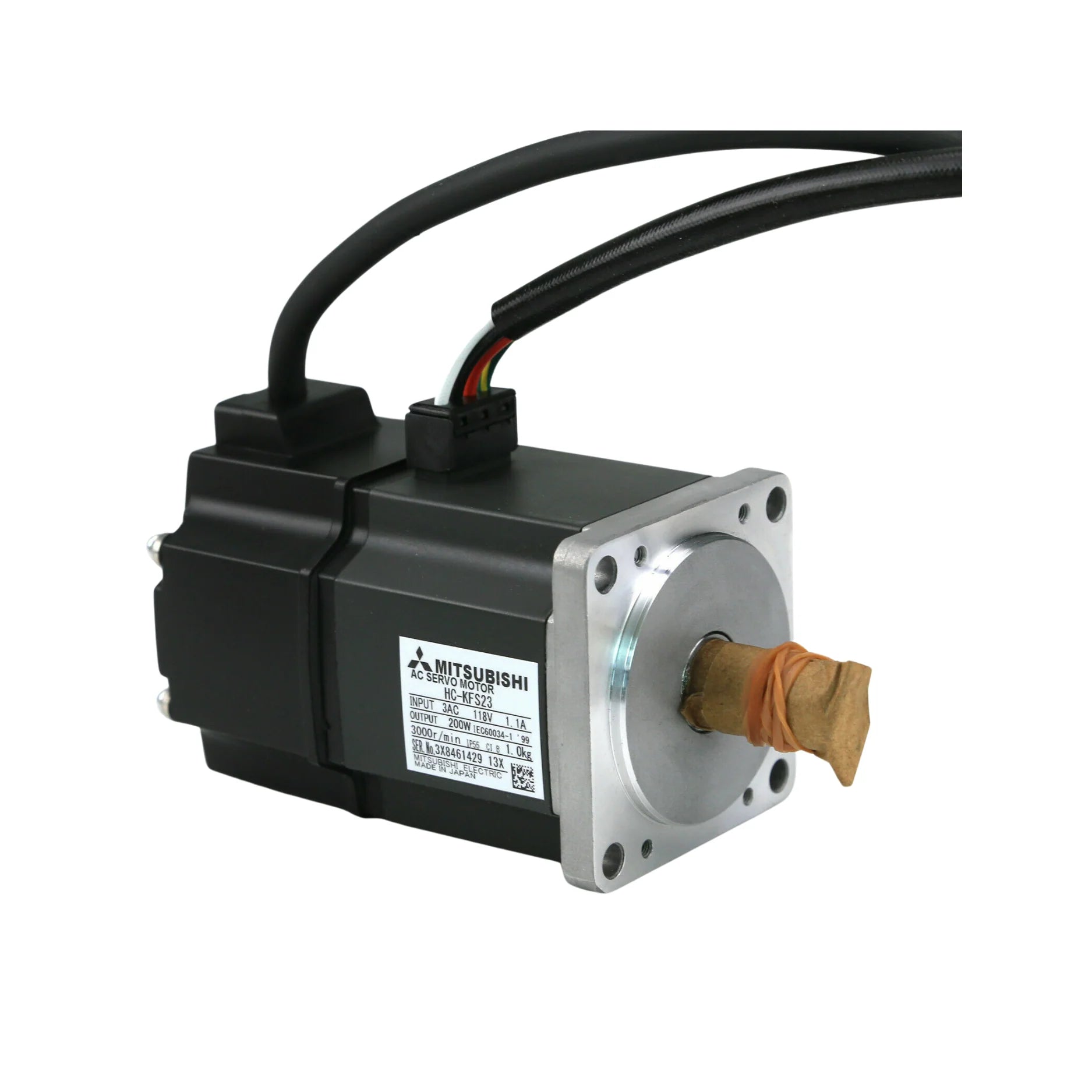

The Mitsubishi HC-KFS23 Servo Motor is an advanced 200W low-inertia AC servo motor engineered to deliver unparalleled precision and responsive motion control in demanding, compact machinery environments. Designed for efficiency and reliability, this motor boasts a nominal speed of 3000 RPM and features a robust keyed shaft, ensuring secure power transmission. With its impressive IP65 protection rating, it is built to withstand challenging industrial conditions, including dust ingress and water splashes. Seamlessly compatible with the widely utilized MR-J2S servo amplifiers, the HC-KFS23 provides a plug-and-play solution for system integrators and machine builders seeking high-performance and space-saving motion control. Its compact design belies its powerful capabilities, making it an ideal choice for applications where both precision and footprint are critical considerations.

Key Features

• Power Rating: 200W for efficient operation.
• Rated Speed: 3000 RPM with a maximum speed of 5000 RPM for dynamic performance.
• Voltage Class: 3-phase 200V compatibility.
• Shaft Type: Straight shaft with key for secure coupling.
• Protection Rating: IP65 (excluding shaft portion) for enhanced durability in harsh environments.
• Motor Type: Low-inertia design for rapid acceleration and deceleration.
• Encoder: 131,072 pulses/rev incremental encoder for precise feedback.
• Mounting: Flange mount for straightforward installation.
• Cooling Method: Natural convection for reliable thermal management.

Technical Specifications

• Model Number: HC-KFS23
• Rated Power: 200W
• Rated Torque: Approximately 0.64 Nm
• Max Torque: Approximately 1.91 Nm
• Rated Current: Approximately 1.7 A
• Rotor Inertia: 0.072 J (kg·cm²)
• Encoder Type: 17-bit incremental
• Ambient Temperature: 0°C to 40°C
• Protection Class: IP65
• Insulation Class: F
• Weight: Approximately 1.1 kg
• Certifications: CE, UL, RoHS

Applications

The Mitsubishi HC-KFS23 servo motor is versatile and perfectly suited for a wide range of applications that demand high precision, speed, and compact integration. Potential applications include:

• Compact Robotic Systems: Enabling nimble and accurate movements in small-scale robotics.
• Pick-and-Place Units: Providing rapid and repeatable positioning for automated assembly.
• Small Conveyors and Actuators: Driving precise material handling and linear motion systems.
• Medical and Packaging Machines: Ensuring critical accuracy and reliability in sensitive operations.
• Semiconductor and Inspection Equipment: Facilitating delicate procedures with exceptional positional control.

Why Choose This Model?

The Mitsubishi HC-KFS23 stands out as a superior choice for sophisticated motion control due to several compelling advantages:

• Compact & Lightweight Design: Its optimized footprint allows for seamless integration into even the most space-constrained machinery, maximizing design flexibility without compromising performance.
• Fast Response & Precision: Engineered with low inertia, this servo motor delivers rapid acceleration and deceleration, ensuring dynamic and highly responsive control crucial for high-speed applications. The high-resolution 17-bit incremental encoder provides exceptional feedback for unparalleled positional accuracy.
• Durable & Reliable Performance: With an IP65 protection rating (excluding the shaft portion), the HC-KFS23 is built to withstand challenging industrial environments, offering reliable operation and a longer service life, reducing downtime and maintenance costs.
• Seamless Integration: Full compatibility with Mitsubishi Electric's renowned MR-J2S servo amplifiers ensures a true plug-and-play experience, simplifying installation and commissioning while leveraging existing infrastructure. Its CE, UL, and RoHS certifications further guarantee adherence to international quality and safety standards.

Order Now

The high-performance Mitsubishi HC-KFS23 servo motor is readily available for immediate acquisition and global shipment, ensuring that advanced motion control solutions are accessible wherever your operations are located. To explore further innovative options within this product family, we invite you to discover more models within the Mitsubishi Servo Motor HC Series. For a comprehensive array of motion control solutions tailored to meet diverse industrial requirements, please return to the full Mitsubishi Servo Motors collection.
