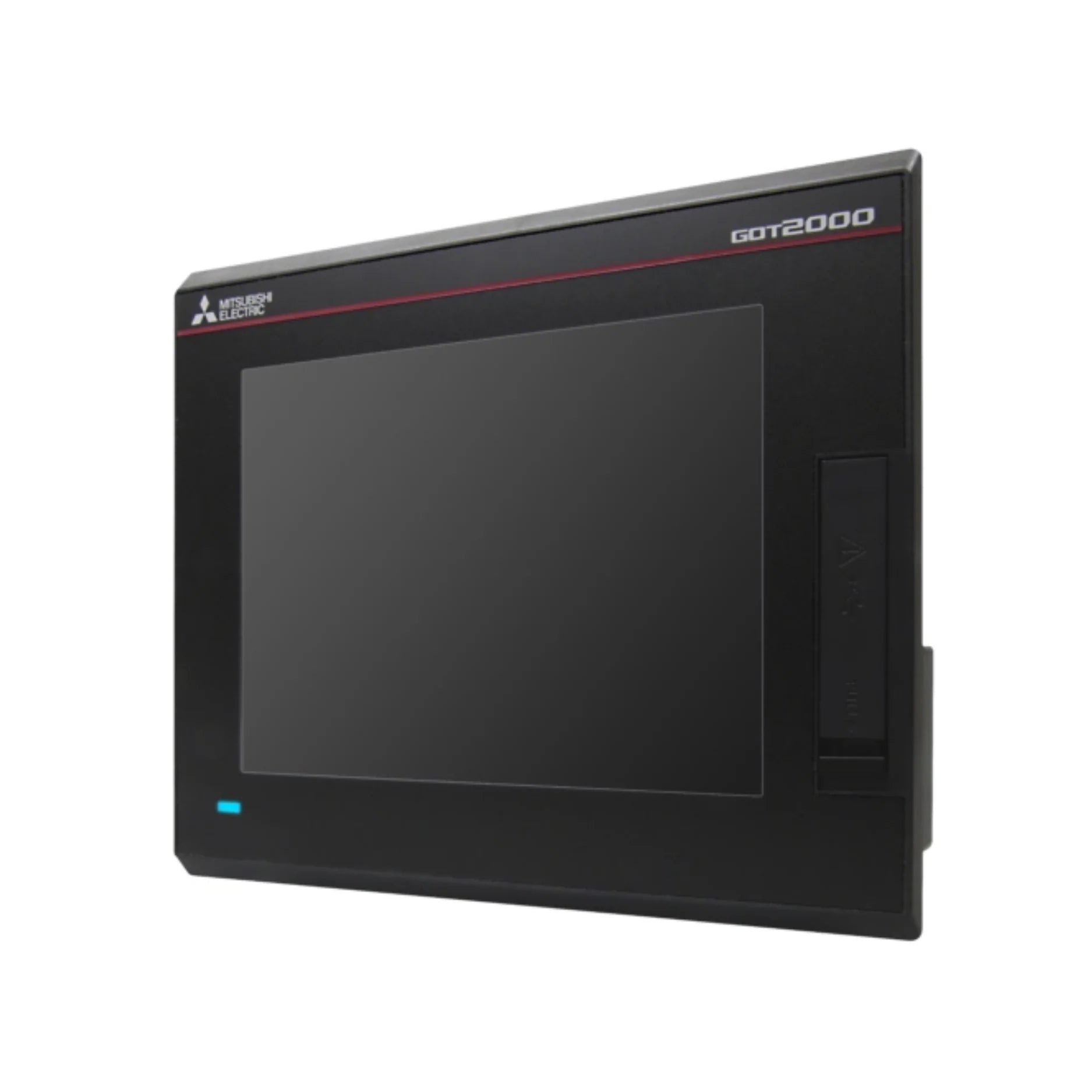

Mitsubishi GT2505-VTBD

Overview

The Mitsubishi Electric GT2505-VTBD is a state-of-the-art Human Machine Interface (HMI) from the esteemed GOT2000 series, meticulously engineered to deliver exceptional performance and user-friendliness in demanding industrial environments. This compact yet powerful 5.7-inch unit boasts a vibrant TFT color touchscreen, providing crystal-clear visuals and intuitive navigation for operators. With its comprehensive communication capabilities, including versatile Ethernet and serial connections, and a reliable 24V DC input, the GT2505-VTBD facilitates swift and precise control, as well as real-time monitoring of complex factory automation systems. Its robust design and advanced features make it an indispensable tool for enhancing productivity and streamlining operations across various industrial applications. This HMI is not just a display; it's a pivotal interface designed to bring efficiency and control directly to your fingertips.

Key Features

• Series: GOT2000 Series, ensuring compatibility and seamless integration within existing Mitsubishi Electric ecosystems.
• Display Type: High-resolution 5.7" TFT color LCD, offering brilliant visuals and wide viewing angles for optimal operational clarity.
• Resolution: Crisp 640 x 480 pixels (VGA), providing detailed graphics and text for accurate data representation.
• Touchscreen: Highly responsive analog resistive type, ensuring precise input and durability in industrial settings.
• Power Supply: Operates efficiently on a standard 24V DC input, suitable for typical industrial power systems.
• Interfaces: Equipped with 1x Ethernet port for high-speed network communication, 2x serial ports (RS-232 and RS-422/485) for versatile peripheral connectivity, and 1x USB device along with 1x USB host port for enhanced data transfer and expansion options.
• Memory: Features a generous 32 MB of internal memory, providing ample space for project data, screens, and operational logs.
• Mounting: Designed for straightforward panel mounting, allowing for flush integration into control cabinets and operator consoles.
• Front Protection: Achieves an IP65 rating when properly installed, offering superior protection against dust and water ingress, crucial for harsh industrial environments.
• Software Compatibility: Fully compatible with GT Works3 software, enabling quick, efficient, and user-friendly configuration and programming.

Technical Specifications

• Catalog Number: GT2505-VTBD
• Display Size: 5.7 inches
• Resolution: 640 × 480 (VGA)
• Power Input: 24V DC
• Touch Type: Analog resistive
• Ethernet: 10/100Base-T
• Serial Ports: RS-232, RS-422/485
• USB Ports: 1x USB host, 1x USB device
• Mounting Method: Panel mount
• Protection Rating: IP65 (front only)
• Operating Temperature: 0°C to 55°C
• Dimensions: Approximately 160 x 128 x 46 mm
• Weight: Approximately 0.8 kg

Applications

The Mitsubishi GT2505-VTBD HMI is a versatile solution, ideally suited for a broad spectrum of industrial applications that demand reliable human-machine interaction and efficient process control:

• HMI control in PLC systems: Providing a central interface for monitoring and controlling programmable logic controllers in automated processes.
• Packaging and labeling equipment: Enhancing operational efficiency and precision in machinery used for packaging and product labeling.
• Manufacturing lines: Serving as critical control points for managing and overseeing various stages of industrial manufacturing.
• Machine tool operation panels: Offering a user-friendly and robust interface for operating and configuring diverse machine tools.
• SCADA terminals for compact machinery: Acting as an effective supervisory control and data acquisition terminal for smaller, integrated machinery setups.

Why Choose This Model?

• Compact & Capable: Despite its compact 5.7-inch footprint, this HMI delivers full VGA resolution, ensuring no compromise on visual clarity or detail. Its space-saving design is perfect for installations where panel real estate is at a premium.
• Flexible Communication: With built-in Ethernet, multiple serial ports, and both USB host and device connectivity, the GT2505-VTBD offers unparalleled flexibility in integrating with existing and new industrial networks and peripherals.
• Rugged Design: The IP65-rated front panel guarantees exceptional durability and protection against environmental contaminants like dust and water splashes, making it a reliable choice for even the harshest industrial settings.
• User-Friendly Interface: Fully compatible with GT Works3 software, configuration and programming are streamlined, reducing setup time and simplifying ongoing maintenance. Its intuitive design empowers operators with precise control and monitoring.
• Ideal for OEMs: Its compact dimensions, robust feature set, and ease of integration make it an excellent choice for Original Equipment Manufacturers looking to incorporate a high-quality HMI into their machinery and systems, especially within space-limited control cabinets.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi GT2505-VTBD touchscreen HMI. This potent combination of compact design, robust features, and versatile connectivity is readily available and poised for worldwide shipment.

For additional options within this distinguished family, we invite you to explore our comprehensive Mitsubishi Electric HMI – GOT Series Touch Panels collection. Furthermore, broaden your search by discovering our entire range of Mitsubishi Industrial Automation Products. This extensive selection includes high-performance PLCs, HMIs, drives, and motion solutions, all meticulously engineered to deliver superior performance, seamless connectivity, and unparalleled flexibility across a myriad of industrial applications. Invest in Mitsubishi Electric technology for reliable, cutting-edge control solutions that drive efficiency and innovation.
