Mitsubishi GS2107-WTBD

Overview

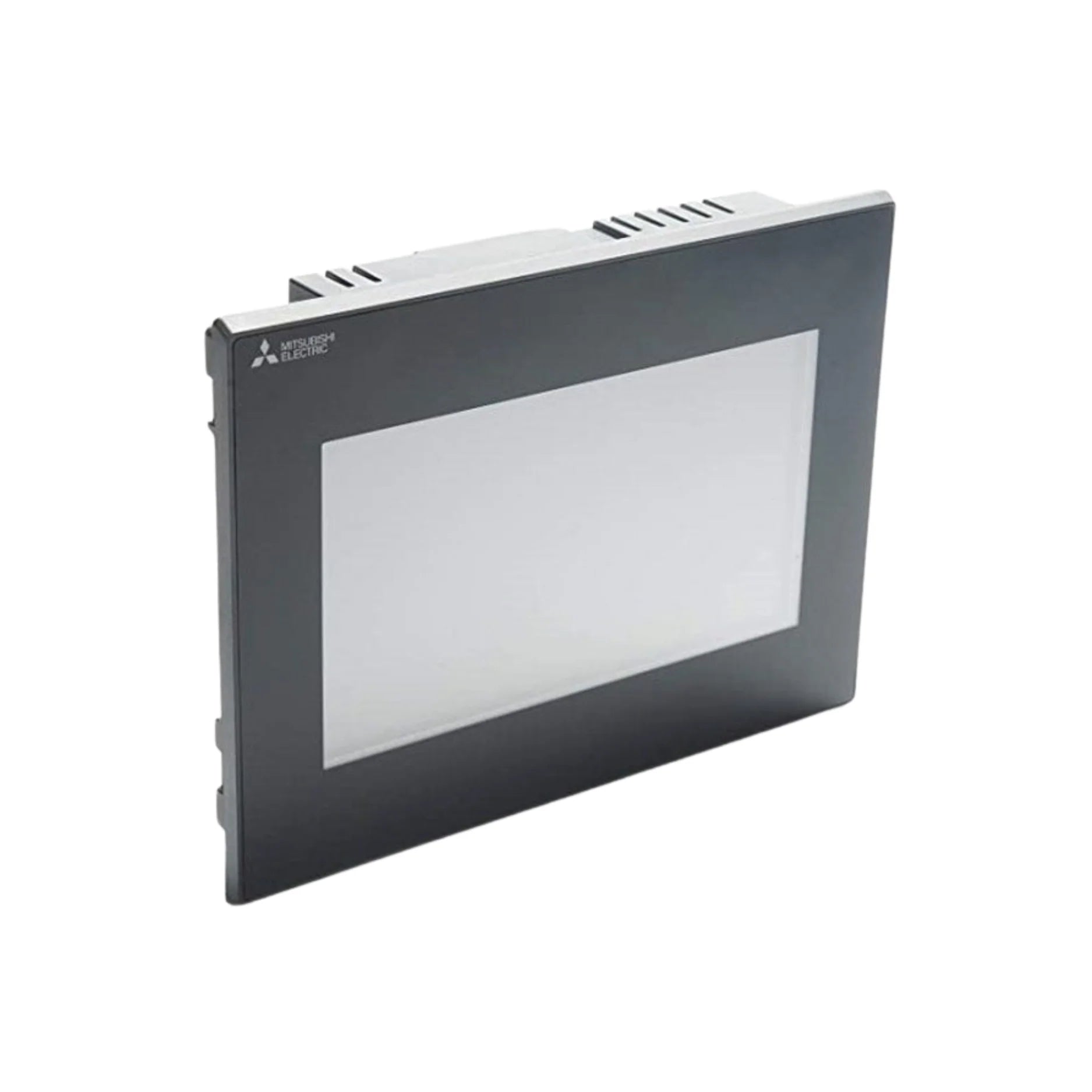

The Mitsubishi Electric GS2107-WTBD is a cutting-edge Human-Machine Interface (HMI) from the renowned GOT Simple Series, meticulously engineered to elevate efficiency and control in diverse industrial automation landscapes. This 7-inch HMI panel features a vibrant TFT color LCD with an impressive 800×480 resolution, ensuring crystal-clear visuals and highly responsive touch control. Designed for seamless integration and robust performance, the GS2107-WTBD combines multiple communication interfaces with exceptional environmental resistance, making it an indispensable asset for modern industrial applications requiring precision and reliability.

Key Features

• Display: 7-inch TFT color LCD, providing brilliant clarity and detail for complex operations.
• Resolution: 800 × 480 pixels, delivering crisp and sharp visual feedback.
• Display Colors: Supports 65,536 colors, offering rich and distinct color representation for intuitive displays.
• Touch Panel: Analog resistive film technology ensures precise and reliable touch input.
• Power Supply: Operates efficiently on 24V DC (+10%, -15%), suitable for industrial power standards.
• Power Consumption: Optimized for low energy usage, consuming 6.5W or less.
• Interfaces: Comprehensive connectivity options including Ethernet (10BASE-T/100BASE-TX), RS-232, RS-422/485, USB (device), and an SD memory card slot for versatile integration.
• Memory: Equipped with 9MB internal flash memory, dedicated for secure project data storage.
• Protection Rating: IP65 (front panel) ensures superior protection against dust and water ingress, ideal for challenging environments.
• Mounting: Designed for easy panel mounting, facilitating straightforward installation.
• Cooling Method: Features self-cooling for reliable operation without external cooling systems.

Technical Specifications

• Model: GS2107-WTBD
• Series: GOT Simple Series
• Dimensions (W × H × D): 206 × 155 × 50 mm, providing a compact footprint.
• Weight: Approximately 0.9 kg, for easy handling and installation.
• Operating Temperature: 0°C to 50°C, ensuring performance in typical industrial conditions.
• Storage Temperature: -20°C to 60°C, for safe storage.
• Operating Humidity: 10% to 90% RH, non-condensing, suitable for various ambient conditions.
• Vibration Resistance: Conforms to IEC 61131-2, guaranteeing durability against vibrations.
• Shock Resistance: 147 m/s² (15G), tested 3 times in each X, Y, and Z direction, confirming robust construction.
• Certifications: CE, UL, cUL, UKCA, ensuring compliance with international safety and quality standards.
• Environmental Compliance: RoHS compliant, demonstrating commitment to environmental responsibility.

Applications

The versatility and robust design of the Mitsubishi GS2107-WTBD HMI make it an ideal solution for a broad spectrum of industrial applications, including:

• Factory Automation Systems: Enhancing control and visualization for manufacturing processes.
• Process Control Interfaces: Providing intuitive monitoring and command for complex industrial processes.
• Machine Operation Panels: Facilitating seamless interaction and operational efficiency for various machinery.
• Building Management Systems: Offering centralized control and monitoring for modern buildings.
• Energy Monitoring and Control: Empowering efficient management and optimization of energy consumption.

Why Choose This Model?

• Cost-Effective Solution: The GS2107-WTBD delivers essential HMI functionality without compromising on quality or performance, offering significant value.
• Versatile Communication: Its rich array of interfaces ensures effortless integration into existing systems and connectivity with diverse industrial devices.
• Robust Design: An IP65 front panel rating, coupled with compliance to stringent international standards, guarantees enduring performance and reliability in demanding industrial environments.
• User-Friendly Interface: Featuring a high-resolution display and a responsive touch panel, this HMI enhances operational ease and user interaction, minimizing training time.
• Compact Size: The space-saving design allows for flexible installation in a variety of setups, making it suitable for applications where space is at a premium.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi GS2107-WTBD HMI panel. It is readily available for global shipping to meet your operational needs. To explore more advanced options within this product family, please visit our Mitsubishi Electric HMI – GOT Series Touch Panels collection. Additionally, discover our comprehensive selection of Mitsubishi Industrial Automation Products, including PLCs, HMIs, drives, and motion solutions, all engineered for high performance, superior connectivity, and unparalleled flexibility across all your industrial applications.
