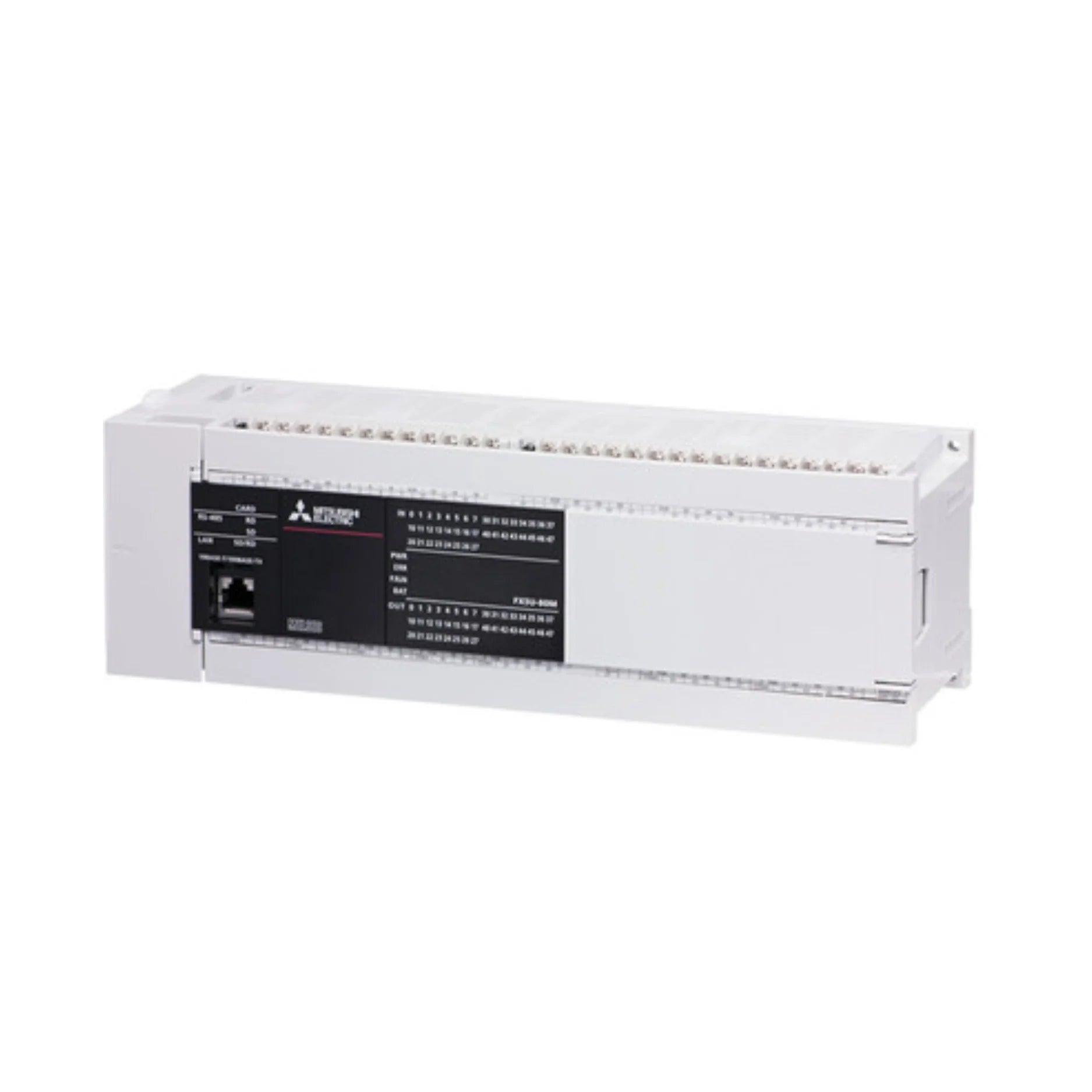

Mitsubishi FX5U-80MT-ES

Overview

The Mitsubishi FX5U-80MT-ES is a cutting-edge Programmable Logic Controller (PLC) main unit from the renowned FX5U series, part of Mitsubishi Electric's innovative iQ-F platform. Engineered for demanding industrial environments, this high-performance controller boasts an impressive 80 total I/O points, comprising 40 digital inputs and 40 transistor sink outputs. Powering its robust capabilities is a versatile 100–240 V AC supply, ensuring reliable operation across various electrical infrastructures. The FX5U-80MT-ES is designed to deliver exceptional speed and efficiency, integrating advanced features such as high-speed processing, seamless built-in Ethernet connectivity for streamlined communication, comprehensive data logging functionalities, and precise motion control capabilities. This makes it an ideal solution for modern automation challenges requiring intelligence, flexibility, and performance.

Key Features

• Total I/O: 80 points (40 inputs, 40 transistor sink outputs) providing extensive control.
• Power Supply: 100–240 V AC, ensuring broad compatibility and stable operation.
• Output Type: Transistor (Sink) for reliable and responsive switching.
• Integrated Connectivity: Built-in Ethernet, USB, and SD card slot for versatile data exchange and storage.
• High-Speed Performance: Features high-speed pulse output and counter inputs crucial for precision applications.
• Advanced Functionality: Includes robust data logging and web server functionality for enhanced monitoring and management.
• Expandability: Fully expandable with FX5 expansion modules, allowing for future system growth.
• Software Compatibility: Seamlessly integrates with GX Works3 programming software for intuitive development and configuration.

Technical Specifications

• Catalog Number: FX5U-80MT-ES (ensures exact model identification).
• Inputs: 40 digital inputs, configurable as sink/source selectable for flexible sensor integration.
• Outputs: 40 transistor sink outputs, each capable of handling 0.5 A max per point, providing ample control capacity.
• Program Capacity: Large 128,000 steps, supporting complex automation sequences.
• Data Registers: Expansive 64,000 words, facilitating extensive data handling and storage.
• Input Voltage: 100–240 V AC, 50/60 Hz, for global application.
• Communication: Built-in Ethernet, USB Device, and an option for RS-485 via an adapter, ensuring diverse communication protocols.
• Mounting: Flexible DIN rail or panel mounting for easy installation in various enclosures.
• Protection Class: IP10 (open type), suitable for controlled industrial environments.
• Operating Temperature: 0 °C to +55 °C, guaranteeing performance in typical industrial conditions.
• Certifications: CE, UL, cUL, RoHS compliant, affirming safety and environmental standards.

Applications

• Advanced Factory Automation: Powering complex manufacturing processes with precision and speed.
• Multi-Axis Machine Control: Ideal for coordinating intricate movements in robotics and CNC applications.
• Packaging, Assembly, and Labeling Systems: Enhancing efficiency and accuracy in production lines.
• OEM and Scalable Control Panels: Providing a versatile core for custom machinery and expandable systems.
• Real-Time Monitoring and IoT-Ready Installations: Facilitating data acquisition and connectivity for smart factories.

Why Choose This Model?

The Mitsubishi FX5U-80MT-ES stands out as a superior choice for several compelling reasons. It offers the perfect blend of a fast and flexible PLC, essential for navigating the complexities of modern automation. Its built-in communication capabilities, including Ethernet and USB, coupled with advanced motion features, provide a comprehensive control solution without the need for extensive external modules. With a large program capacity and a future-proof design, this controller ensures your investment is protected and scalable for evolving industrial demands. Beyond its technical merits, you benefit from Mitsubishi Electric's renowned reliability and support, guaranteeing consistent performance and peace of mind. This model is specifically engineered for high-speed, high-I/O industrial systems, making it an indispensable asset for optimizing productivity and operational efficiency in your facility.

Order Now

Elevate your automation capabilities today with the Mitsubishi FX5U-80MT-ES PLC. This high-performance controller is readily available and ships worldwide, bringing Mitsubishi Electric's advanced technology directly to your operations. Don't miss the opportunity to enhance your industrial processes with its speed, flexibility, and robust feature set. For additional options within this powerful series, please return to the Mitsubishi FX5 Series PLC collection. Discover our comprehensive range of Mitsubishi MELSEC Programmable Controllers (PLC) to find scalable automation solutions tailored to your needs, from legacy system upgrades to next-generation PLCs designed for unparalleled performance, connectivity, and flexibility.
