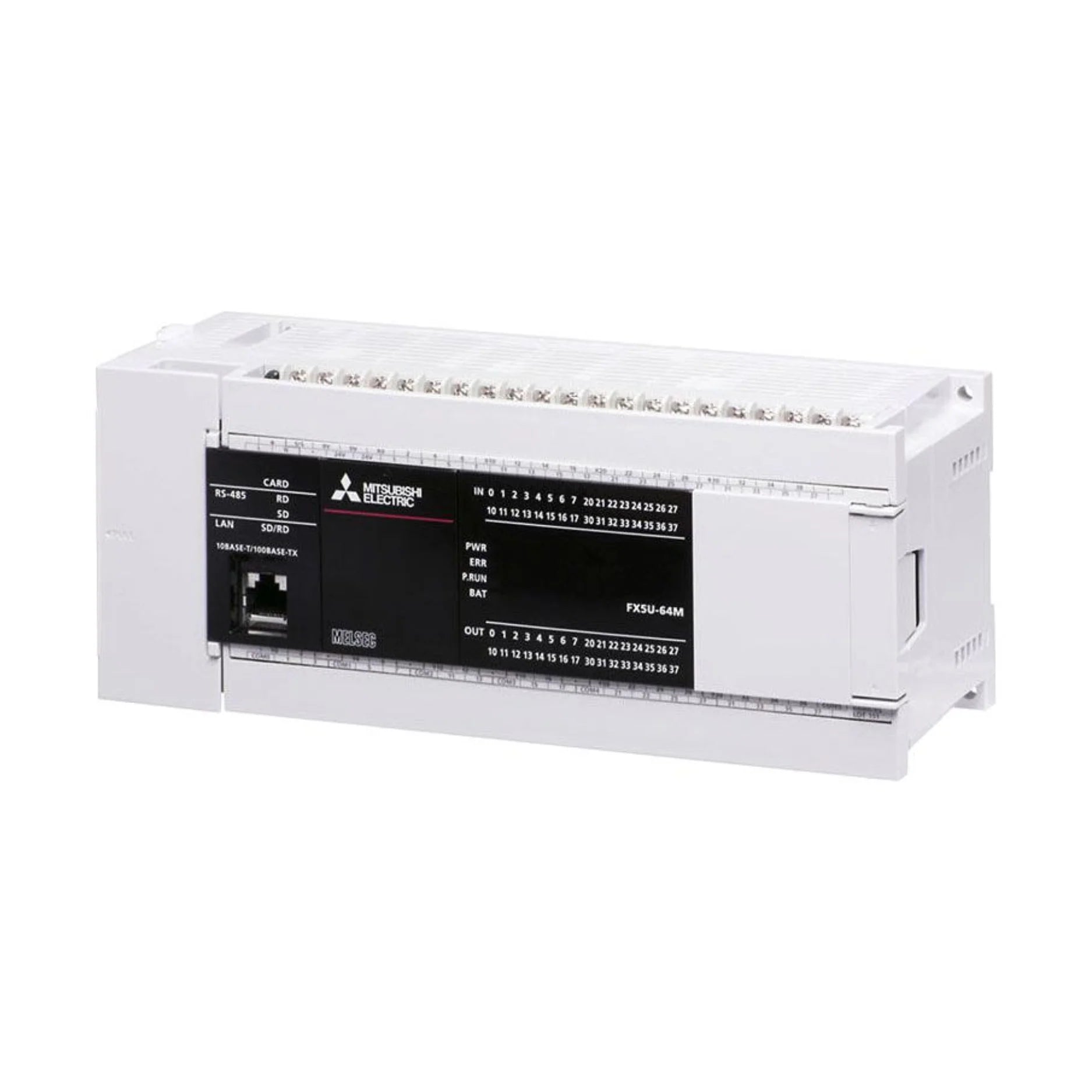

Mitsubishi FX5U‑64MT‑ESS

Overview

The Mitsubishi FX5U-64MT-ESS is a cutting-edge PLC main unit, representing the pinnacle of the advanced FX5U (iQ-F) platform. Engineered for efficiency and precision, this compact yet powerful controller boasts 64 I/O points, comprising 32 digital inputs and 32 transistor sink outputs, powered by a reliable 24 V DC supply. It's meticulously designed to deliver unparalleled high-speed processing, offering a suite of versatile communication options, robust data logging capabilities, and comprehensive motion control support. Its compact form factor belies its expansive functionality, making it an ideal solution for a wide range of industrial automation challenges where space is at a premium and performance is paramount.

As a cornerstone of Mitsubishi Electric's commitment to innovation, the FX5U-64MT-ESS integrates seamlessly into modern industrial environments, providing the reliability and scalability necessary for future-proof automation systems. Its intuitive design and powerful features empower engineers and system integrators to achieve higher levels of productivity and control.

Key Features

• 64 I/O Points: Featuring 32 high-speed digital inputs and 32 transistor sink outputs, providing extensive control capabilities.
• Output Type: Transistor (sink) for rapid and reliable switching operations.
• Power Supply: Operates efficiently on a 24 V DC system, ensuring compatibility with standard industrial power infrastructure.
• Integrated Connectivity: Equipped with built-in Ethernet, USB, and an SD card slot for flexible data handling and communication.
• High-Speed Performance: Incorporates high-speed pulse outputs and counters, essential for precise motion control applications.
• Expandability: Fully expandable with a wide array of FX5 modules, allowing for tailored system growth and increased functionality.
• Advanced Functionality: Features a real-time clock and integrated web server functionality for enhanced monitoring and data accessibility.
• Software Compatibility: Seamlessly integrates with GX Works3 programming software, simplifying development and maintenance.

Technical Specifications

• Catalog Number: FX5U-64MT-ESS
• Inputs: 32 digital (selectable sink/source for versatile wiring).
• Outputs: 32 transistor sink (0.5 A maximum current per point).
• Program Capacity: Generous 128,000 steps, accommodating complex control logic.
• Data Registers: Expansive 64,000 words for comprehensive data storage and manipulation.
• Input Voltage: 24 V DC ±10%, ensuring stable operation.
• Communication: Integrated Ethernet, USB Device port, and RS-485 (via optional adapter) for robust networking.
• Mounting: Flexible DIN rail or direct panel mounting options.
• Dimensions: Approximately 285 × 90 × 83 mm (Width × Height × Depth), optimized for compact installations.
• Protection Class: IP10 (open type), suitable for controlled industrial environments.
• Operating Temperature: 0 °C to +55 °C, ensuring reliability in various conditions.
• Certifications: Compliant with CE, UL, cUL, and RoHS standards, guaranteeing quality and safety.

Applications

• Multi-axis Motion Control: Provides precise and synchronized control for complex robotic and automation systems.
• Packaging and Assembly Systems: Optimizes high-speed production lines with accurate control over various processes.
• OEM Control Panels: Ideal for integration into custom machinery and equipment, offering robust and reliable control.
• Real-time Monitoring and Data Logging: Enables continuous data acquisition and analysis for process optimization and preventative maintenance.
• IIoT-enabled and Scalable Factory Automation: Forms the backbone of modern smart factories, facilitating seamless data exchange and scalable operations.

Why Choose This Model?

The Mitsubishi FX5U-64MT-ESS stands out as an exceptional choice for demanding industrial applications due to its blend of high performance, flexibility, and reliability. This model offers a massive I/O capacity within an incredibly compact footprint, maximizing control capabilities while minimizing panel space requirements. Its advanced integrated communication and motion capabilities ensure smooth, precise, and highly responsive automation processes, critical for modern manufacturing.

Furthermore, the FX5U-64MT-ESS provides unparalleled flexible expansion options through its compatibility with FX5 modules, allowing your automation system to grow and adapt to evolving needs without a complete overhaul. Backed by the trusted Mitsubishi FX5U reliability and comprehensive support, you can be confident in the long-term performance and durability of your investment. This model is ideally suited for mid-size systems that require both high I/O count and exceptional processing speed, making it a strategic asset for optimizing efficiency and productivity.
