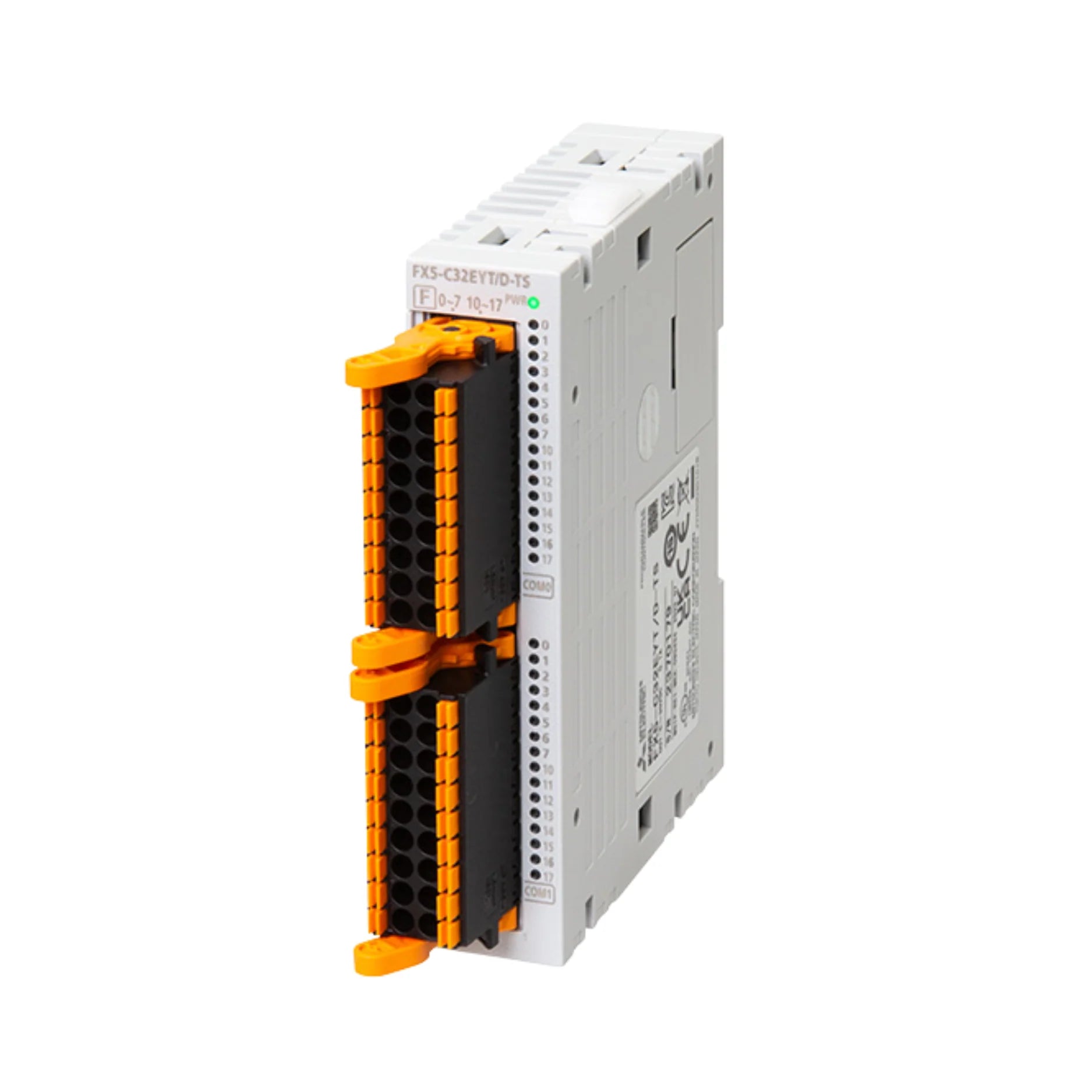

Mitsubishi FX5-C32EYT/D

Overview

The Mitsubishi FX5-C32EYT/D is a high-performance 32-point transistor output module meticulously engineered for seamless integration with the advanced FX5 series PLC platform. This robust module delivers 24V DC source-type outputs, providing exceptional high-speed switching capabilities and supporting high-density wiring configurations. It is the ideal solution for precisely controlling a diverse array of digital devices within demanding industrial automation environments, ensuring optimal operational efficiency and reliability. Its compact design belies its powerful functionality, making it a cornerstone for modern control systems requiring numerous discrete outputs.

Key Features

• Series: FX5
• Output Points: 32 channels
• Output Type: Transistor (source)
• Output Voltage: 24V DC
• Mounting Type: DIN rail or direct panel mount
• Status Indicators: Individual LED for each output
• Terminal Type: Screw terminal block
• Protection: Built-in short-circuit and overload protection ensures device longevity and system safety.
• Application: General-purpose digital output, offering broad compatibility across various industrial applications.

Technical Specifications

• Catalog Number: FX5-C32EYT/D
• Voltage Rating: 24V DC
• Output Type: Source-type transistor
• Number of Outputs: 32
• Max Output Current: 0.5A per point, 4A per common
• ON Voltage Drop: ≤ 0.8V
• OFF Leakage Current: ≤ 0.1mA
• Response Time: OFF → ON ≤ 0.2 ms / ON → OFF ≤ 0.2 ms, ensuring rapid and precise control.
• Ambient Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Protection Rating: IP20
• Dimensions: Approximately 90 x 65 x 83 mm (Height x Width x Depth)
• Weight: Approximately 0.25 kg
• Certifications: CE, UL, RoHS, guaranteeing compliance with international quality and safety standards.

Applications

The versatility and high performance of the Mitsubishi FX5-C32EYT/D make it an indispensable component for a multitude of industrial applications, including but not limited to:

• Controlling indicators and relays in complex systems.
• General machine automation, from simple to sophisticated machinery.
• Conveyor systems requiring precise and synchronized movements.
• High-speed discrete output tasks where timing is critical.
• OEM and modular control panels, offering flexible and scalable solutions for manufacturers.

Why Choose This Model?

The FX5-C32EYT/D stands out as a superior choice for several compelling reasons:

• High Output Density: With 32 channels integrated into a remarkably compact module, it optimizes panel space without compromising functionality.
• Fast Switching Performance: Its rapid response time makes it an ideal solution for time-critical systems where precision and speed are paramount.
• Reliable Output Control: Equipped with built-in diagnostics and individual LED indicators for each output, it provides enhanced operational visibility and simplifies troubleshooting.
• Seamless Integration: Specifically designed for Mitsubishi's FX5 PLCs, it ensures effortless setup and harmonious operation within existing or new FX5 series architectures.
• Versatile Wiring Options: Featuring robust screw terminals, it facilitates easy and secure installation, accommodating various wiring configurations.
• Robust Protection: Built-in short-circuit and overload protection safeguards both the module and connected devices, prolonging equipment life and enhancing system integrity.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi FX5-C32EYT/D 32-point transistor output module. This essential component is readily available and ships worldwide, ensuring prompt delivery to meet your project deadlines. Discover more options and expand your automation solutions by returning to the Mitsubishi FX5 Series PLC collection. Additionally, explore our comprehensive range of Mitsubishi MELSEC Programmable Controllers (PLC) to uncover scalable automation solutions, from tried-and-true legacy systems to cutting-edge next-generation PLCs engineered for unparalleled performance, connectivity, and flexibility in today's dynamic industrial landscape.
