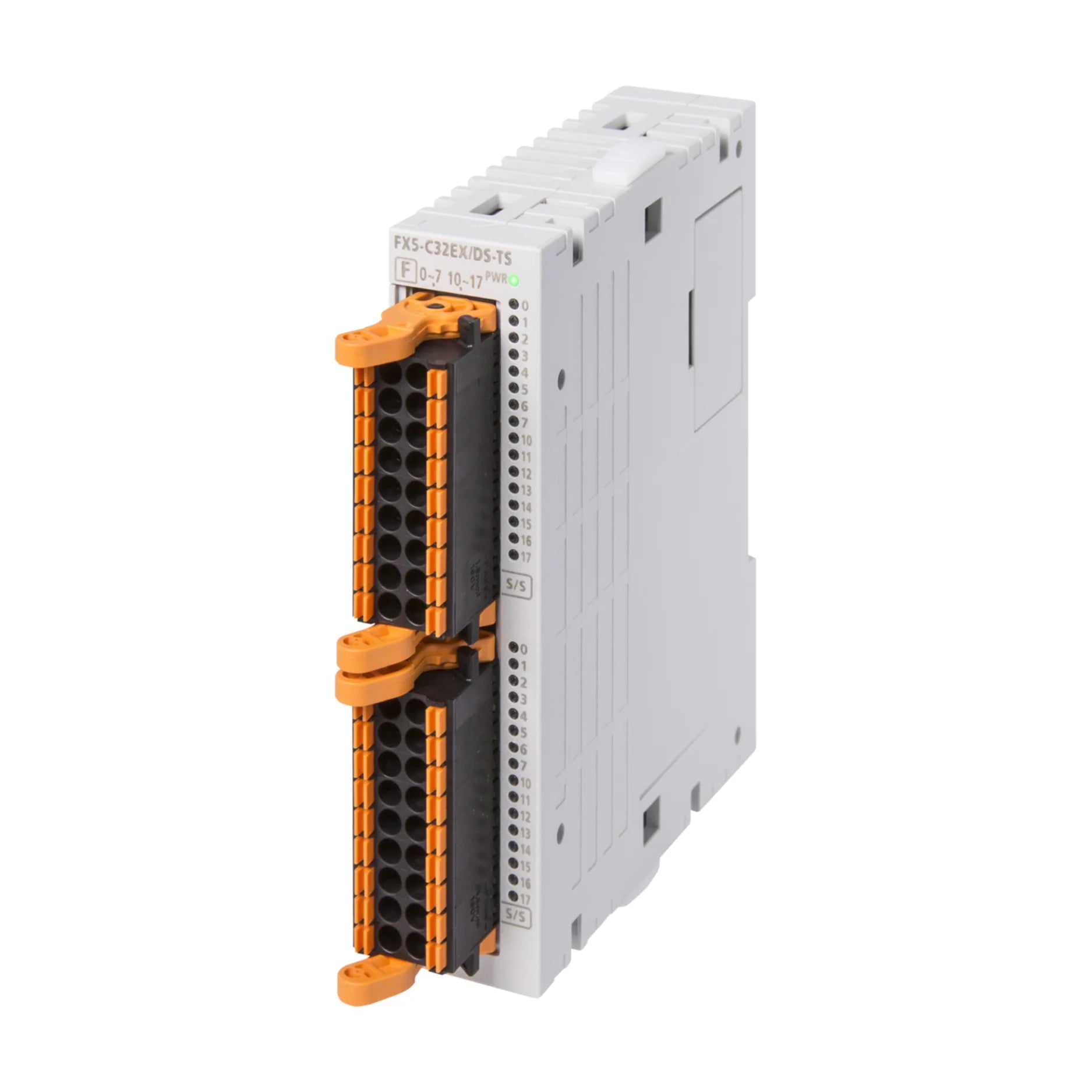

Mitsubishi FX5-C32EX/D

Overview

The Mitsubishi FX5-C32EX/D is an advanced 32-point digital input module meticulously engineered for seamless integration within the MELSEC FX5 series Programmable Logic Controllers (PLCs). This module is an indispensable component for modern industrial automation systems, offering robust and reliable monitoring of multiple digital signals. With its support for versatile 24V DC sink/source inputs, convenient DIN rail mounting, and clear LED indicators, the FX5-C32EX/D stands out as a compact yet powerful solution for enhancing control panel efficiency and precision. Its design prioritizes ease of use and diagnostic capability, making it an ideal choice for a wide array of demanding applications.

Key Features

• High-Density Input: Provides 32 digital input points, maximizing signal monitoring capacity within a minimal footprint.
• Flexible Input Type: Supports both 24V DC sink and source input configurations, offering adaptability to various sensor and control requirements.
• Visual Diagnostics: Equipped with individual LED indicators for each input, enabling quick and effortless status monitoring and troubleshooting.
• Space-Saving Design: Its compact form factor is optimized for efficient use of panel space, crucial in densely packed industrial environments.
• Robust Mounting Options: Designed for either DIN rail or panel mounting, ensuring secure and straightforward installation.
• Enhanced Isolation: Features photocoupler isolation to protect the PLC from electrical noise and voltage spikes, ensuring reliable operation.
• Standard Compatibility: Utilizes standard industrial I/O wiring for easy integration into existing systems.
• Reliable Terminal Block: Employs screw terminal blocks for secure and stable wiring connections.

Technical Specifications

• Catalog Number: FX5-C32EX/D
• Series: MELSEC FX5
• Input Points: 32 digital inputs
• Rated Input Voltage: 24V DC
• Input Current: 7 mA (at 24V DC)
• Response Time: OFF → ON: ≤ 10 ms / ON → OFF: ≤ 10 ms
• Input Type: Sink or source selectable
• Input Resistance: Approx. 3.3 kΩ
• Insulation Resistance: ≥ 50 MΩ
• Ambient Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Protection Rating: IP20
• Dimensions (Approx.): 90 x 65 x 83 mm
• Weight (Approx.): 0.25 kg
• Certifications: CE, UL, RoHS

Applications

The Mitsubishi FX5-C32EX/D is a highly versatile module suited for a broad spectrum of industrial applications, including:

• Precise monitoring of digital sensor signals in manufacturing and processing plants.
• Integration of switch and pushbutton inputs for operator control panels.
• Expansion of input capabilities for control panels in complex machinery.
• Core component in OEM machine automation for various industries.
• General-purpose PLC input tasks across diverse automation scenarios, from packaging to material handling.

Why Choose This Model?

The FX5-C32EX/D stands as a superior choice for industrial automation due to its optimal balance of performance, flexibility, and reliability. Boasting 32 high-density input points, it significantly reduces the need for multiple modules, saving valuable panel space and simplifying wiring. Its ability to support both sink and source configurations provides unparalleled flexibility in connecting to different types of field devices. Furthermore, the module's robust construction, fast response times, and clear LED status indicators ensure reliable operation and straightforward diagnostics, minimizing downtime. With its easy DIN rail or panel mounting and comprehensive certifications, the FX5-C32EX/D offers a cost-effective and efficient solution for upgrading or implementing new automation systems. Mitsubishi Electric's commitment to quality ensures a long-lasting and dependable component for your critical operations.

Order Now

The Mitsubishi FX5-C32EX/D digital input module, a cornerstone for efficient and reliable industrial automation, is readily available and ships worldwide. Enhance your MELSEC FX5 series PLC system with this high-performance module. For further expansion and compatible components, we invite you to return to the Mitsubishi FX5 Series PLC collection. Discover our extensive selection of Mitsubishi MELSEC Programmable Logic Controllers (PLCs), designed to deliver scalable, high-performance, and flexible automation solutions for every industrial requirement, from legacy system upgrades to cutting-edge next-generation control.
