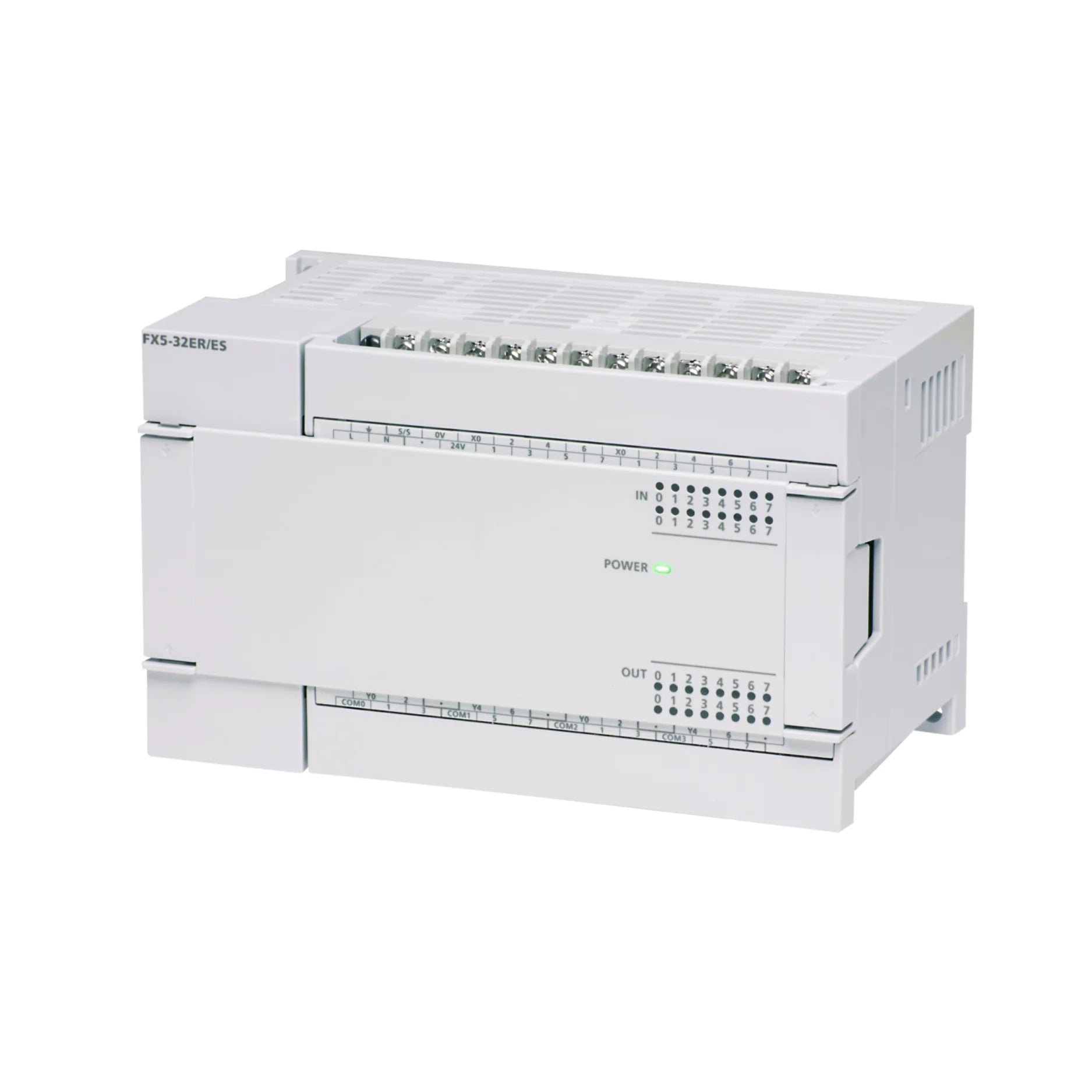

Mitsubishi FX5-32ER/ES

Overview

The Mitsubishi FX5-32ER/ES is a cutting-edge, compact Programmable Logic Controller (PLC) engineered to deliver robust performance within a space-saving footprint. As a key component of Mitsubishi Electric's advanced iQ-F FX5 series, this PLC is designed for modern industrial automation challenges. It boasts 32 versatile I/O points, comprising 16 digital inputs for comprehensive sensing and 16 relay outputs, ideally suited for directly managing a diverse range of high-voltage AC/DC or inductive loads. Powered by a flexible 100–240 V AC supply, the FX5-32ER/ES ensures seamless integration into various electrical environments. Its compatibility with the intuitive GX Works3 programming software streamlines development and deployment, making it an excellent choice for a wide array of mid-range control applications that demand both sophisticated input interpretation and robust power-switching capabilities.

Key Features

• 32 I/O Configuration: Equipped with 16 precise digital inputs and 16 reliable relay outputs, offering extensive flexibility for diverse control scenarios.
• Wide AC Power Input: Operates efficiently on a broad 100–240 V AC supply, enhancing adaptability across different power systems.
• High-Capacity Relay Outputs: Designed with robust relay outputs, perfectly suited for controlling high-voltage AC/DC loads or demanding inductive devices.
• Integrated Ethernet Port: Features a built-in 100 Mbps Ethernet port, facilitating seamless network connectivity and integration into modern Industrial Internet of Things (IIoT) architectures.
• USB Device Port: Includes a convenient USB device port for easy programming, rapid data logging, and efficient system diagnostics.
• Expandable Architecture: Fully compatible with a wide range of FX5 extension modules, allowing for scalable system expansion as your automation needs evolve.
• Advanced Built-in Functionality: Incorporates powerful built-in functions such as high-speed counters, precision timers, and rapid high-speed I/O, optimizing control performance.
• GX Works3 Software Support: Fully supported by Mitsubishi Electric's powerful GX Works3 programming software, ensuring efficient development and easy system management.

Technical Specifications

• Power Supply: 100–240 V AC
• Digital Inputs: 16 (Sink/Source selectable)
• Relay Outputs: 16 (Voltage-free contacts)
• Program Capacity: Up to 64 K steps
• Execution Speed: Approximately 34 ns per instruction (bit/step)
• Communication Ports: Ethernet (100 Mbps), USB Device
• Mounting Options: Versatile DIN-rail or direct panel mounting
• Operating Temperature: 0 to 55 °C

Applications

• Factory and Process Automation: Ideal for controlling intricate manufacturing processes and assembly lines in industrial environments.
• Conveyor, Packaging, and Material Handling Systems: Optimizes the efficiency and precision of material movement and packaging operations.
• HVAC and Building Management Systems: Provides reliable control for heating, ventilation, air conditioning, and overall smart building infrastructure.
• Distributed Control Panels and Remote I/O: Facilitates robust control in decentralized systems, enhancing flexibility and scalability.
• Applications Requiring Mixed I/O and High-Voltage Switching: Perfectly suited for environments where a combination of diverse input sensing and direct control of high-power loads is essential.

Why Choose This Model?

The Mitsubishi FX5-32ER/ES stands out as a superior choice for a multitude of reasons. Its compact design belies a powerful capability, offering a versatile automation solution without consuming excessive panel space. The inclusion of reliable relay outputs provides exceptional flexibility, allowing you to directly drive a wide array of varied loads, from simple indicator lights to more complex motor starters, without the need for intermediate relays. With a built-in Ethernet port, this PLC simplifies integration into modern Industrial Internet of Things (IIoT) setups, enabling seamless data exchange and remote monitoring. Its inherent scalability, through compatibility with a comprehensive range of FX5 extension modules, future-proofs your investment, allowing for easy expansion as your operational demands grow. Furthermore, choosing Mitsubishi Electric means investing in unparalleled quality, supported by user-friendly programming with GX Works3 and the promise of consistent, reliable performance for mission-critical applications.
