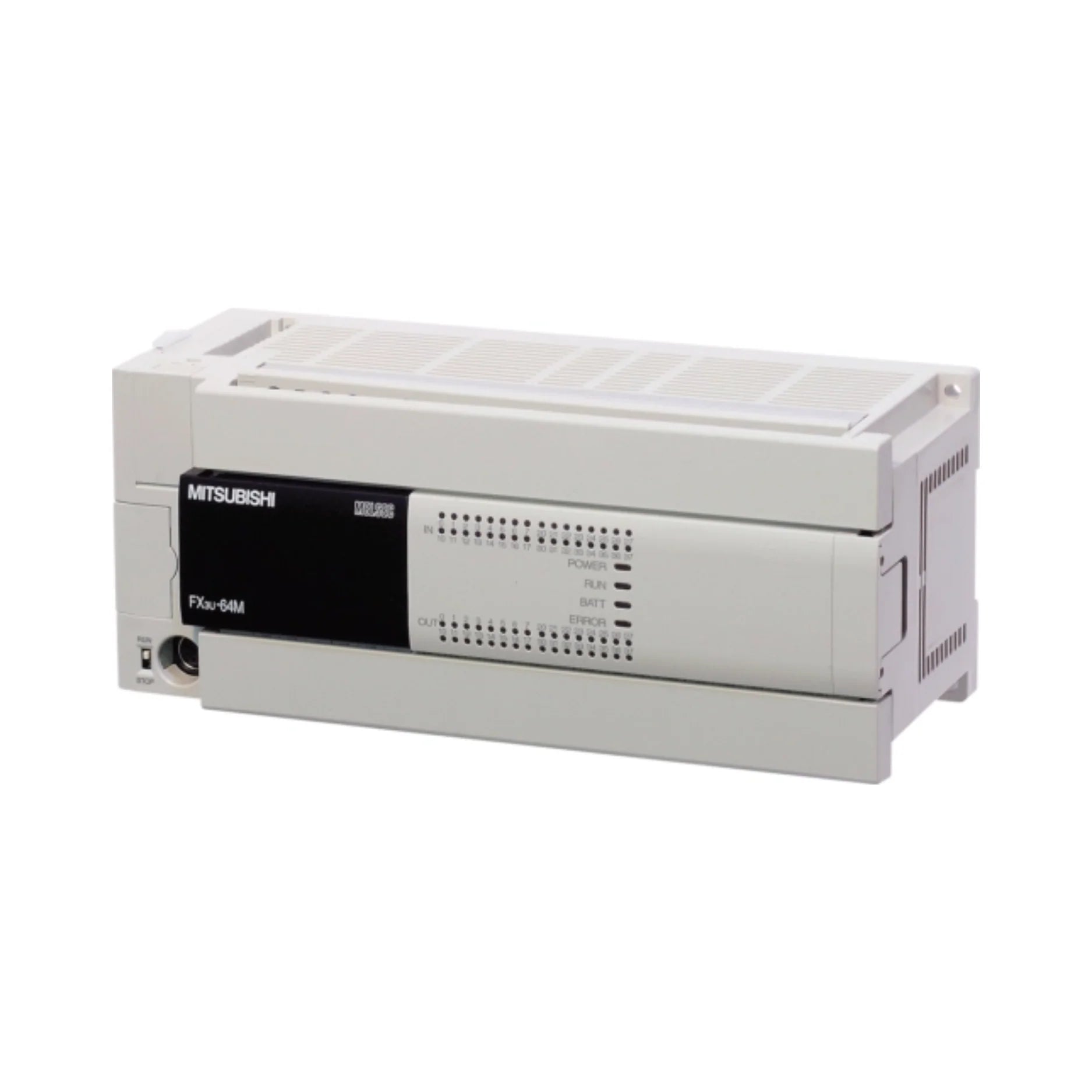

Mitsubishi FX3U-64MT-DS

Overview

The Mitsubishi FX3U-64MT-DS is a high-performance Programmable Logic Controller (PLC) main unit from the renowned FX3U series, engineered to deliver exceptional control and flexibility for a wide array of industrial automation challenges. This robust PLC offers a substantial 64 total I/O points, precisely configured with 32 digital inputs and 32 transistor sink outputs, making it suitable for complex machinery and intricate processes. Designed for seamless integration into existing systems, it operates efficiently on a 24 V DC power supply. The FX3U-64MT-DS stands out for its ultrafast program execution, sophisticated positioning control capabilities, and comprehensive support for modular expansion, allowing it to adapt to evolving automation needs. With its built-in real-time clock and advanced instruction set including floating-point arithmetic and PID control, this controller provides a powerful and reliable solution for modern manufacturing and process control environments.

Key Features

• Total I/O: 64 points (32 digital inputs, 32 transistor sink outputs) providing extensive connectivity for diverse applications.
• Output Type: High-reliability Transistor (Sink type) outputs, ensuring precise and efficient switching.
• Power Supply: Operates on a standard 24 V DC ±10% power supply, compatible with most industrial setups.
• High-Speed Performance: Benefits from rapid program execution and advanced positioning control, crucial for time-sensitive operations.
• Modular Expandability: Fully compatible with a broad range of FX3U/FX2N expansion and special function modules, allowing for customized system growth.
• Integrated Real-Time Clock: Facilitates accurate time-stamping and scheduling for enhanced process management.
• Pulse Output: Dedicated pulse output capabilities for precise motion control applications.
• Advanced Instruction Set: Features a rich instruction set, including floating-point operations and PID control, enabling sophisticated logic and process regulation.

Technical Specifications

• Catalog Number: FX3U-64MT-DS
• Inputs: 32 digital inputs (configurable as sink/source)
• Outputs: 32 transistor sink outputs (rated at 0.5 A per point maximum)
• Input Voltage: 24 V DC ±10%
• Power Consumption: Approximately 30 W, ensuring energy-efficient operation.
• Program Memory: Generous 64,000 steps of program memory to accommodate complex automation programs.
• Communication: Standard RS-422 port for reliable serial communication, with options for USB and Ethernet connectivity via dedicated adapters.
• Mounting: Versatile mounting options including standard DIN rail or direct panel mounting.
• Dimensions: Compact form factor of 285 × 90 × 86 mm (W×H×D) for efficient space utilization.
• Protection Class: IP10 (open type) for standard industrial environments.
• Certifications: Complies with international safety and quality standards, including CE, UL, and cUL.

Applications

• Large OEM Equipment: Ideal for integration into sophisticated original equipment manufacturer machinery requiring high I/O counts and advanced control.
• Multi-Axis Motion and Conveyor Systems: Provides precise control for synchronized multi-axis motion and efficient management of conveyor lines.
• Packaging and Labeling Lines: Enhances automation and throughput in high-speed packaging and labeling operations.
• Process Automation with Modular Scalability: Offers flexible solutions for process control, allowing for seamless expansion and adaptation to changing requirements.
• Data Logging and Distributed Control: Facilitates reliable data acquisition and supports distributed control architectures for enhanced system management.

Why Choose This Model?

The Mitsubishi FX3U-64MT-DS stands as a premier choice for industrial automation due to its compelling blend of performance, flexibility, and reliability. This model distinguishes itself with a substantial I/O capacity packed into a compact footprint, allowing for powerful automation solutions without consuming excessive panel space. Its renowned high-speed processing capabilities ensure precise and responsive control, critical for maintaining efficiency and accuracy in demanding applications. Furthermore, the FX3U-64MT-DS boasts extensive compatibility with a wide array of existing FX series modules, providing unparalleled flexibility for system design and future expansion. This makes it an ideal foundation for scalable and modular system designs, enabling businesses to adapt their automation infrastructure as their needs evolve. Backed by Mitsubishi Electric's trusted reputation for engineering excellence, the FX3U-64MT-DS guarantees robust performance and long-term reliability in even the most challenging industrial environments, ensuring uninterrupted operation and maximum productivity.
