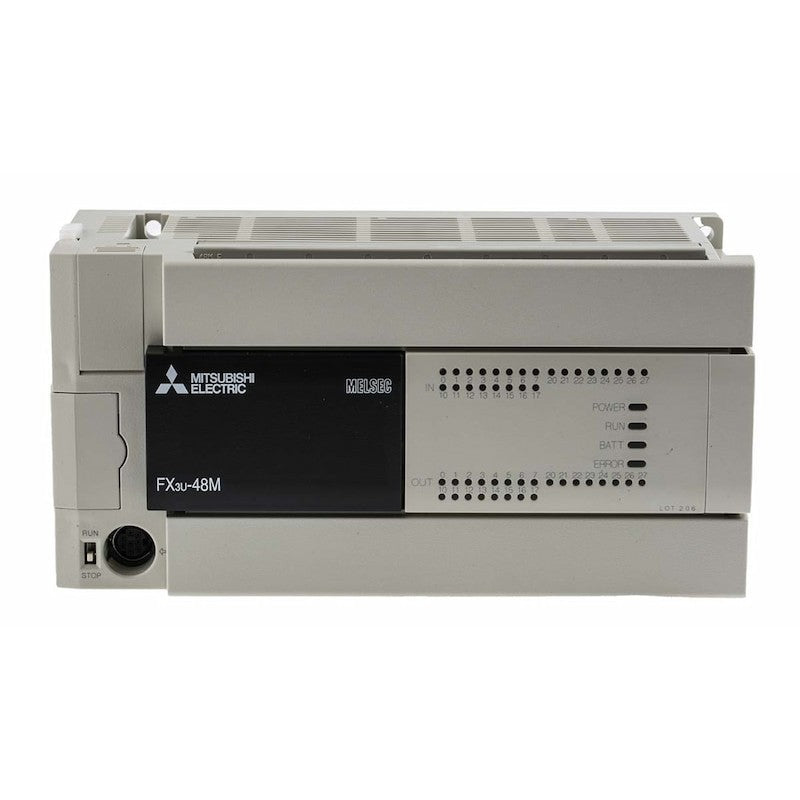

Mitsubishi FX3U-48MR/ES-A

Overview

Elevate your automation capabilities with the Mitsubishi FX3U-48MR/ES-A, a sophisticated yet compact 48-point programmable logic controller (PLC) from the renowned MELSEC-F FX3U Series. Engineered for robustness and efficiency, this unit integrates 24 premium digital inputs and 24 high-performance relay outputs, making it an ideal solution for a diverse range of medium-scale industrial automation tasks. Its space-saving design ensures seamless integration into existing control panels without compromising on functionality or reliability, delivering consistent performance where it matters most.

Key Features

• Precision Digital Inputs: 24 digital inputs (24V DC sink/source) offer versatile connectivity for a multitude of sensors and control signals.
• Robust Relay Outputs: Equipped with 24 reliable relay outputs (2A at 240V AC or 30V DC) for effective control over various actuators and devices.
• Wide Power Compatibility: Operates efficiently with a 100–240V AC power supply, ensuring broad application across different electrical standards.
• Expansive Program Capacity: A generous 64,000 steps of program memory allows for complex logic and extensive control sequences.
• High-Speed Processing: Experience rapid command execution with an impressive LD time of 0.065 µs and MOV time of 0.642 µs, optimizing system response.
• Flexible Mounting Options: Designed for convenience, supporting both DIN rail and panel mount installations to suit diverse enclosure requirements.
• Integrated Communication: Features a built-in RS-422 port, with optional expansions available for RS-232C, RS-485, USB, and Ethernet, maximizing connectivity.
• Extensible I/O: Expand system capabilities up to an impressive 384 I/O points using CC-Link or AnyWireASLINK, adapting to evolving demands.
• Intuitive Programming: Compatible with industry-leading programming software, GX Works2 or GX Developer, simplifying program development and maintenance.

Technical Specifications

• Model: FX3U-48MR/ES-A
• Series: MELSEC-F FX3U
• Input Voltage Range: 100–240V AC
• Power Consumption: 40 W
• Dimensions (W × H × D): 182 × 90 × 86 mm
• Weight: Approximately 0.85 kg
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Certifications: CE, UL, cUL, UKCA, EAC – ensuring global compliance and safety standards.
• Environmental Compliance: RoHS compliant for eco-friendly operation.

Applications

The Mitsubishi FX3U-48MR/ES-A PLC is engineered for versatility, making it a perfect fit for a myriad of industrial applications requiring precise and reliable control:

• Medium-sized machinery control: Provides robust and accurate command for various manufacturing and processing equipment.
• Building automation systems: Enhances the efficiency and control of intelligent building infrastructure.
• Conveyor systems: Ensures smooth and synchronized operation of material handling and logistics lines.
• Packaging equipment: Delivers high-speed and precise control for automated packaging solutions.
• OEM equipment integration: An ideal core component for original equipment manufacturers seeking reliable, compact automation.

Why Choose This Model?

Opting for the Mitsubishi FX3U-48MR/ES-A means investing in unparalleled reliability, advanced features, and a commitment to quality that Mitsubishi Electric is renowned for:

• Unmatched Reliability: Built with Mitsubishi's rigorous quality standards, guaranteeing long-term, stable performance in demanding industrial environments.
• Compact Design, Powerful Performance: Its small footprint belies its powerful processing capabilities, making it perfect for installations where space is a premium.
• Integrated I/O Simplicity: Offers a comprehensive set of integrated inputs and outputs, streamlining system architecture and reducing wiring complexities.
• Exceptional Expandability: With seamless I/O expansion and diverse communication options, this PLC adapts effortlessly to growing operational needs and future demands.
• Global Certifications: Adherence to international certifications like CE, UL, cUL, UKCA, and EAC underscores its quality and suitability for worldwide deployment.

Order Now

Unlock the full potential of your industrial processes with the Mitsubishi FX3U-48MR/ES-A PLC. This high-performance, compact controller is available for global shipping, bringing Mitsubishi Electric's renowned reliability directly to your operation. Enhance your automation systems today by securing this essential component.

For a wider array of high-performance compact controllers, including FX3U, FX3UC, FX3G, and FX3S models, explore the comprehensive Mitsubishi FX3 Series PLC. Discover the full spectrum of Mitsubishi MELSEC Programmable Controllers (PLC) designed for machine control, motion, networking, and cutting-edge industrial applications, offering scalable solutions to meet every challenge.
