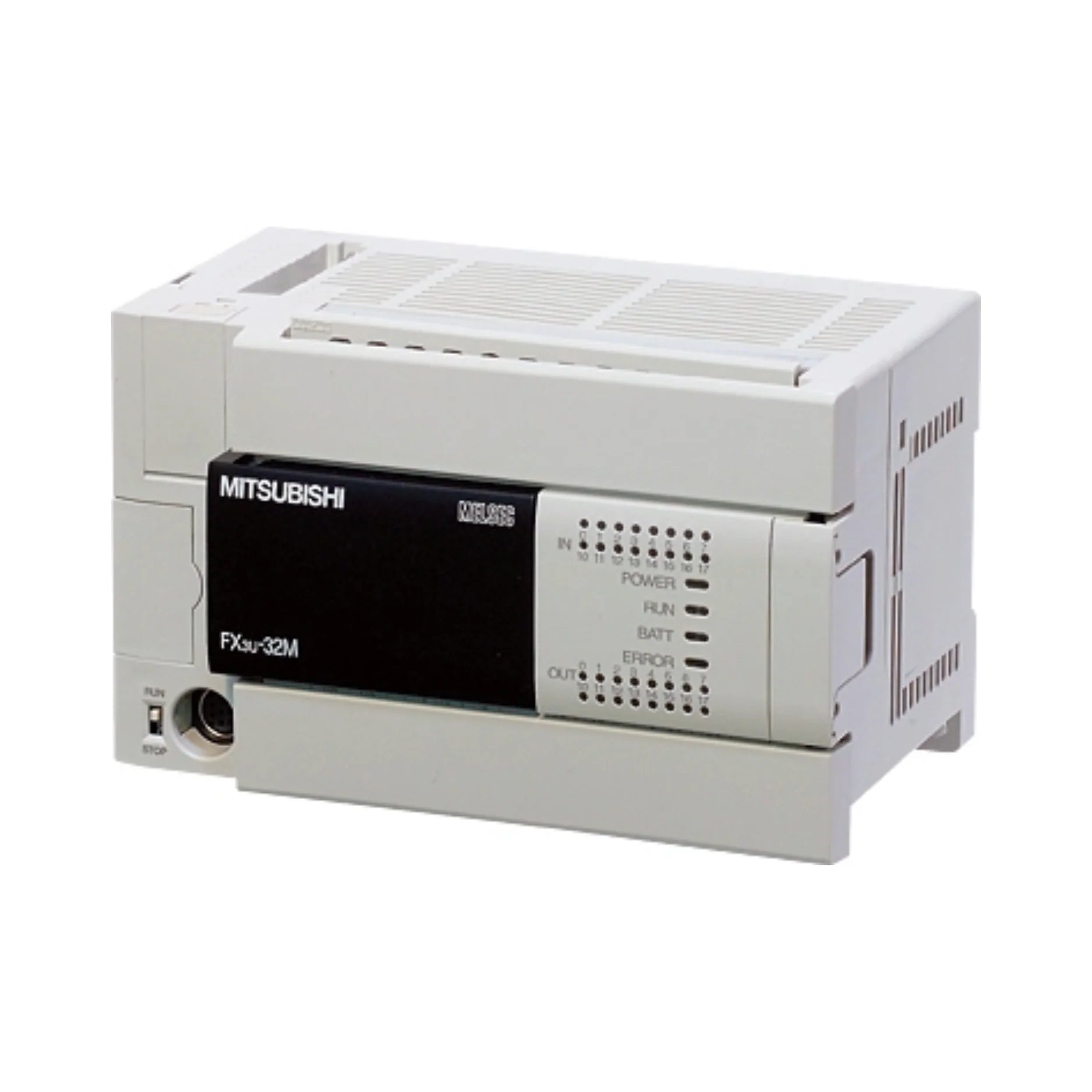

Mitsubishi FX3U-32MT-ESS PLC, 32 I/O (16 inputs, 16 transistor outputs), 24 V DC, high-speed embedded FX3U controller

Mitsubishi FX3U-32MT-ESS

$481.00
$481.00
Skip to product information
Mitsubishi FX3U-32MT-ESS PLC, 32 I/O (16 inputs, 16 transistor outputs), 24 V DC, high-speed embedded FX3U controller
  • Mitsubishi FX3U-32MT-ESS PLC, 32 I/O (16 inputs, 16 transistor outputs), 24 V DC, high-speed embedded FX3U controller
  • Mitsubishi FX3U-32MT-ESS PLC, 32 I/O (16 inputs, 16 transistor outputs), 24 V DC, high-speed embedded FX3U controller
Mitsubishi FX3U-32MT-ESS

Mitsubishi FX3U-32MT-ESS

$481.00
$481.00

Overview

The Mitsubishi FX3U-32MT-ESS is a cutting-edge PLC CPU module designed for demanding industrial automation tasks. As a core component of the renowned FX3U series, this high-performance controller delivers exceptional speed, precision, and reliability. Featuring 32 digital I/O points (16 inputs and 16 transistor outputs), it is meticulously engineered for 24 V DC systems. Its embedded architecture ensures rapid processing and precise I/O timing, making it an ideal choice for advanced control applications spanning packaging, conveyor systems, and diverse automation environments. This module stands out for its robust construction, intuitive integration, and capacity to handle complex control logic with ease, providing a solid foundation for optimizing operational efficiency and productivity.

Key Features

  • Series: FX3U
  • Power Supply: 24 V DC
  • Total I/O Points: 32 (16 digital inputs, 16 sink transistor outputs)
  • Output Type: Transistor (sink type)
  • High-Speed I/O: Engineered for rapid response and exceptional timing accuracy, critical for time-sensitive applications.
  • Integrated Functions: Comprehensive built-in capabilities including counters, timers, pulse outputs, and expansive internal memory for versatile programming.
  • Program Capacity: Generous 32k steps, allowing for complex and sophisticated control programs.
  • LED Indicators: Clear and intuitive LED indicators provide immediate visual feedback on I/O status and CPU operation for quick diagnostics.
  • Mounting: Flexible installation options with compatibility for both DIN rail and panel mounting.

Technical Specifications

  • Model Number: FX3U-32MT-ESS
  • Digital Inputs: 16 (24 V DC sink/source compatible)
  • Digital Outputs: 16 (sink-type transistor outputs, rated at 0.5 A per point)
  • Max Output Current: 0.5 A per point, with a robust 4 A maximum per common rail.
  • High-Speed Counter/Pulse: Dedicated built-in channels for precise high-speed counting and pulse generation.
  • Processing Speed: Impressively fast instruction speed, typically less than 1 μs/bit, ensuring rapid execution of control logic.
  • Program Memory: A substantial maximum of 32,000 steps for extensive program development.
  • Ambient Temperature: Operational range from 0 °C to 55 °C, suitable for industrial environments.
  • Protection Rating: IP10 (when installed within an appropriate enclosure) for enhanced durability.
  • Certifications: Complies with international standards including CE, UL, cUL, and RoHS.
  • Dimensions: Approximately 90 mm × 150 mm × 86 mm (Height × Width × Depth).
  • Weight: Approximately 0.9 kg.

Applications

  • Conveyor and Packaging Line Automation: Optimized for precise control and synchronization in high-speed material handling.
  • High-Speed Counting and Encoder Feedback: Essential for applications requiring accurate position and speed monitoring.
  • Stepper and Servo Pulse Generation: Enables precise motion control for a wide range of industrial machinery.
  • Industrial Machine Control with Fast I/O Demands: Ideal for machinery requiring rapid response and precise timing.
  • OEM and Compact Control Panel Designs: Its compact form factor makes it perfect for integration into space-constrained applications.

Why Choose This Model?

The Mitsubishi FX3U-32MT-ESS is engineered to meet the rigorous demands of modern industrial automation. Its high-speed performance, featuring exceptional I/O response times, ensures precise timing and control for even the most critical tasks. With a balanced allocation of 16 inputs and 16 transistor outputs expertly integrated into a single CPU, this module offers a compact yet powerful solution. Its efficiency makes it perfectly suited for control systems that rely on embedded logic, leading to streamlined operations and enhanced system reliability. Furthermore, the built-in diagnostic LEDs provide immediate feedback, significantly aiding in quick installation and simplifying ongoing maintenance. As a component of the trusted Mitsubishi FX3 platform, it guarantees seamless compatibility with FX3 expansion modules and the intuitive GX Works programming environment, ensuring a scalable and future-proof automation solution. This PLC CPU module represents a robust choice for engineers and system integrators seeking unwavering performance and reliability.
