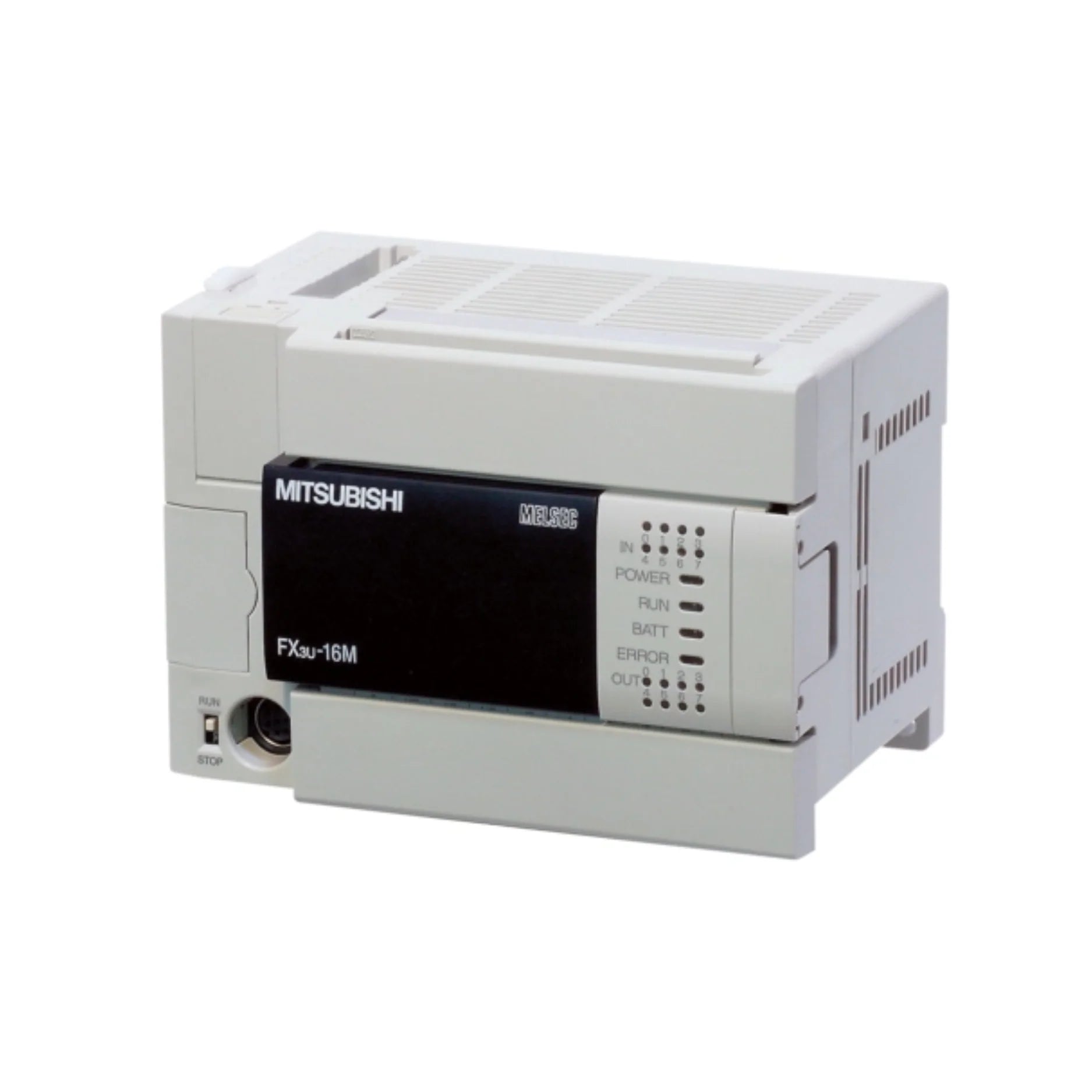

Mitsubishi FX3U-16MR-DS

Overview

The Mitsubishi FX3U-16MR-DS is a versatile and high-performance Programmable Logic Controller (PLC) from the renowned FX3U Series, engineered to meet the demands of modern industrial automation. This compact yet powerful main unit is equipped with 16 integrated I/O points, comprising 9 digital inputs and 7 robust relay outputs, making it an excellent choice for a wide array of small to medium-scale control applications. Designed for seamless integration into diverse systems, the FX3U-16MR-DS boasts impressive processing capabilities and a flexible architecture that supports a comprehensive range of expansion modules. Its compatibility with advanced programming environments like GX Works ensures effortless configuration and scalability, empowering engineers to achieve precise control and enhanced operational efficiency across various industrial landscapes.

Key Features

• Integrated 16 I/O Points: Efficiently manages 9 digital inputs and 7 relay outputs, providing ample control for numerous applications.
• Broad Power Supply Compatibility: Operates reliably across a wide voltage range of 100–240 V AC, accommodating diverse power environments.
• Exceptional Processing Speed: Features built-in high-speed processing for rapid execution of programs and commands, ensuring responsive system performance.
• Expansive Scalability: Fully compatible with various FX3U/FX3UC expansion modules, allowing for future system growth and enhanced functionality.
• Durable Relay Outputs: Equipped with robust relay outputs for direct switching of higher current loads, offering reliability and convenience.
• Compact and Versatile Mounting: Designed for space-saving DIN rail or panel mounting, ideal for enclosures with limited room.
• Advanced Software Support: Integrates seamlessly with GX Developer, GX Works2, and GX Works3 software for intuitive programming and advanced diagnostics.

Technical Specifications

• Catalog Number: FX3U-16MR-DS
• Series: FX3U
• Power Supply: 100–240 V AC
• Inputs: 9 digital inputs (24 V DC sink/source)
• Outputs: 7 relay outputs
• Output Current: 2 A/point, 8 A total (maximum)
• Program Capacity: 64k steps
• Processing Speed: 0.21 μs/instruction (basic commands)
• Communication: Built-in RS-422, with options for USB/Ethernet expansion modules
• Mounting: DIN rail or panel
• Dimensions: Approximately 90 × 86 × 75 mm
• Weight: Approximately 0.35 kg
• Certifications: CE, UL, cUL

Applications

The Mitsubishi FX3U-16MR-DS PLC is exceptionally well-suited for a broad spectrum of industrial applications requiring precise, reliable control and compact design:

• Small Machinery Automation: Optimizes the control of individual machines within larger production lines, enhancing efficiency and reducing manual intervention.
• Packaging and Labeling Systems: Provides accurate and high-speed control for packaging machinery, ensuring consistency and minimizing errors.
• OEM Equipment Control: An ideal embedded controller for original equipment manufacturers, offering a dependable and customizable solution.
• Industrial Process and Batch Control: Manages complex industrial processes and batch operations with precision, maintaining product quality and operational safety.
• Energy-Efficient Control Panels: Contributes to the design of compact and energy-saving control panels due to its efficient power consumption and small footprint.

Why Choose This Model?

The Mitsubishi FX3U-16MR-DS stands out as a superior choice for your automation needs due to its blend of performance, flexibility, and reliability. This model offers high-speed processing and a flexible architecture, making it adaptable to diverse and evolving application requirements. Its inherent scalability, facilitated by a wide range of I/O and communication options, ensures that your system can grow and adapt without extensive overhauls. Furthermore, its robust construction and compact design make it a perfect fit for installations where space is a premium, without compromising on functionality or durability. Backed by Mitsubishi Electric’s unparalleled reputation for industrial control technology, the FX3U-16MR-DS guarantees long-term operational stability and peace of mind, making it a wise investment for any industrial setting.

Order Now

Elevate your automation capabilities with the Mitsubishi FX3U-16MR-DS PLC. This high-performance, compact controller is ready to enhance your operations and streamline your processes. The FX3U-16MR-DS is available for immediate purchase and benefits from worldwide shipping to ensure you receive your essential automation components swiftly. For further high-performance compact controllers, explore our extensive range within the Mitsubishi FX3 Series PLCs, which includes FX3U, FX3UC, FX3G, and FX3S models. Discover the full spectrum of advanced automation solutions engineered for machine control, motion, networking, and critical industrial applications by exploring the complete line of Mitsubishi MELSEC Programmable Controllers (PLC).
