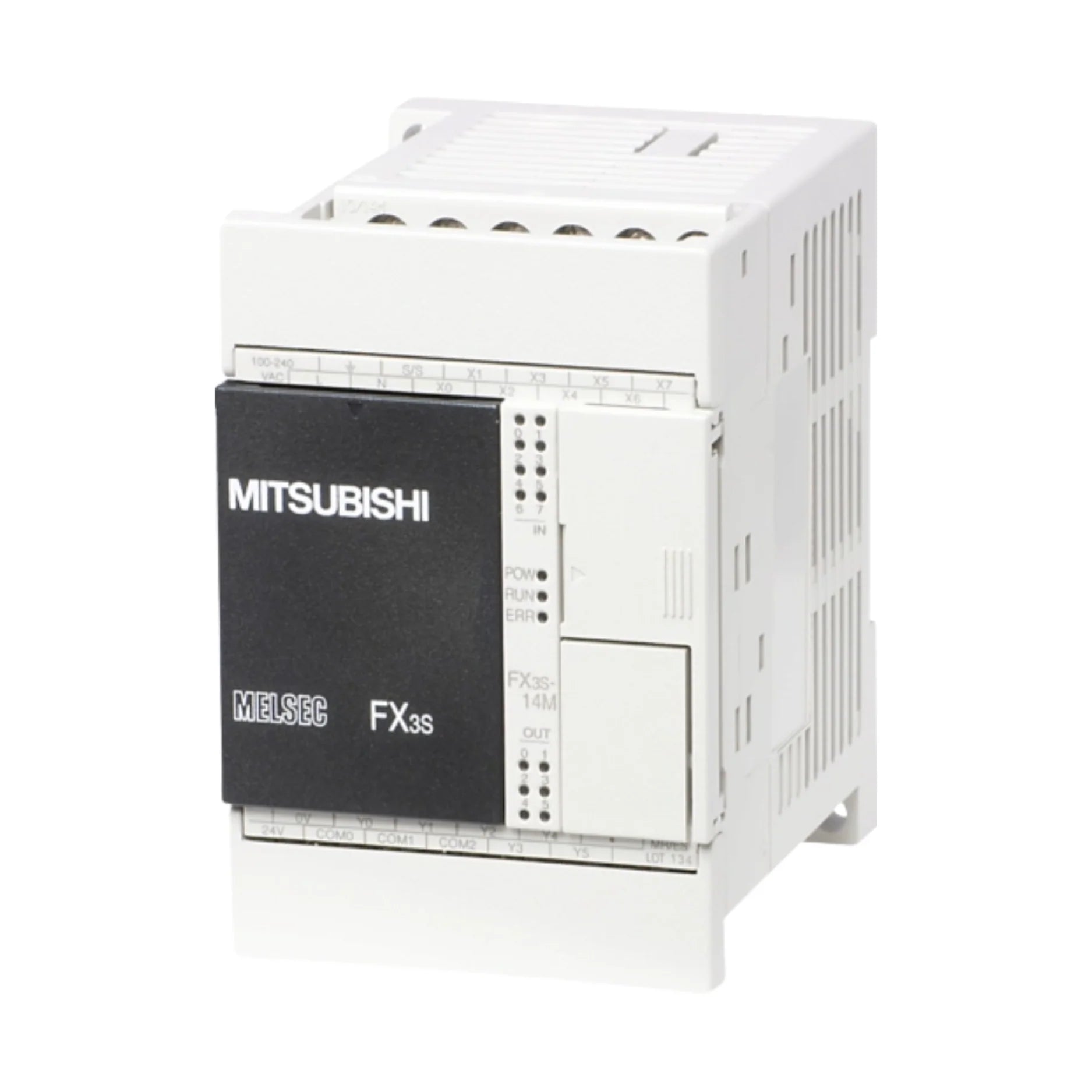

Mitsubishi FX3S-14MR/ES

Overview

The Mitsubishi FX3S-14MR/ES is a cutting-edge compact programmable logic controller (PLC) engineered for precision and reliability in small to medium-scale automation systems. As a prominent member of the esteemed FX3S series, this PLC delivers robust performance within a remarkably compact footprint, making it the ideal choice for original equipment manufacturers (OEMs) and projects with space constraints. With its integrated 14 I/O points (8 inputs and 6 relay outputs) and versatile 100–240 V AC power supply, the FX3S-14MR/ES is perfectly suited for integrating into a wide array of industrial control applications, ensuring seamless and efficient operation.

Key Features

• Optimized I/O Configuration: Equipped with 14 integrated I/O points, including 8 digital inputs for diverse sensing applications and 6 reliable relay outputs for effective control of various industrial devices.
• Flexible Power Input: Operates efficiently on a universal 100–240 V AC power supply, ensuring broad compatibility across different electrical environments and reducing installation complexities.
• Robust Relay Outputs: Features high-quality relay outputs, providing excellent isolation and suitable for controlling a variety of actuators and loads with enhanced durability.
• Integrated High-Speed Counters: Incorporates built-in high-speed counters, essential for applications requiring precise measurement and control of rapidly changing signals.
• Space-Saving Design: Its compact dimensions are specifically engineered for installations where panel space is at a premium, allowing for more flexible system designs.
• Expandable Architecture: Offers expandability with FX3S/FX3G compatible extension blocks, ensuring your automation system can grow and adapt to evolving operational needs without complete overhauls.
• Generous Program Capacity: A program memory of 4,000 steps provides ample space for complex control logic, enabling sophisticated automation sequences.
• Real-Time Clock: Includes an integrated real-time clock, crucial for applications requiring time-stamped data, scheduling, and precise sequence control.

Technical Specifications

• Catalog Number: FX3S-14MR/ES
• Inputs: 8 digital inputs (sink/source configurable for versatile sensor compatibility)
• Outputs: 6 relay outputs (rated at 2 A per point, suitable for various loads)
• Power Supply: 100–240 V AC, 50/60 Hz (wide-ranging and adaptable)
• Power Consumption: 21 VA (energy-efficient for sustained operation)
• Program Memory: 4,000 steps (allowing for comprehensive control programs)
• Communication: RS-422 (optional adapter available for enhanced connectivity)
• Dimensions (W×H×D): 90 × 73 × 86 mm (ultra-compact for minimal footprint)
• Protection Class: IP10 (open type, suitable for enclosed control panels)
• Certifications: CE, UL, cUL (assuring compliance with international safety and quality standards)

Applications

The versatility and compact nature of the Mitsubishi FX3S-14MR/ES make it an ideal solution for a multitude of automation tasks across various industries:

• OEM and Custom Machinery: Perfect for integration into bespoke machines where space and cost-effectiveness are critical.
• Small Automation Systems: Excellently suited for controlling small-scale processes, ensuring precise and reliable operation.
• Conveyor and Transport Control: Manages conveyor lines, sorting systems, and material handling equipment with efficiency and accuracy.
• HVAC and Lighting Control: Automates heating, ventilation, air conditioning, and lighting systems in commercial and industrial buildings for energy optimization and comfort.
• Simple Batch or Sequence Operations: Provides robust control for sequential processes in manufacturing, packaging, and assembly lines.

Why Choose This Model?

Choosing the Mitsubishi FX3S-14MR/ES brings a host of benefits, solidifying its position as a preferred compact PLC solution:

• Reliable Mitsubishi Quality: Benefit from Mitsubishi Electric's renowned reputation for producing high-quality, durable, and reliable industrial automation components.
• Effortless Integration: Designed for easy installation and straightforward configuration, reducing setup time and technical complexities.
• Scalable for Future Needs: Expandable I/O options ensure the system can adapt to evolving application requirements, safeguarding your investment.
• Optimized for Tight Spaces: Its exceptionally compact design is specifically engineered for control panels where space is a critical constraint.
• Globally Supported: Enjoy extensive support and availability within industrial environments worldwide, ensuring peace of mind and access to resources.

Order Now

Elevate your automation capabilities with the Mitsubishi FX3S-14MR/ES compact programmable logic controller. This powerful yet compact solution is readily available and ships worldwide, bringing Mitsubishi Electric's hallmark reliability directly to your projects. For applications demanding even higher performance and greater scalability, we invite you to explore the wider Mitsubishi FX3 Series PLC, which includes advanced models like the FX3U, FX3UC, FX3G, and additional FX3S variants. Discover comprehensive automation excellence by browsing the entire range of Mitsubishi MELSEC Programmable Controllers (PLC) – your gateway to innovative solutions for machine control, sophisticated motion applications, robust networking, and diverse industrial challenges.
