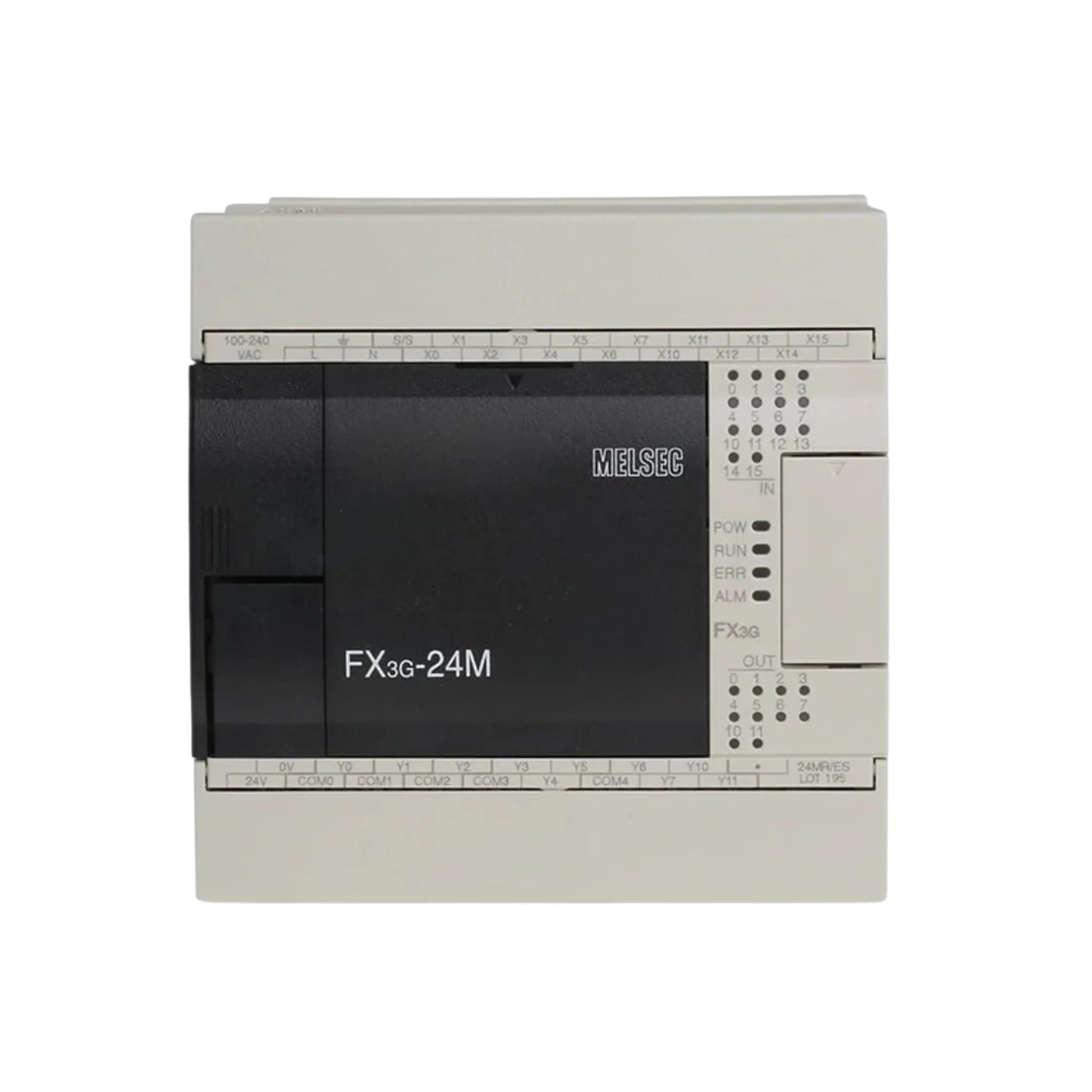

Mitsubishi FX3G-24MR/ES-A

Overview

The Mitsubishi FX3G-24MR/ES-A is a high-performance, compact Programmable Logic Controller (PLC) from the renowned FX3G series, meticulously engineered by Mitsubishi Electric. This robust main unit serves as an essential component for streamlined industrial automation, offering a powerful blend of functionality and reliability. Featuring 14 digital inputs and 10 relay outputs, it provides the necessary control for a vast array of machines and processes. Designed to operate efficiently with a 100–240 VAC power supply, the FX3G-24MR/ES-A is the ideal solution for both small and medium-sized automation systems, ensuring precise control and exceptional operational stability across various industrial applications. Its compact design belies its extensive capabilities, making it a valuable asset for optimizing efficiency and productivity.

Key Features

• Input/Output Configuration: Equipped with 14 digital inputs and 10 versatile relay outputs, enabling comprehensive control over connected devices and processes.
• Robust Power Supply: Operates reliably on a 100–240 VAC power supply, ensuring broad compatibility with industrial power infrastructures.
• Flexible Load Switching: Features relay outputs for adaptive and efficient switching of various loads, enhancing system versatility.
• Integrated High-Speed Counters: Incorporates advanced high-speed counters for precise timing and measurement, critical for dynamic industrial processes.
• Expandability: Offers extensive options for I/O and communication expansion, allowing the system to grow and adapt to evolving operational demands.
• Built-in Real-time Clock: Provides accurate timekeeping capabilities, essential for logging, scheduling, and time-sensitive operations.
• Programming Software Compatibility: Fully compatible with GX Works2 and GX Developer software, facilitating intuitive and efficient program development and maintenance.
• Versatile Mounting Options: Supports both DIN-rail and direct screw mounting, providing installation flexibility to suit various enclosure and panel designs.

Technical Specifications

• Part Number: FX3G-24MR/ES-A
• Manufacturer: Mitsubishi Electric
• Series: FX3G
• Input Points: 14 (24 VDC sink/source)
• Output Points: 10 (relay, 2 A max per point)
• Total I/O: 24
• Output Type: Relay contact
• Power Supply: 100–240 VAC, 50/60 Hz
• Program Memory: 32k steps
• Communication: Built-in RS-422, with provisions for optional expansion modules.
• Operating Temperature: 0 °C to +55 °C
• Mounting: DIN rail or direct panel mounting
• Certifications: CE, UL, cUL, RoHS compliant, ensuring global applicability and safety standards adherence.

Applications

The Mitsubishi FX3G-24MR/ES-A PLC is an exceptionally versatile control unit, making it suitable for a wide spectrum of industrial applications where precision, reliability, and compact design are paramount. Its robust feature set enables seamless integration into diverse operational environments, including:

• OEM Machinery: Provides core control for original equipment manufacturers, enhancing machine intelligence and operational efficiency.
• Conveyor Control Systems: Manages the intricate movements of conveyor belts, ensuring smooth and synchronized material handling processes.
• Packaging Machines: Automates critical packaging functions, improving speed, accuracy, and consistency in production lines.
• Building Automation: Integrates into building management systems for controlling HVAC, lighting, security, and access control.
• Compact Industrial Automation Panels: Ideal for space-constrained industrial panels, offering powerful control without occupying excessive physical space.

Why Choose This Model?

The Mitsubishi FX3G-24MR/ES-A stands out as a superior choice for various industrial automation needs due to several compelling reasons:

• Trusted Mitsubishi Performance: Benefits from Mitsubishi Electric's long-standing reputation for producing high-quality, durable, and reliable industrial automation components.
• Seamless Integration: Engineered for easy integration into existing and new automation systems, minimizing setup time and complexity.
• Expandable and Scalable: Designed with future growth in mind, allowing for easy expansion of I/O and communication capabilities to meet evolving application requirements.
• Versatility in Application: Capable of handling both straightforward and complex automation tasks with equal proficiency, making it a flexible solution for diverse challenges.
• Global Certifications: Holds essential global certifications, guaranteeing compliance with international safety and quality standards, and ensuring wide industry compatibility.
• Efficiency and Compactness: Delivers significant control capabilities within a compact form factor, optimizing space utilization in control panels and machinery.

Order Now

Elevate your industrial automation capabilities with the reliable and high-performance Mitsubishi FX3G-24MR/ES-A PLC main unit. This essential control solution is readily available to enhance your operational efficiency and precision. We offer worldwide shipping, ensuring that this critical component can reach your facility no matter your location.

For those seeking further advanced control solutions, we invite you to explore the comprehensive Mitsubishi FX3 Series PLC, which includes models such as FX3U, FX3UC, FX3G, and FX3S, each designed to meet specific high-performance compact controller requirements.

Discover the full spectrum of advanced Mitsubishi MELSEC Programmable Controllers (PLC). Our extensive range offers scalable automation solutions meticulously engineered for machine control, sophisticated motion control, robust networking, and various demanding industrial applications, empowering your operations with cutting-edge technology.
