Mitsubishi FX2N-8EX-ES/UL

Overview

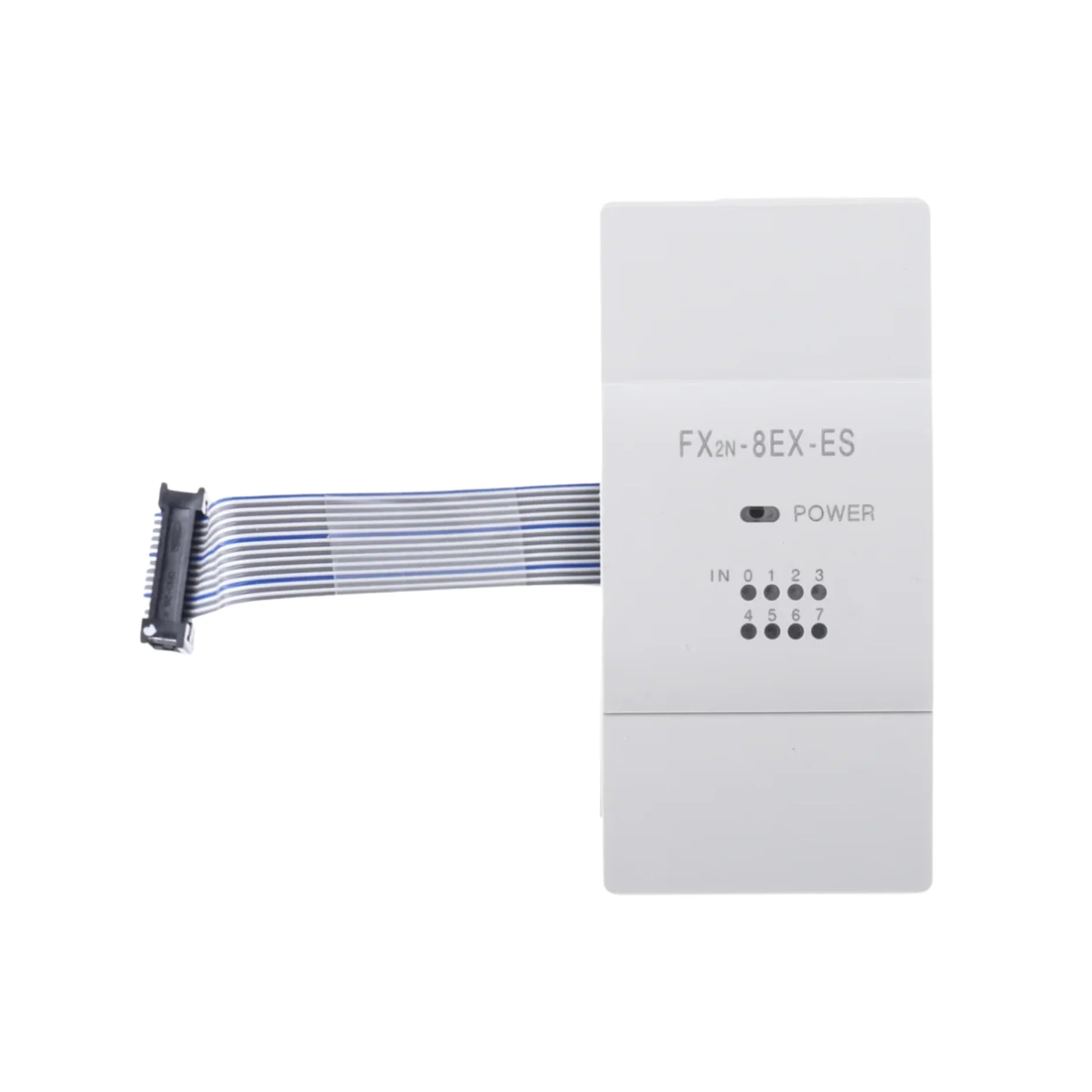

The Mitsubishi FX2N-8EX-ES/UL is a high-performance 8-point digital input expansion module meticulously engineered for seamless integration with the esteemed MELSEC-F FX2N Series programmable logic controllers (PLCs). This robust module operates efficiently on a 24V DC power supply and offers exceptional versatility by supporting both sink and source input types, making it an ideal solution for a diverse array of industrial automation applications. Its intelligently designed compact form factor ensures optimal space utilization, while its unwavering reliability and consistent performance position it as the premier choice for enhancing input capacity, especially in environments where space is at a premium. With the FX2N-8EX-ES/UL, you can effortlessly expand your PLC’s capabilities, guaranteeing efficient and precise control over your industrial processes.

Key Features

• Input Points: 8 digital inputs for expanded connectivity.
• Input Type: Sink/source selectable, offering flexible configuration options.
• Input Voltage: 24V DC ±10% for stable operation.
• Input Current: 5 mA at 24V DC, ensuring efficient power usage.
• Input Impedance: 4.3 kΩ for reliable signal integrity.
• ON-State Current: ≥3.5 mA, guaranteeing clear signal detection.
• OFF-State Current: ≤1.5 mA, preventing false triggering.
• Response Time: Approximately 10 ms for rapid signal processing.
• Isolation: Photocoupler insulation between input and system for enhanced safety and noise immunity.
• Indicators: Clear LED indicator for each input channel, allowing for easy status monitoring.
• Mounting: Versatile DIN rail or panel mount options for flexible installation.
• Connection Type: Secure screw terminals (M3) for straightforward wiring.

Technical Specifications

• Model: FX2N-8EX-ES/UL
• Series: MELSEC-F FX2N
• Power Supply: Supplied directly from the base unit, simplifying power management.
• Power Consumption: 5V DC, 25 mA, ensuring energy efficiency.
• Dimensions (W × H × D): 43 × 90 × 87 mm, for space-efficient integration.
• Weight: Approximately 0.2 kg, making it lightweight and easy to handle.
• Operating Temperature: 0°C to 55°C, suitable for a wide range of industrial environments.
• Storage Temperature: -25°C to 75°C, offering robust storage capabilities.
• Operating Humidity: 5% to 95% RH (non-condensing), ensuring reliable operation in various humidity levels.
• Certifications: CE, UL, cUL, UKCA, EAC, guaranteeing compliance with international safety and quality standards.
• Environmental Compliance: RoHS compliant, demonstrating a commitment to environmental responsibility.
• Compatibility: Compatible with FX1N, FX2N, FX3G, FX3U, FX1NC, FX2NC, FX3UC PLCs. Note: For connector-type PLCs (e.g., FX2NC, FX3UC), an interface such as FX2NC-CNV-IF or FX3UC-1PS-5V is required for connection.

Applications

The Mitsubishi FX2N-8EX-ES/UL is an essential component for optimizing and expanding industrial control systems across various sectors:

• Expanding Digital Input Capacity: Crucial for augmenting the input capabilities of existing PLC systems, enabling them to interface with a greater number of sensors and devices.
• Integration with Sensors and Switches: Perfect for connecting a wide array of sensors, limit switches, proximity sensors, and other input devices to a central PLC for comprehensive process monitoring and control.
• Industrial Automation Projects: An indispensable module for any industrial automation scenario requiring additional input points to manage complex processes, robotics, or machinery.
• OEM Equipment Integration: Ideal for original equipment manufacturers (OEMs) looking to integrate a reliable and compact digital input solution into their proprietary machinery and systems.
• Process Control: Enhances precision and responsiveness in process control applications by providing more data points for real-time adjustments and decision-making.

Why Choose This Model?

• Compact Design: Its remarkably small footprint makes it an excellent choice for control cabinets and installations where space optimization is a critical factor, without compromising performance.
• Flexible Input Configuration: The ability to select between sink and source input types provides unparalleled flexibility, allowing seamless integration with a broad spectrum of external devices and sensor technologies.
• Reliable Performance: Backed by Mitsubishi Electric's renowned reputation for quality and engineering excellence, this module guarantees consistent, stable, and highly reliable operation even in demanding industrial environments.
• Easy Integration: Designed for effortless connectivity, the FX2N-8EX-ES/UL seamlessly integrates with various MELSEC-F series PLCs, minimizing installation time and complexity.
• Compliance and Certifications: Adhering to significant international standards such as CE, UL, cUL, UKCA, and EAC, this module ensures both safety and environmental regulatory compliance, providing peace of mind for global deployments.
• Enhanced Productivity: By expanding your system's input capabilities, this module contributes directly to increased operational efficiency and improved control over complex automation tasks.

Order Now

Elevate your industrial automation system with the advanced capabilities of the Mitsubishi FX2N-8EX-ES/UL 8-Point Digital Input Expansion Module. This highly sought-after module is readily available and poised for global shipping, ensuring that your operational enhancements are within reach, wherever you are. To explore further options within this esteemed product family, we invite you to return to the Mitsubishi FX2N / FX2NC Series PLC range. Additionally, broaden your horizons and discover a comprehensive suite of cutting-edge solutions by exploring the complete range of Mitsubishi MELSEC Programmable Controllers (PLC), each meticulously designed to deliver unparalleled reliability, exceptional flexibility, and scalable performance to meet the evolving demands of modern industrial control.
