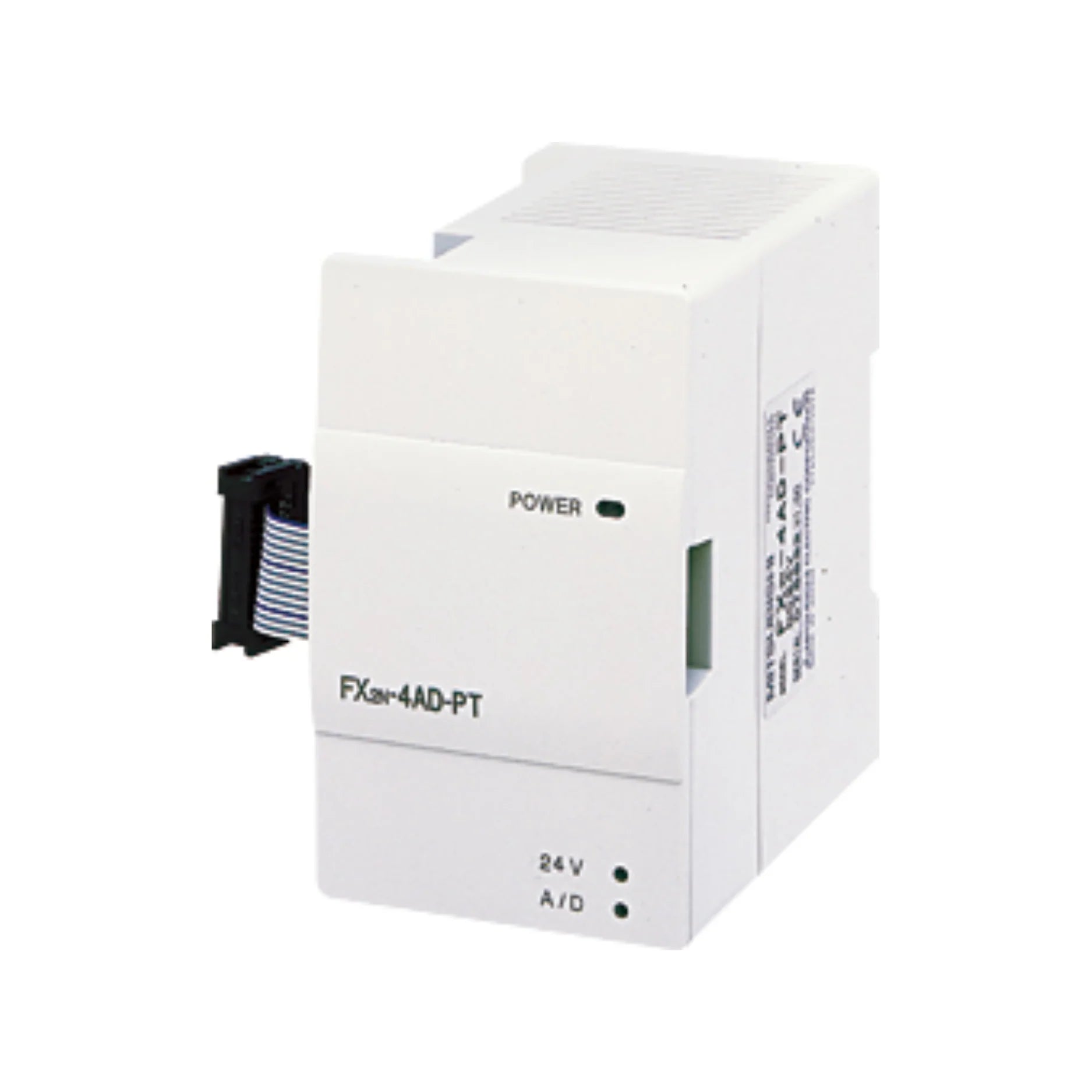

Mitsubishi FX2N-4AD-PT

Overview

Elevate your industrial automation with the Mitsubishi FX2N-4AD-PT, a cutting-edge 4-channel analog temperature input module designed for seamless integration with FX2N Series PLCs. This robust module is engineered to accept direct connections from PT100 RTD sensors, providing unparalleled accuracy and stability for critical temperature monitoring applications. It is the ideal solution for environments demanding precise control and real-time data from process and environmental systems.

The FX2N-4AD-PT eliminates the need for external signal converters, simplifying your system architecture and reducing installation complexity. Its high-resolution capabilities ensure that even the slightest temperature fluctuations are captured, empowering you with reliable data for informed decision-making and optimized operational efficiency. Built with Mitsubishi Electric's renowned commitment to quality, this module delivers consistent performance in challenging industrial settings.

Key Features

• 4 Independent Temperature Input Channels: Monitor multiple points simultaneously with dedicated input channels.
• Direct PT100 RTD Sensor Support: Compatible with both 2-wire and 3-wire PT100 platinum resistance thermometers, streamlining sensor integration.
• Wide Temperature Measurement Range: Accurately measures temperatures from an extensive range of -200°C to +600°C, suitable for diverse applications.
• High Resolution: Achieves a precise resolution of 0.1°C per step, ensuring granular temperature data for critical processes.
• Photocoupler Isolation: Each channel is photocoupler isolated, providing enhanced noise immunity and protection for your control system.
• Simplified Wiring: Direct sensor connection capability eliminates the need for separate signal conditioners, reducing wiring complexity and potential failure points.
• Seamless FX2N PLC Integration: Specifically designed for effortless compatibility with Mitsubishi Electric FX2N Series PLCs.

Technical Specifications

• Model: FX2N-4AD-PT
• Series: FX2N
• Supported Sensors: PT100 (2-wire and 3-wire supported)
• Number of Input Channels: 4
• Temperature Range: -200°C to +600°C
• Resolution: 0.1°C per step
• Isolation: Photocoupler isolated per channel
• Conversion Time: Approximately 400 ms (for all 4 channels)
• Mounting: Versatile DIN rail or panel mount options for flexible installation.
• Power Supply: Operates efficiently with 24V DC supplied directly from the base unit.
• Operating Temperature: Designed to perform reliably in environments ranging from 0°C to 55°C.
• Weight: Lightweight design at approximately 0.2 kg (0.44 lbs).
• Certifications: CE compliant, ensuring adherence to European safety, health, and environmental protection requirements.

Applications

The Mitsubishi FX2N-4AD-PT is a versatile module perfectly suited for a multitude of industrial temperature-critical applications, including:

• Industrial Temperature Monitoring: Essential for continuous oversight of processes and equipment in manufacturing and heavy industries.
• Food and Beverage Equipment: Maintaining precise temperature control for hygiene, quality, and safety standards in production and storage.
• Chemical Processing Plants: Critical for reaction control, safety management, and efficient process operation where accurate temperature is paramount.
• HVAC Systems: Optimizing heating, ventilation, and air conditioning performance in commercial and industrial buildings.
• Temperature Control Loops: Implementing closed-loop control systems for maintaining stable temperatures in various processes.
• Environmental Monitoring: Ideal for tracking environmental conditions in laboratories, cleanrooms, and storage facilities.

Why Choose This Model?

The Mitsubishi FX2N-4AD-PT stands out as a superior choice for your temperature sensing needs due to several compelling advantages:

• Unmatched Simplicity: Its direct PT100 support dramatically simplifies wiring, reduces installation time, and minimizes potential points of failure by eliminating external converters.
• Exceptional Reliability: Benefit from Mitsubishi Electric's legacy of industrial-grade durability and precise temperature sensing, offering high accuracy and resolution for critical operations.
• Seamless Integration: Engineered for perfect compatibility with FX2N PLCs, ensuring quick and straightforward setup within your existing Mitsubishi Electric automation infrastructure.
• Robust Industrial Design: Built to withstand the rigors of demanding industrial environments, guaranteeing long-term performance and reduced downtime.
• Optimized Performance: Provides stable and accurate temperature data, enabling more precise control and improved efficiency across your processes.

Order Now

Enhance your industrial control system today with the Mitsubishi FX2N-4AD-PT 4-Channel Analog Temperature Input Module. This essential component is currently in stock and ready for fast worldwide shipping, ensuring you can quickly upgrade your operations. Explore the full range of Mitsubishi FX2N / FX2NC Series PLCs for complementary solutions, and delve into our comprehensive selection of Mitsubishi MELSEC Programmable Controllers (PLC) to discover advanced automation technologies designed for unparalleled reliability, flexibility, and scalability.
