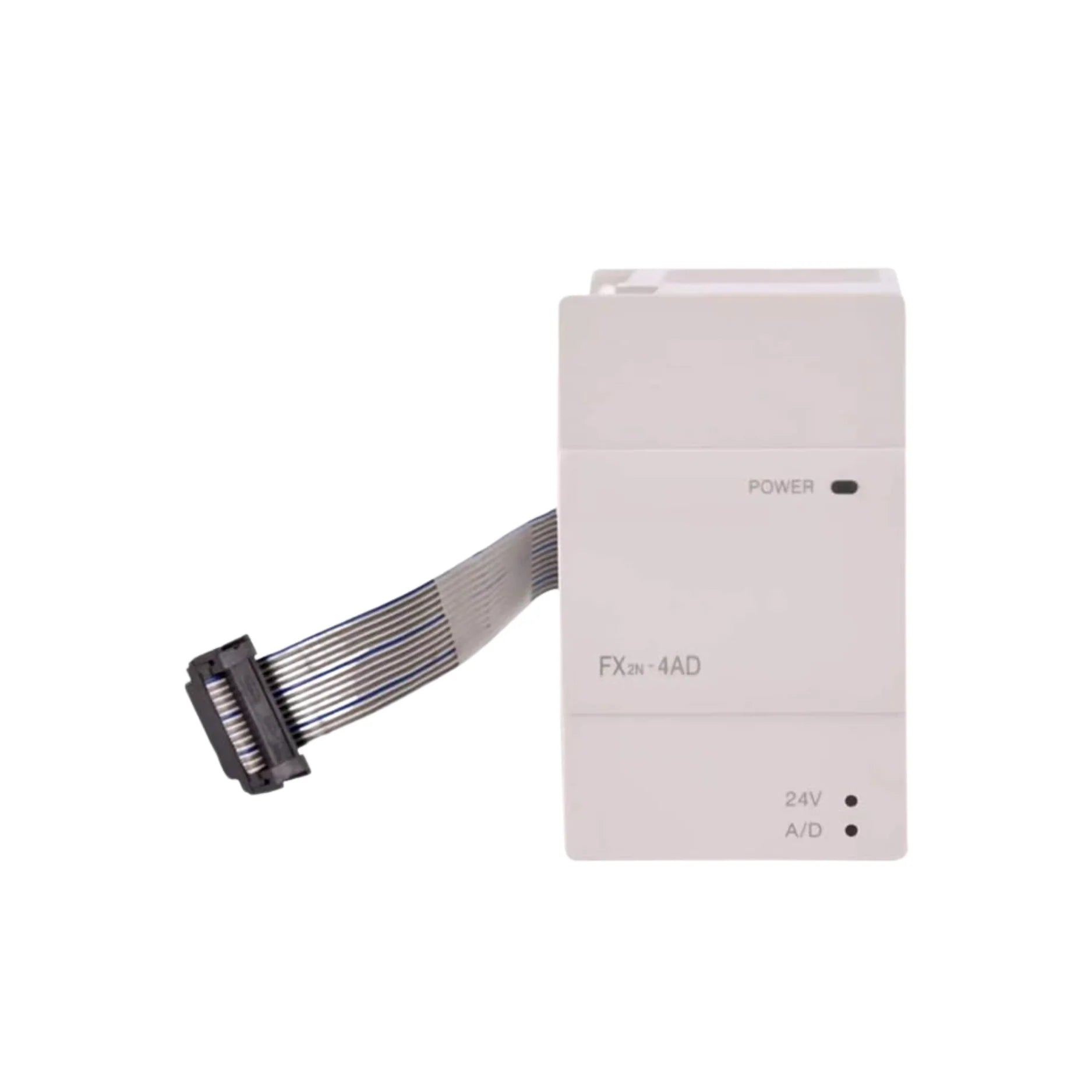

Mitsubishi FX2N-4AD analog input module, 4-channel, 0–10V & 4–20mA input, 12-bit resolution, for FX2N PLCs.

Mitsubishi FX2N-4AD

$213.00
$213.00
Skip to product information
Mitsubishi FX2N-4AD analog input module, 4-channel, 0–10V & 4–20mA input, 12-bit resolution, for FX2N PLCs.
  • Mitsubishi FX2N-4AD analog input module, 4-channel, 0–10V & 4–20mA input, 12-bit resolution, for FX2N PLCs.
  • Mitsubishi FX2N-4AD analog input module, 4-channel, 0–10V & 4–20mA input, 12-bit resolution, for FX2N PLCs.
Mitsubishi FX2N-4AD

Mitsubishi FX2N-4AD

$213.00
$213.00

Overview

Elevate your industrial automation with the Mitsubishi FX2N-4AD 4-Channel Analog Input Module, meticulously engineered for seamless integration with FX2N Series PLCs. This module is your gateway to precise and reliable data acquisition, offering a robust solution for a myriad of analog sensing applications. With its impressive 12-bit resolution, the FX2N-4AD ensures highly accurate conversion of analog signals into digital data, providing your control systems with the fidelity they demand. Its versatile input capabilities accommodate both 0–10V DC voltage and 4–20mA DC current signals, making it an indispensable component for monitoring a diverse range of industrial sensors and devices. Designed for efficiency and performance, this module empowers your FX2N PLC systems to achieve unparalleled levels of control and monitoring sophistication.

Key Features

  • Four Analog Inputs: Provides robust connectivity for up to four distinct analog sensor inputs, expanding your system's monitoring capabilities.
  • Dual Input Signal Support: Flexibly handles both 0–10V DC voltage and 4–20mA DC current signals, catering to a wide array of industrial instrumentation.
  • High-Resolution Conversion: Boasts a 12-bit analog-to-digital conversion resolution, ensuring exceptional accuracy and detail in data acquisition.
  • User-Selectable Input Modes: Each channel allows for independent selection between voltage or current input, optimizing adaptability for various sensor types.
  • Secure Screw Terminals: Guarantees reliable and straightforward wiring connections, enhancing system stability and ease of installation.
  • Clear Status Indicators: Integrated LED indicators provide immediate visual feedback on the operational status of each channel, simplifying diagnostics.
  • Compact DIN Rail Mounting: Facilitates quick and easy installation into standard control panels, maximizing space efficiency and system organization.

Technical Specifications

  • Model: FX2N-4AD
  • Series Compatibility: Exclusively designed for the Mitsubishi FX2N Series PLCs.
  • Input Voltage Range: 0–10V DC, with an input impedance of 200kΩ for precise voltage measurement.
  • Input Current Range: 4–20mA DC, featuring an input impedance of 250Ω for accurate current sensing.
  • Conversion Speed: Rapid analog-to-digital conversion at approximately 2 ms per channel, ensuring near real-time data processing.
  • Operating Temperature: Engineered to perform reliably in industrial environments, with an operating range of 0°C to 55°C.
  • Weight: Lightweight design at approximately 0.2 kg (0.44 lbs), contributing to overall system portability.
  • Certifications: Conforms to international safety and quality standards, including CE and UL certifications.
  • Power Supply: Efficiently powered directly via the base unit of the FX2N PLC system, simplifying power distribution.

Applications

The Mitsubishi FX2N-4AD is a highly versatile module, ideally suited for a broad spectrum of industrial applications requiring precise analog input monitoring:

  • Temperature Sensor Input: Accurately monitor and control temperatures in ovens, furnaces, HVAC systems, and environmental chambers.
  • Flow Meter Data Logging: Precisely record and analyze fluid or gas flow rates in pipelines, manufacturing processes, and utility management.
  • Pressure and Level Measurement: Enable accurate monitoring of pressure in vessels and pipes, and liquid levels in tanks and reservoirs for process control.
  • Analog Process Monitoring: Provide essential data for a wide range of continuous industrial processes, from chemical reactions to material handling.
  • Environmental Control Systems: Integrate seamlessly into climate control, ventilation, and air quality monitoring systems for optimal environmental management.

Why Choose This Model?

The Mitsubishi FX2N-4AD stands out as a superior choice for your industrial automation needs due to several compelling advantages:

  • Accurate Signal Capture: Its high-resolution 12-bit analog-to-digital conversion guarantees exceptional precision, ensuring your control systems operate with the most accurate data possible.
  • Versatile Input Management: The ability to accept both voltage (0–10V DC) and current (4–20mA DC) signals offers unparalleled flexibility, integrating effortlessly with diverse sensor technologies.
  • Robust and Space-Efficient Design: Built for the rigors of industrial environments, its reliable and compact construction is perfect for installations where space is a premium, without compromising performance.
  • Flawless FX2N Integration: As a genuine Mitsubishi Electric component, it offers perfect compatibility and seamless integration with your existing FX2N PLC platforms, ensuring hassle-free setup and operation.

Order Now

Elevate your industrial control capabilities today with the highly efficient and reliable Mitsubishi FX2N-4AD 4-Channel Analog Input Module. This essential component is currently in stock and ready for immediate shipment to enhance your FX2N PLC systems. Dont miss the opportunity to optimize your data acquisition and process monitoring with this advanced module. For an expanded selection of compatible solutions, immerse yourself in our comprehensive range of Mitsubishi FX2N / FX2NC Series PLCs. Furthermore, explore the entirety of our Mitsubishi MELSEC Programmable Controllers (PLC) collection to discover innovative automation solutions crafted for unparalleled reliability, adaptability, and future-proof scalability.
