Mitsubishi FX2N-10GM

Overview

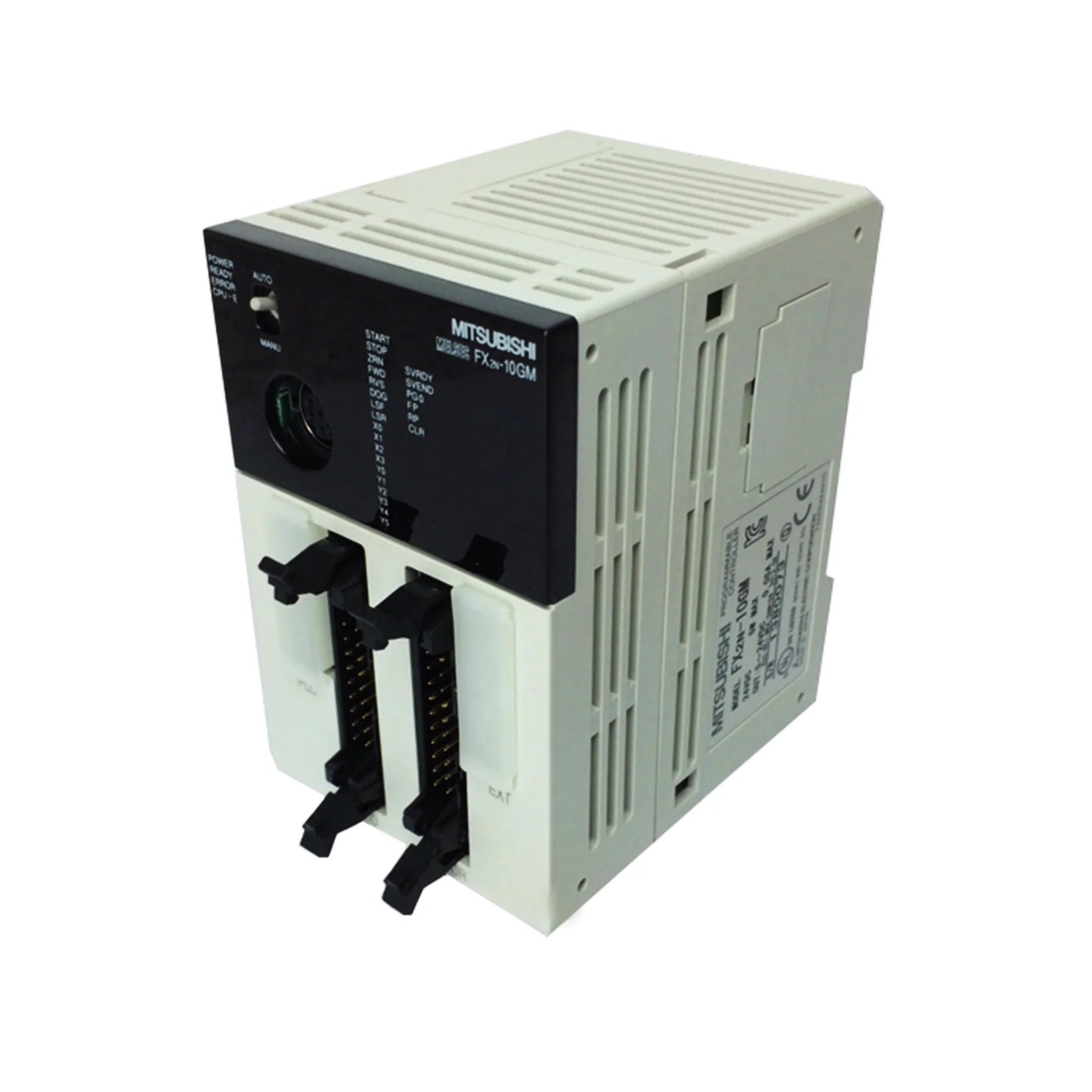

Elevate your automation capabilities with the Mitsubishi FX2N-10GM, a high-performance step/servo pulse output module meticulously engineered for seamless integration with the renowned FX2N PLC series. This sophisticated module provides 10 dedicated channels for generating precise step and direction signals, offering unparalleled control over demanding motion applications. Operating efficiently on 24 V DC, the FX2N-10GM delivers high-speed pulse train output, making it the definitive choice for coordinating complex motion control tasks across a multitude of industrial automation systems. Its robust design and advanced features ensure reliable and accurate performance, empowering you to achieve superior operational efficiency and precision in your machinery.

Key Features

• Module Type: Step/servo pulse (GM type)
• Number of Channels: 10 high-speed pulse train channels
• Rated Voltage: 24 V DC input for consistent power delivery
• Output Format: Individual Step + Direction signal per channel for versatile control
• High-Speed Capability: Engineered to support synchronized multi-axis control, enhancing system responsiveness
• Terminal Type: Secure screw terminals ensure reliable and stable wiring connections
• LED Indicators: Integrated channel status and diagnostic LEDs for easy monitoring and troubleshooting
• Mounting: Designed for effortless installation on FX2N base units or racks, ensuring perfect compatibility

Technical Specifications

• Model Number: FX2N-10GM
• Channel Count: 10 (pulse train outputs)
• Input Voltage: 24 V DC
• Max Pulse Frequency: Up to 100 kHz (configuration dependent, for optimal performance)
• Response Time: Exceptionally fast, suitable for critical high-speed motion control applications
• Insulation Resistance: ≥ 10 MΩ, ensuring electrical safety and reliability
• Ambient Temperature: 0 °C to 55 °C, for dependable operation in various industrial environments
• Storage Temperature: –25 °C to 75 °C, maintaining integrity during storage and transport
• Dimensions: Approx. 90 × 90 × 70 mm (Height x Width x Depth)
• Weight: Approximately 0.3 kg
• Certifications: CE, UL compliant, affirming international quality and safety standards

Applications

The Mitsubishi FX2N-10GM is an indispensable component for a broad spectrum of advanced automation applications, including but not limited to:

• Multi-axis servo or stepper motor control requiring high precision and synchronization
• CNC machine pulse generation for intricate machining operations
• Precision indexing and positioning systems in automated assembly
• Packaging and labeling equipment demanding accurate material handling
• Robotics and automated assembly lines where complex motion sequences are critical

Why Choose This Model?

The Mitsubishi FX2N-10GM stands out as an outstanding solution for your motion control needs due to its compelling advantages:

• High Channel Density: With 10 pulse outputs consolidated within a single compact module, it optimizes panel space and simplifies system design.
• High-Speed Operation: Engineered for peak performance, it is ideally suited for synchronized motion systems, ensuring smooth and rapid execution of tasks.
• Seamless Integration: Specifically designed for perfect compatibility with FX2N PLC racks, it guarantees trouble-free setup and operation.
• Diagnostic Feedback: Built-in LED indicators provide immediate channel status and diagnostic information, greatly simplifying setup and troubleshooting efforts.
• Reliable Mitsubishi Design: Benefit from Mitsubishi Electric's legacy of industrial-grade performance, robust construction, and unwavering compatibility with existing systems.

Order Now

Unlock the full potential of your automation systems with the Mitsubishi FX2N-10GM step/servo pulse output module. This high-performing component is readily available and ships worldwide, bringing Mitsubishi Electric's renowned precision and reliability directly to your operations. For further exploration of advanced options within this product family, we invite you to return to the Mitsubishi FX2N / FX2NC Series PLC. Additionally, discover comprehensive automation solutions designed for unparalleled reliability, flexibility, and scalability by exploring our complete range of Mitsubishi MELSEC Programmable Controllers (PLC).
