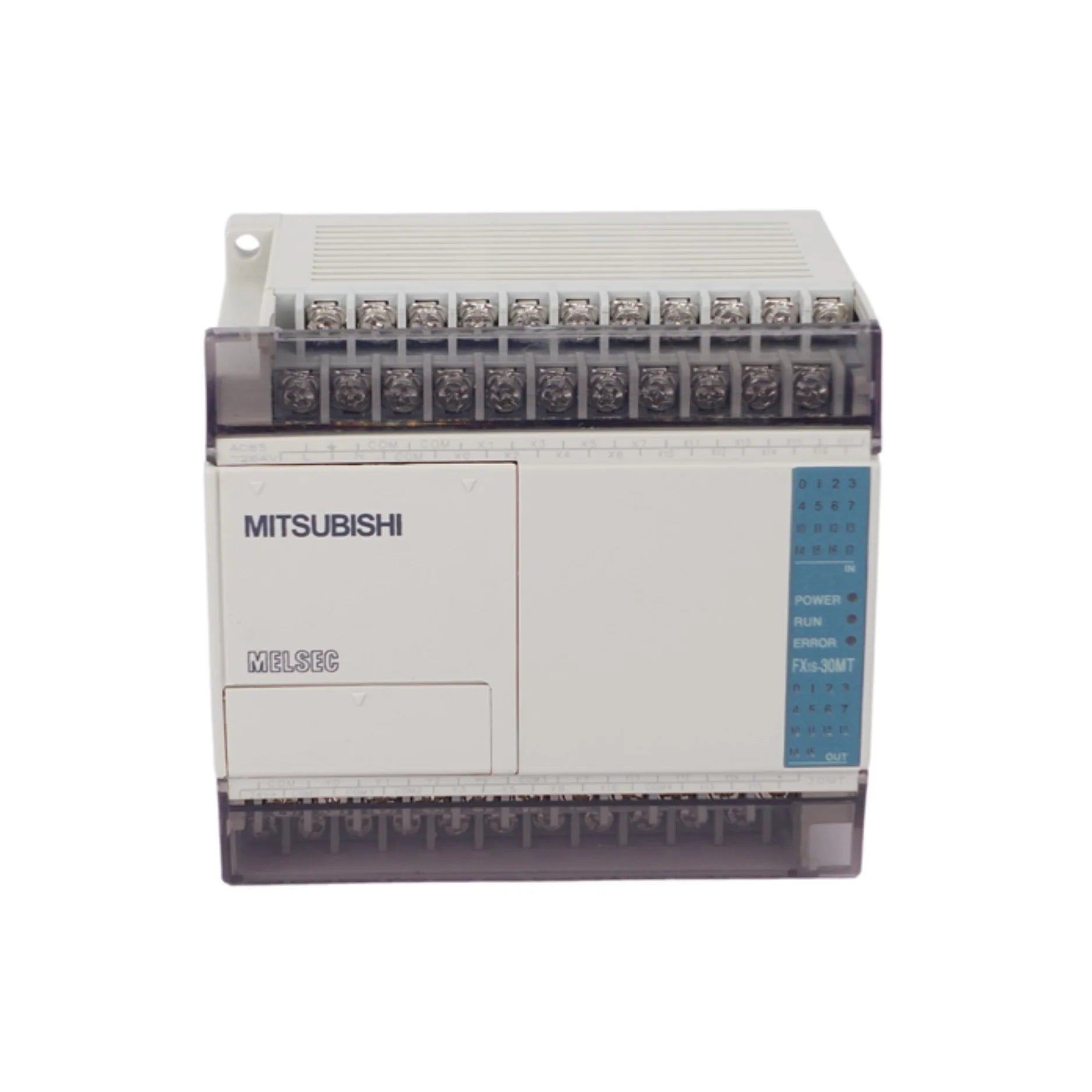

Mitsubishi FX1S-30MT-001

Overview

The Mitsubishi FX1S-30MT-001 is a high-performance, compact Programmable Logic Controller (PLC) main unit meticulously engineered for entry-level automation demands. Part of the renowned FX1S series, this PLC offers a robust solution for small machine control and basic industrial automation tasks, delivering exceptional reliability and ease of integration. With 30 integrated I/O points, including 16 digital inputs and 14 transistor outputs, it provides versatile control capabilities for a wide array of applications. Its 24 V DC power supply ensures compatibility with standard industrial setups, making it a cost-effective and efficient choice for optimizing operational efficiency in space-constrained environments.

Key Features

• Total I/O: 30 points (16 inputs, 14 transistor outputs) for comprehensive control.
• Output Type: Reliable Transistor output for quick and efficient switching.
• Power Supply: 24 V DC ±10% ensures broad compatibility and stable operation.
• Compact Design: Optimized footprint ideal for installations where space is a premium.
• Integrated Functionality: Built-in high-speed counters and timers enhance control precision.
• Safety Diagnostics: Features integrated safety diagnostics for secure operation.
• Programming: Fully compatible with intuitive GX Developer programming software.
• Cost-Effective: An economical yet powerful solution for simple to moderately complex control tasks.

Technical Specifications

• Catalog Number: FX1S-30MT-001
• Inputs: 16 digital (configurable as sink/source)
• Outputs: 14 transistor (each capable of 0.5 A maximum)
• Input Voltage: 24 V DC ±10%
• Program Memory: 2,000 steps, sufficient for a variety of small-scale applications.
• Power Consumption: Approximately 12 W, ensuring energy efficiency.
• Mounting Options: Versatile DIN rail or direct panel mounting.
• Dimensions (W×H×D): 150 × 90 × 86 mm, maintaining its compact profile.
• Protection Class: IP10 (open type), suitable for protected environments.
• Operating Temperature: 0 °C to +55 °C, ensuring robust performance in industrial settings.
• Certifications: CE, UL, cUL, RoHS compliant, guaranteeing international standards and safety.

Applications

The Mitsubishi FX1S-30MT-001 is engineered for versatility, making it an excellent choice across numerous industrial applications:

• Compact Machine Automation: Ideal for controlling smaller machines and single-function equipment.
• Conveyor and Sensor Systems: Perfect for managing and integrating conveyor lines and various sensor inputs.
• Small OEM Equipment Panels: Provides critical control within limited space, common in Original Equipment Manufacturer setups.
• Basic Logic and Sequencing: Excels in tasks requiring straightforward logical operations and sequential control.
• Entry-Level Industrial Control: A reliable foundation for introducing automation into less complex industrial processes.

Why Choose This Model?

Choosing the Mitsubishi FX1S-30MT-001 means investing in a solution that marries affordability with Mitsubishi Electric's renowned quality and reliability. This model stands out due to its compact form factor, making it an excellent choice for applications with limited enclosure space, without compromising on performance. Its ease of installation and programming significantly reduces setup time and complexity, making it accessible even for those new to PLCs. Moreover, its transistor output switching capability is particularly beneficial for tasks requiring rapid and precise control of output devices, making it perfectly suited for expanding small automation systems effectively and efficiently. This PLC guarantees stable and consistent operation, contributing to enhanced productivity and reduced downtime in your automation processes.
