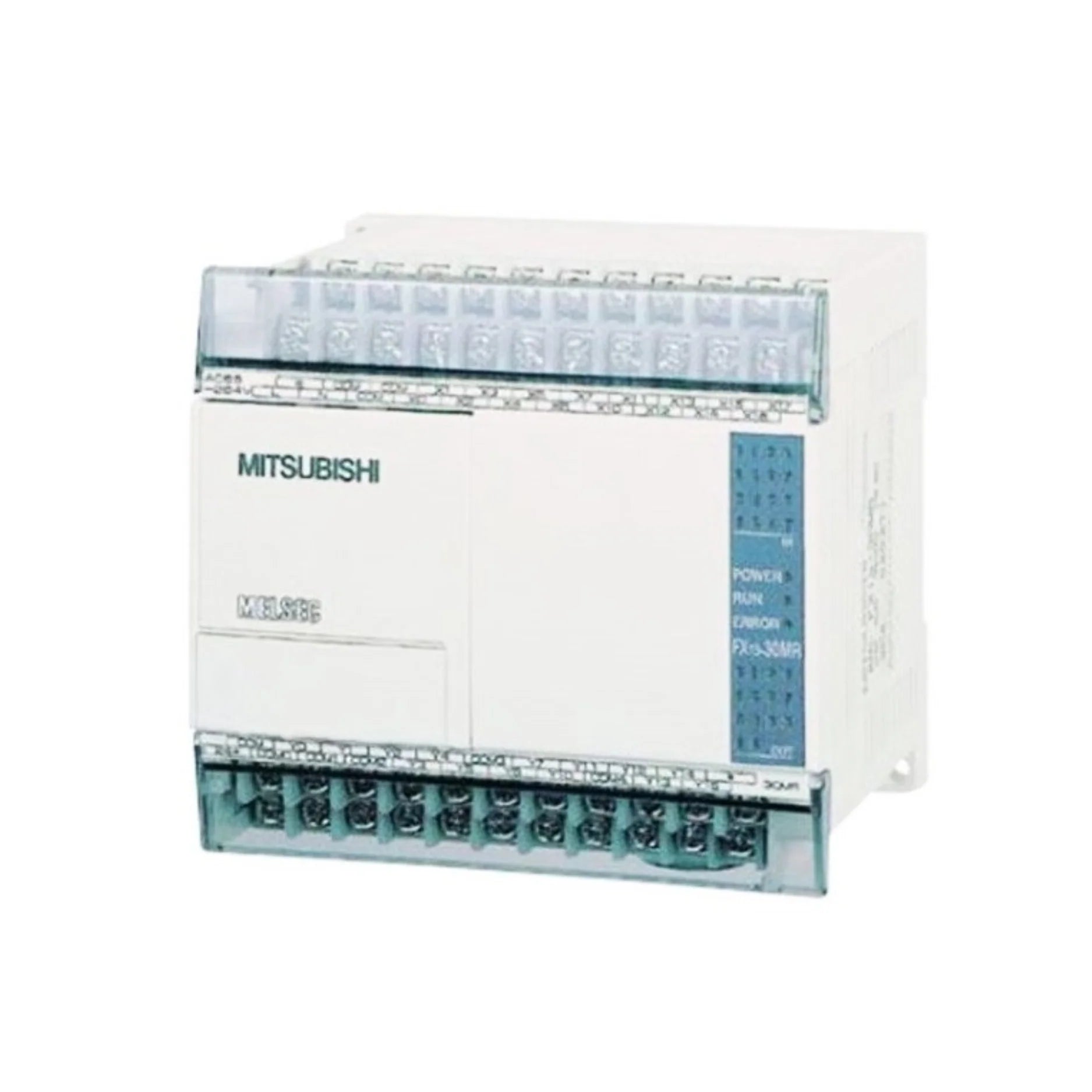

Mitsubishi FX1S-30MR-001

Overview

The Mitsubishi FX1S-30MR-001 is a high-performance, compact Programmable Logic Controller (PLC) engineered to provide robust and reliable control for a wide array of small-scale automation tasks. As a distinguished member of the acclaimed Mitsubishi Electric FX1S Series, this unit is meticulously designed for applications where space is at a premium but uncompromising functionality is essential. Featuring a thoughtful configuration of 30 total I/O points, precisely balanced with 16 digital inputs and 14 relay outputs, it offers ample connectivity for foundational control systems. Operating seamlessly on a versatile 100–240V AC power supply, the FX1S-30MR-001 integrates effortlessly into diverse industrial and commercial environments, making it an ideal choice for streamlining operations in compact machinery and localized automation setups. Its proven design ensures consistent performance, reflecting Mitsubishi Electric's commitment to quality and innovation in industrial automation.

Key Features

• Series: FX1S – Part of Mitsubishi Electric's trusted and compact FX1S family, known for reliability.
• Power Supply: 100–240V AC – Universal voltage input for broad compatibility and flexible installation.
• Total I/O Points: 30 (16 Digital Inputs, 14 Relay Outputs) – Provides comprehensive control capabilities for various applications.
• Output Type: Relay (NO contacts) – Ensures robust switching for a variety of actuators and loads.
• Integrated Functions: Built-in Timer, Counter, Arithmetic, and Comparison Functions – Essential tools for efficient program execution and logical control.
• Program Capacity: 2,000 Steps – Generous memory for complex sequences and operational logic in a compact unit.
• Memory Backup: Built-in EEPROM – Guarantees data retention and program security without relying on batteries.
• Mounting: Convenient DIN Rail or Panel Mount Options – Offers versatile installation choices to suit different enclosure designs.
• Ease of Use: Simplified Programming – Designed for intuitive programming, accelerating development and deployment for small-scale automation projects.

Technical Specifications

• Model Number: FX1S-30MR-001
• Digital Inputs: 16 (24V DC sink/source) – Compatible with a wide range of industrial sensors and input devices.
• Digital Outputs: 14 (relay contact) – Provides reliable switching for various loads.
• Relay Contact Rating: 2A/point, 8A/common – High current capacity for robust output control.
• Input Frequency: 50/60 Hz – Adapts to standard power frequencies globally.
• Program Memory: 2k steps – Sufficient memory for advanced control logic.
• Data Registers: 256 – Ample registers for storing and manipulating operational data.
• Clock Function: Not included – Focuses on core control functionalities to maintain a compact design.
• Ambient Operating Temperature: 0°C to 55°C – Ensures reliable operation in typical industrial environments.
• Protection Class: IP10 (when mounted in enclosure) – Provides basic protection against solid objects when properly installed.
• Dimensions: Approx. 150 x 90 x 86 mm – Ultra-compact footprint for space-constrained installations.
• Weight: ≈ 0.65 kg – Lightweight design simplifies handling and mounting.
• Certifications: CE, UL, RoHS – Complies with major international safety and environmental standards, ensuring global market acceptance.

Applications

• Small Machine Automation: Ideal for controlling packaging machines, textile machinery, and other compact equipment.
• Conveyors and Packaging Lines: Facilitates efficient product movement and intricate packaging processes.
• Lighting and HVAC Control: Provides intelligent control for building automation systems.
• Pump and Fan Management: Optimizes operation of fluid and air handling systems.
• Educational and Training Panels: Excellent for teaching fundamental PLC programming and automation concepts due to its simplicity and robust features.

Why Choose This Model?

• Reliable Performance: Benefit from the industry-leading quality and proven durability that Mitsubishi Electric is renowned for, ensuring consistent operation in demanding small-system applications.
• Easy Integration: Designed for seamless ‘plug-and-play’ functionality, the FX1S-30MR-001 minimizes setup time and complexity, allowing for rapid deployment into existing or new control architectures.
• Compact Size: Its remarkably small footprint makes it an optimal solution for installations where cabinet space is severely restricted, without compromising on functionality.
• Cost-Effective Automation: Offers an economical yet powerful solution for basic to intermediate automation requirements, providing outstanding value without sacrificing performance.
• Global Standards Compliance: Adheres to crucial international standards, including CE and UL regulations, guaranteeing compatibility and acceptance across diverse global markets.

Order Now

The Mitsubishi FX1S-30MR-001 PLC is readily available for immediate acquisition and is eligible for worldwide shipping, ensuring that your automation needs are met no matter your location. To explore a broader spectrum of advanced automation solutions and delve into more comprehensive technical specifications, we invite you to browse our extensive range of Mitsubishi FX1N Series PLC. These models are expertly engineered to deliver even greater flexibility and enhanced control capabilities for more complex industrial environments. For all your programmable controller requirements, return to our primary category of Mitsubishi MELSEC Programmable Controllers (PLC) to discover the perfect solution for your operational demands.
