Mitsubishi FX1S‑20MR‑ES/UL

Overview

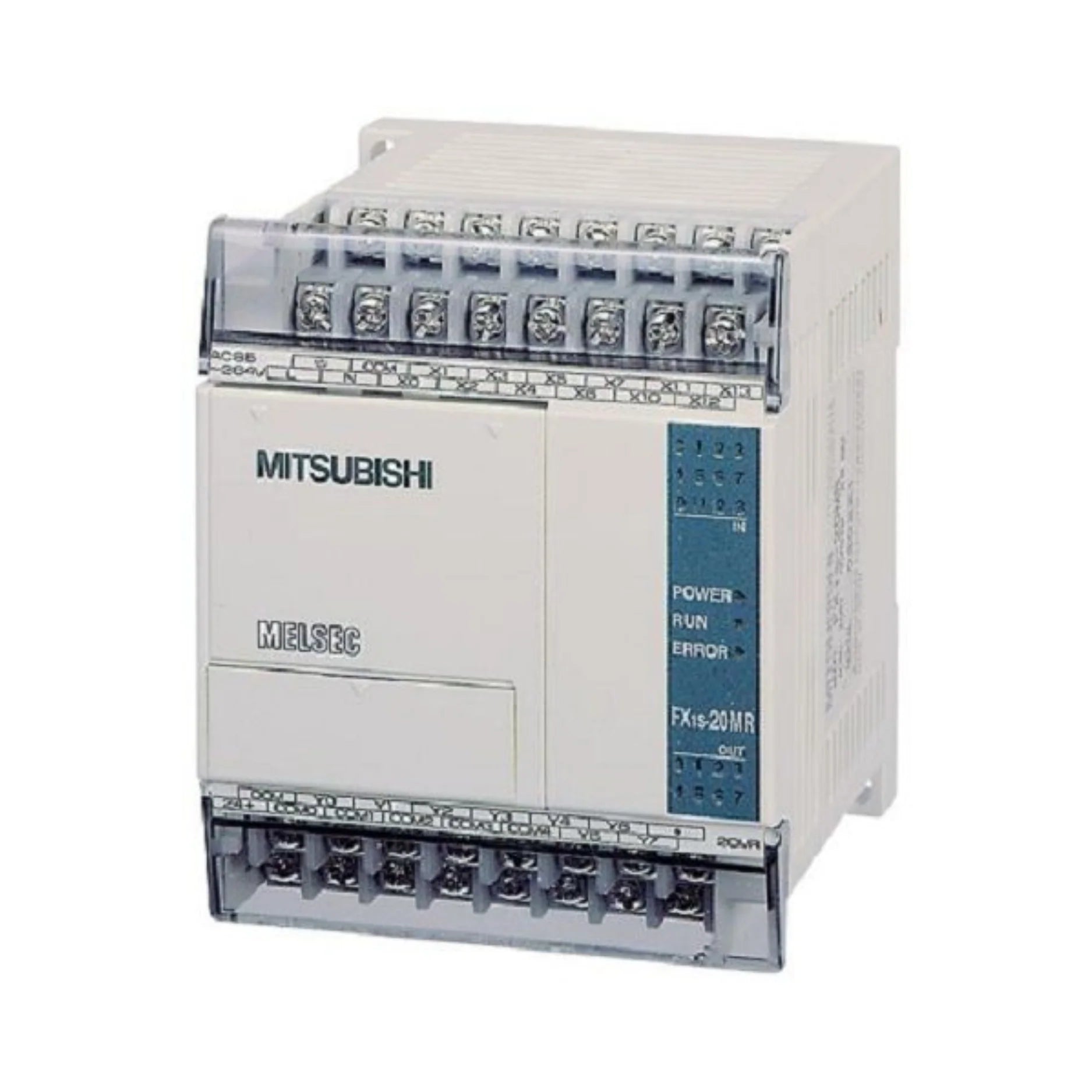

The Mitsubishi FX1S-20MR-ES/UL is a robust and compact Programmable Logic Controller (PLC) from the renowned Mitsubishi Electric FX1S series, engineered for reliable performance in diverse industrial automation environments. This specific model provides 20 versatile I/O points, comprising 12 digital inputs and 8 relay outputs, offering ample connectivity for a variety of control applications. Its exceptional voltage flexibility, capable of operating within a broad range of 24–240 V AC/DC, ensures seamless integration into nearly any electrical setup worldwide. Furthermore, its UL listing certifies its compliance with rigorous North American safety standards, making it an ideal choice for regulated industrial installations. The FX1S-20MR-ES/UL is designed for space-saving efficiency, making it perfect for machine control, sophisticated lighting systems, and precise signal switching tasks.

As a cornerstone of the Mitsubishi Electric automation lineup, the FX1S-20MR-ES/UL embodies the brand's commitment to quality, durability, and technological innovation. Its compact form factor contradicts its powerful capabilities, allowing for complex automation solutions in confined spaces without sacrificing performance or reliability. This PLC is an excellent solution for system integrators, OEMs, and industrial users seeking a dependable and certified control unit for critical operations.

Key Features

• Series: FX1S
• Power Supply: Wide range 24–240 V AC/DC
• Total I/O Points: 20 (12 digital inputs / 8 relay outputs)
• Output Type: Durable Relay outputs (SPDT contacts)
• UL-Certified: Approved for North American industrial installations, ensuring safety and compliance.
• Built-In Functions: Comprehensive suite including timers, counters, logic, and arithmetic operations for versatile control.
• Program Capacity: Generous 2,000 steps, allowing for complex programming.
• Memory Backup: Non-volatile EEPROM ensures program retention even during power loss.
• LED Status Indicators: Clear visual feedback for inputs, outputs, and CPU status, facilitating quick diagnostics.
• Mounting: Flexible DIN rail or panel mount options for easy installation.

Technical Specifications

• Catalog Number: FX1S-20MR-ES/UL
• Digital Inputs: 12 (configurable as sink/source, supporting 24–240 V AC/DC)
• Digital Outputs: 8 relay outputs (rated at 2 A per point, with an 8 A common rating)
• Input Voltage Range: 24–240 V AC/DC ±10%
• Processing Speed: Rapid approximate 0.5 μs per instruction for efficient operation.
• Program Memory: 2,000 steps
• Ambient Temperature: Operational range from 0 °C to 55 °C
• Protection Rating: IP10 (when installed within an appropriate enclosure)
• Dimensions: Approximately 90 mm × 90 mm × 73 mm
• Weight: Approximately 0.47 kg
• Certifications: CE, UL, RoHS compliant, ensuring global applicability and environmental responsibility.

Applications

The Mitsubishi FX1S-20MR-ES/UL PLC is a versatile control solution perfect for a wide array of industrial and commercial applications, including:

• Compact Control Systems: Ideal for managing conveyors, pumps, and various lighting systems where space is a premium.
• Machine Tools and Packaging Equipment: Provides precise and reliable control for automated machinery, optimizing production efficiency.
• Industrial Signal Switching and Automation: Perfect for handling discrete signals and automating processes in complex industrial environments.
• OEM Panel and Machine Control: A compact and cost-effective solution for original equipment manufacturers to integrate into their products.
• Building Automation and HVAC Control Panels: Enables intelligent control of building systems, enhancing energy efficiency and occupant comfort.

Why Choose This Model?

• Flexible Voltage Handling: Its ability to support both AC and DC voltages over a wide range (24–240 V) significantly simplifies integration into diverse power systems without the need for additional power conditioning.
• Robust Relay Outputs: Equipped with durable relay outputs, this PLC can directly control both inductive and resistive loads, eliminating the need for external interface relays and reducing wiring complexity and cost.
• UL Listed for Peace of Mind: Being UL-listed, the FX1S-20MR-ES/UL meets stringent safety standards, making it compliant and highly desirable for installations in regulated markets, particularly North America.
• Compact Form Factor: Designed with a small footprint, it allows for significant space savings within control cabinets, which is crucial in modern industrial setups where cabinet space is often limited.
• Built-in Diagnostics: Integrated LED indicators provide immediate visual feedback on the status of inputs, outputs, and the CPU, making troubleshooting quick and straightforward, thereby minimizing downtime.
• Reliability and Performance: As a product from Mitsubishi Electric, it benefits from a legacy of engineering excellence, ensuring long-term reliability and consistent performance in demanding industrial conditions.

Order Now

Elevate your industrial control systems with the reliable and compact Mitsubishi FX1S-20MR-ES/UL PLC. This high-performing controller is readily available and ships worldwide, ensuring that your automation projects can proceed without delay. For further information, additional configuration options, or to explore our extensive range of Mitsubishi FX1N Series PLCs, please visit our website. Our full selection of Mitsubishi MELSEC Programmable Controllers is designed to provide reliable and efficient automation control solutions for all your industrial needs.
