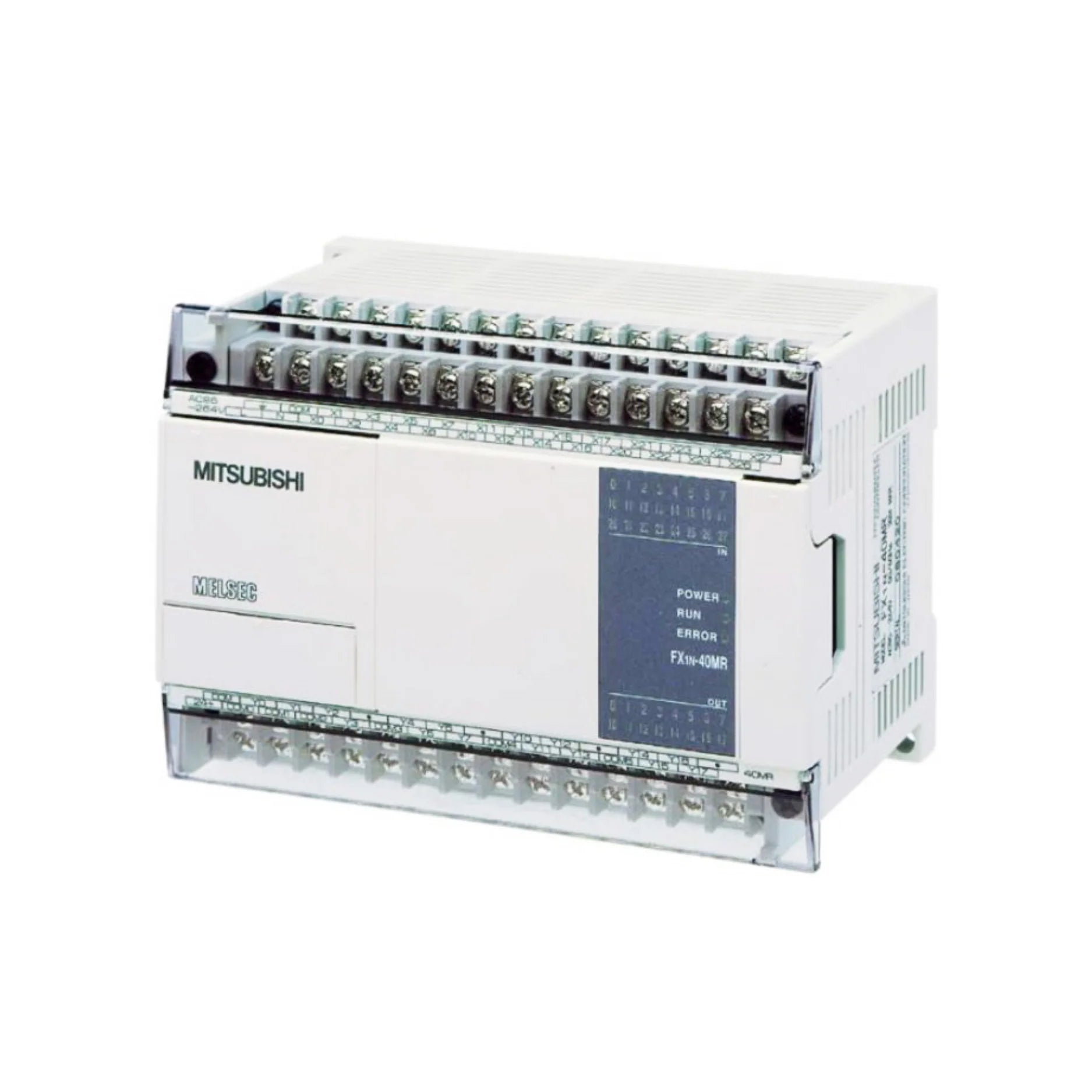

Mitsubishi FX1N-40MR-ES/UL

Overview

Elevate your industrial automation with the Mitsubishi FX1N-40MR-ES/UL, a highly versatile and compact PLC CPU from the esteemed FX1N series. Engineered for optimal performance and reliability, this controller boasts a generous 40 I/O points, comprising 24 digital inputs and 16 robust relay outputs, making it an ideal solution for a multitude of control tasks. Its exceptional compatibility with a broad voltage range of 24–240 V AC/DC ensures seamless integration into various power systems globally. The FX1N-40MR-ES/UL is meticulously designed to meet the rigorous demands of modern industrial and OEM applications, delivering consistent, reliable operation, backed by comprehensive safety certifications and a space-saving design perfect for compact control cabinets where efficiency and performance are paramount.

Key Features

• Series: FX1N (enhanced FX1 with I/O expansion capabilities)
• Power Supply: Adaptable 24–240 V AC/DC for global compatibility
• Total I/O Points: 40 (24 digital inputs, 16 relay outputs)
• Output Type: Durable Relay (Form C, NO/NC contacts) for versatile load control
• UL-Listed: Certified for stringent North American control panel standards, ensuring safety and compliance
• Built-In Capabilities: Advanced counters, timers, and arithmetic functions for sophisticated control logic
• Program Memory: Ample storage supporting up to 4,000 steps of programming
• Memory Backup: Non-volatile EEPROM ensuring program integrity even during power loss
• LED Diagnostics: Intuitive I/O and CPU indicators for real-time status monitoring and troubleshooting
• Mounting: Flexible DIN rail or panel mount options for easy installation

Technical Specifications

• Model Number: FX1N-40MR-ES/UL
• Digital Inputs: 24 (compatible with 24–240 V AC/DC, sink/source wiring)
• Digital Outputs: 16 relay outputs (rated at 2 A each, with an 8 A common maximum)
• Voltage Range: AC/DC with a ±10% tolerance for stable operation
• Processing Speed: Rapid approximate 0.5 μs per instruction for high-speed applications
• Program Capacity: Extensive capacity of up to 4,000 steps
• Ambient Temperature: Operational range from 0 °C to 55 °C
• Protection Class: IP10 (internal)
• Dimensions: Compact approx. 90 × 90 × 73 mm
• Weight: Lightweight at approximately 0.6 kg
• Certifications: Comprehensive certifications including CE, UL, cUL, and RoHS, ensuring global compliance and quality

Applications

The Mitsubishi FX1N-40MR-ES/UL is a powerhouse for various industrial applications, including but not limited to:

• Robust Machine and Conveyor Control: Providing precise and reliable automation for manufacturing and logistics.
• Switching Diverse Loads: Capable of switching loads up to 2 A, perfect for valves, industrial relays, and solenoids.
• OEM Equipment Integration: An ideal choice for original equipment manufacturers in packaging, assembly lines, and specialized machinery.
• Building Automation and HVAC Control: Enhancing efficiency and control in commercial and industrial building management systems.
• Small to Mid-Scale Industrial Systems: Delivering powerful and cost-effective automation for a wide range of industrial processes.

Why Choose This Model?

• Wide Voltage Support: Its ability to seamlessly handle a vast range of AC or DC inputs and outputs simplifies integration and reduces inventory.
• UL Certification: Essential UL certification makes it the preferred choice for installations within North America, guaranteeing adherence to safety standards.
• High I/O Count in a Compact Footprint: Achieve comprehensive control with 40 I/O points packed into a remarkably compact form factor, optimizing valuable cabinet space.
• Durable Relay Outputs: The robust relay outputs are perfectly suited for controlling a diverse array of load types, offering flexibility and reliability.
• Diagnostic LEDs: Built-in diagnostic LEDs simplify the monitoring process during setup and operation, facilitating quick identification and resolution of issues.
• Compact Form Factor: Designed to fit effortlessly into tight control panels, the compact size maximizes space utilization without compromising functionality.

Order Now

The highly sought-after Mitsubishi FX1N-40MR-ES/UL PLC CPU is readily available and ready to ship worldwide, ensuring your projects stay on schedule, no matter your location. For an expanded selection and in-depth technical particulars, we invite you to explore our comprehensive range of Mitsubishi FX1N Series PLCs. Each model in this series is meticulously engineered to deliver unparalleled reliability and efficiency in industrial automation, empowering your operations. For further options, you can also return to our main category for Mitsubishi MELSEC Programmable Controllers (PLC) to find the perfect control solution for your specific needs.
