Mitsubishi FR-HEL-H110K

Overview

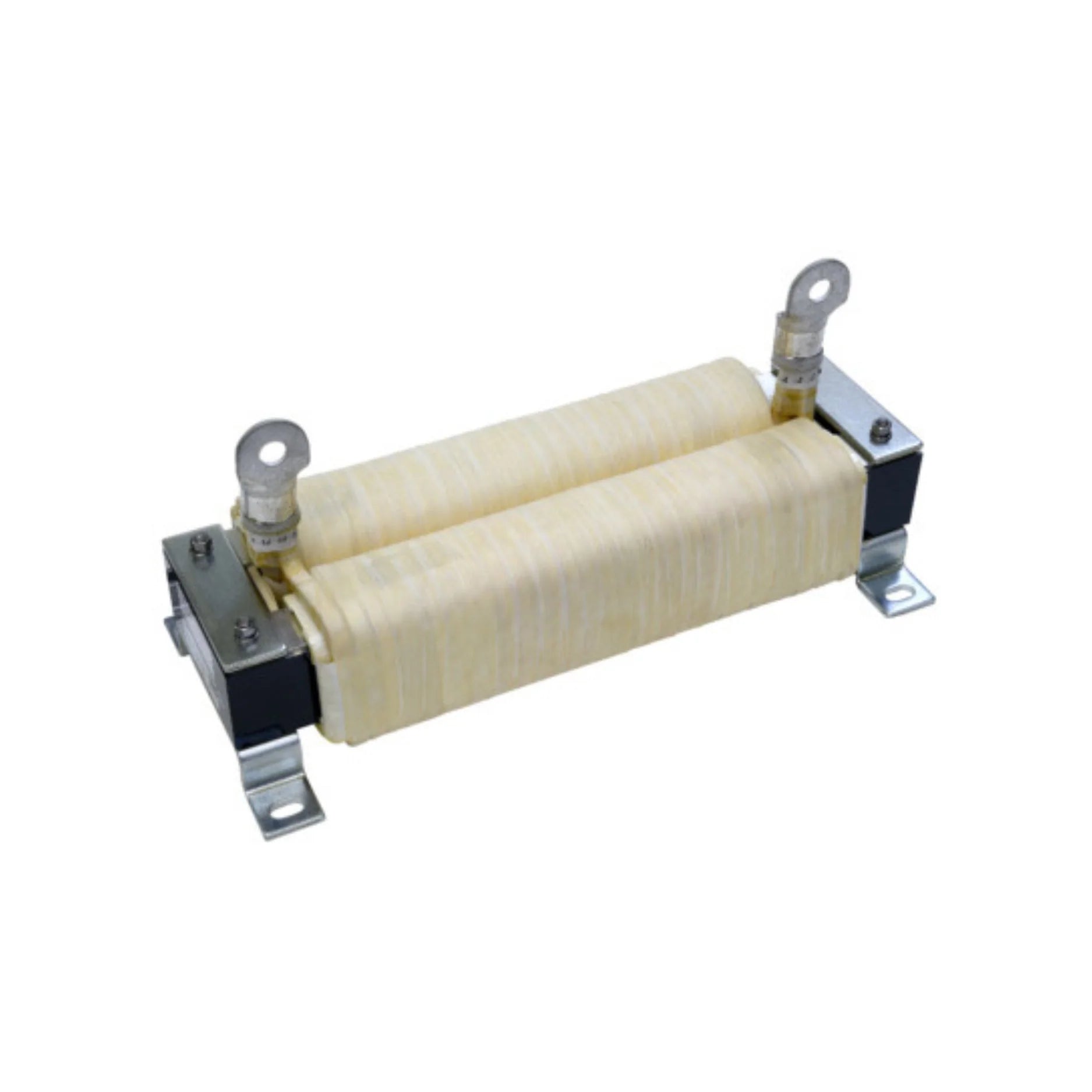

The Mitsubishi FR-HEL-H110K is an advanced 3-phase AC reactor meticulously engineered to optimize the performance and longevity of 400V class inverters. Specifically designed for seamless integration with Mitsubishi Electric's renowned FR-F800 and FR-E700 series drives, this 110kW rated line reactor serves as a critical component in mitigating harmonic distortion, enhancing input power factor, and safeguarding valuable inverter and motor assets from damaging current surges. Its robust construction and DIN-compatible design ensure reliable operation in even the most demanding industrial environments, providing a foundation for stable and efficient power utilization.

Key Features

• High-Performance Rating: Delivers optimal operation for systems up to 110kW.
• Voltage Compatibility: Perfectly suited for 3-phase 400V class inverter applications.
• Seamless Integration: Specifically designed for compatibility with Mitsubishi Electric FR-F800 and FR-E700 series drives.
• Superior Harmonic Mitigation: Significantly reduces Total Harmonic Distortion (THD), ensuring cleaner power.
• Enhanced Power Factor: Improves input power factor, leading to greater energy efficiency and reduced electrical costs.
• Comprehensive System Protection: Acts as a crucial protective barrier for both the inverter and motor against harmful current spikes and surges.
• Flexible Mounting Options: Designed for versatile installation, accommodating both DIN rail and direct panel mounting.
• Durable Construction: Features a long-life, heat-resistant build, guaranteeing sustained performance and reliability in challenging industrial settings.

Technical Specifications

• Catalog Number: FR-HEL-H110K
• Rated Power: 110kW
• Input Voltage: 3-phase 400V class
• Frequency: 50/60Hz
• Inductance: Optimized inductance for superior inverter protection and harmonic suppression.
• Mounting: Designed for flexible panel or base mounting.
• Ambient Temperature: Operable within a wide range of –10°C to +45°C.
• Protection: Open type construction, necessitating installation within an appropriate enclosure for optimal safety and performance.
• Cooling: Efficiently cooled via natural convection, minimizing maintenance needs.
• Weight: Approximately 30–35kg (note: actual weight may vary slightly based on specific version).

Applications

• AC Drive Input Protection: Provides essential protection for the input side of various AC drives, preventing damage and extending operational life.
• Harmonic Filtering for Motor Drives: Effectively filters out harmful harmonics generated by motor drives, ensuring smooth and efficient motor operation.
• Power Factor Correction in Industrial Systems: A key component in improving overall power factor, contributing to energy savings and compliance.
• Extended Equipment Life: Contributes to significantly extending the operational lifespan of both motors and inverters by reducing electrical stress.
• Versatile Industrial Use: Ideal for a wide array of industrial applications, including HVAC systems, conveyor belts, pumps, and industrial fans.

Why Choose This Model?

The Mitsubishi FR-HEL-H110K stands out as a premier choice for industrial applications due to its specialized design and proven performance. Engineered from the ground up for harmonious integration with Mitsubishi Electric drive systems, it assures unparalleled compatibility and operational synergy. By significantly enhancing the performance of your inverters and motors, this AC reactor not only optimizes efficiency but also plays a crucial role in helping your systems achieve and maintain stringent harmonic compliance standards. With Mitsubishi Electric's renowned legacy of reliability and precision engineering, the FR-HEL-H110K offers a dependable solution that is both easy to integrate into existing control panels and built to last, underscoring its long-term value.

Order Now

Secure the operational integrity and efficiency of your industrial power systems with the Mitsubishi FR-HEL-H110K AC reactor. This essential component is readily available and part of our worldwide shipping program, ensuring that your vital operations can benefit from Mitsubishi Electric's advanced technology no matter your location. Enhance your system's protection, performance, and efficiency today.
